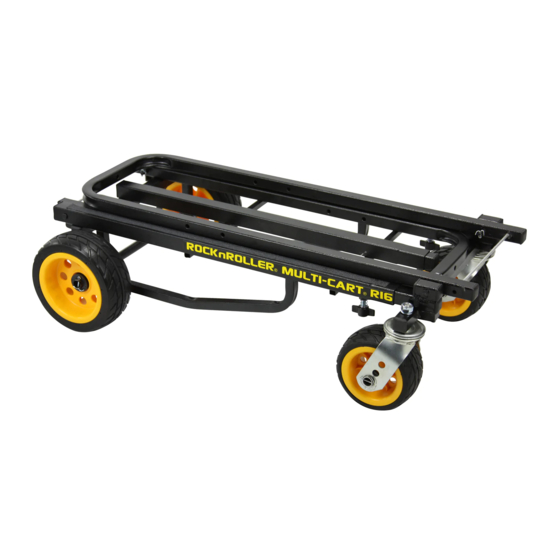

R16RT Model Specifications
Length (Compact)
34"
Length (Extended)
52"
Width (Frame Bed)
14"
Width (Rear)
20"
Height (Folded)
10"
Height (Unfolded)
40.5"
Front Casters
6" x 3"
Rear Wheels
8" x 3"
Weight
35 lbs.
Load Capacity
600 lbs.
1. Installing Rear Wheels
Gently slide wheel over axle as shown. Do not force
wheels onto axle. It is recommended to lubricate axles
with light grease before installing. Install cotter pins and
bend ends outward.
You r Ro ckn Ro ll er M u l ti- C ar t shippi ng b ox should
c on ta in a fra me an d the fol l ow ing p ar t s:
2 x
½" lock nuts
2 x
½" 20 mm flat washer
2 x
1⁄₈" x 1 ¼" cotter pins
2 x
20 mm flat washer
2 x
8"x 3" (200 mm x 75 mm) wheels
2 x
6"x 3" (150 mm x 75 mm) stem casters
1 x
Flat Wrench
1 x
Assembly/instruction sheet
Recommen de d Tools For A s se mbl y
Channel Lock Pliers
2. Installing Front Swivel Casters
Carefully insert caster stem into receptor tube and line
up caster stem holes with the receptor tube holes. Stem
should fit very snugly in receptor tube. Install cotter pins
and bend ends outward.
(not included)
Advertisement
Table of Contents
Related Manuals for RockNRoller Multi-Cart R16RT
Summary of Contents for RockNRoller Multi-Cart R16RT

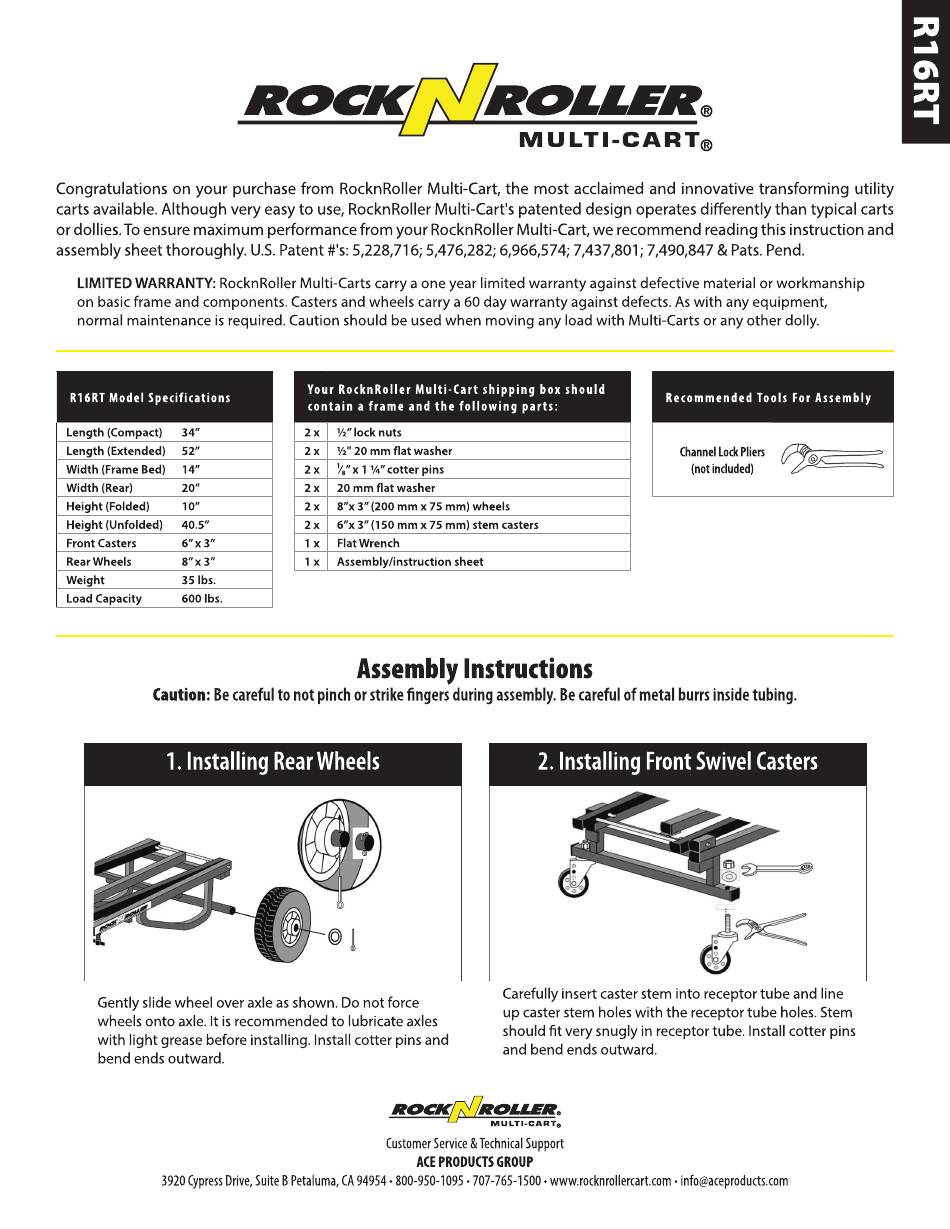

- Page 1 You r Ro ckn Ro ll er M u l ti- C ar t shippi ng b ox should R16RT Model Specifications Recommen de d Tools For A s se mbl y c on ta in a fra me an d the fol l ow ing p ar t s: Length (Compact) 34”...
- Page 2 Extending Frame Raising Foldable Sides Loosen wingbolts 1/4 turn. Step on Firmly press down on release cable rear axle and push in extension while raising other end of foldable stop button. Pull up on frame as side as shown. shown until stop button engages. Repeat with other side.
