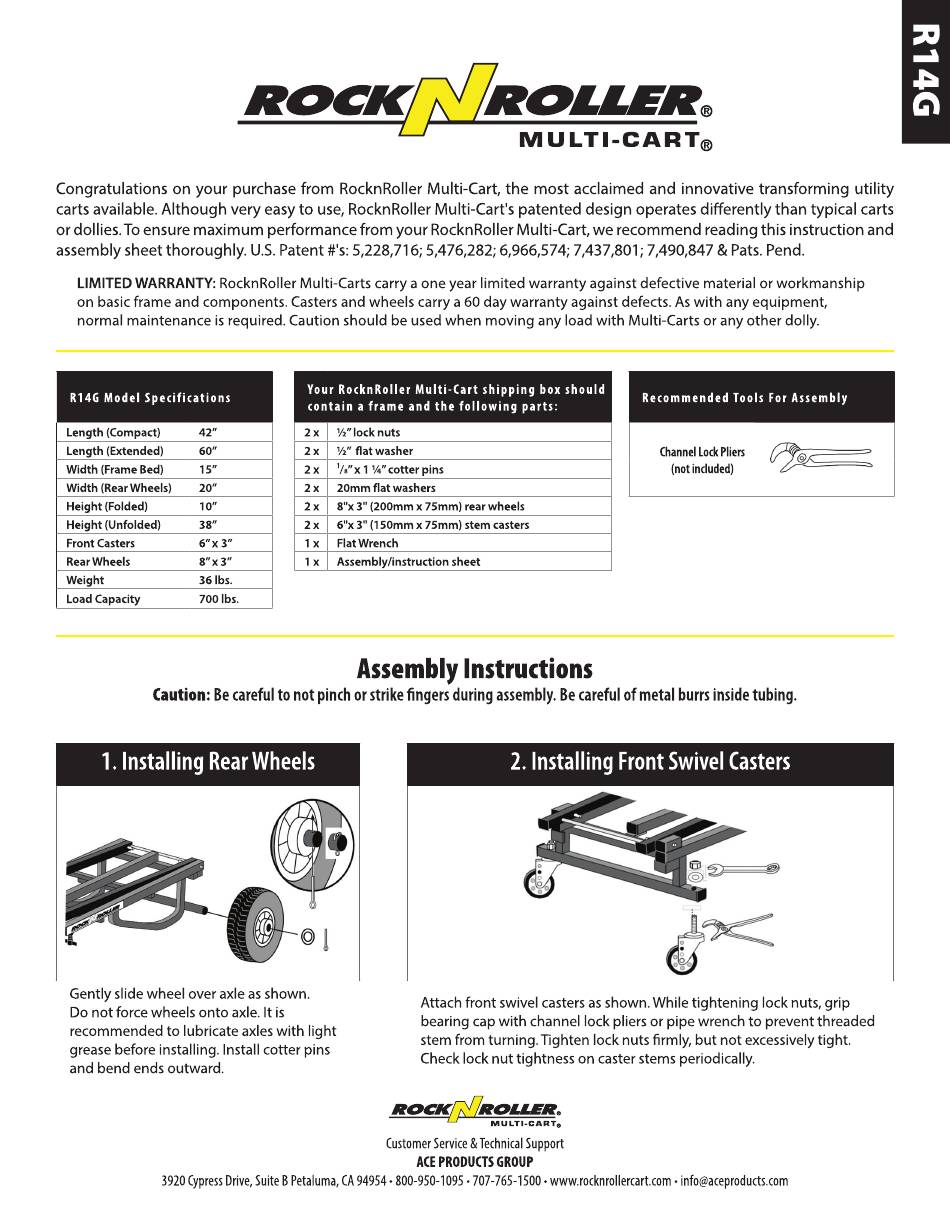

RockNRoller Multi-Cart R14G Quick Start Manual

R 1 4G Mod e l S p e c if ic at i ons
Length (Compact) 42"
Length (Extended) 60"
Width (Frame Bed) 15"
Width (Rear Wheels) 20"
Height (Folded) 10"
Height (Unfolded) 38"
Front Casters 6" x 3"
Rear Wheels 8" x 3"
Weight 36 lbs.
Load Capacity 700 lbs.

1. Installing Rear Wheels

Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.
Yo ur Ro cknRo l ler Mu l ti- C ar t sh ip pin g b ox s hould
co nta i n a fra me an d the fol l ow in g pa r t s:
2 x ½" lock nuts
2 x ½" flat washer
2 x 1/8" x 1 ¼" cotter pins
2 x 20mm flat washers
2 x 8"x 3" (200mm x 75mm) rear wheels
2 x 6"x 3" (150mm x 75mm) stem casters
1 x Flat Wrench
1 x Assembly/instruction sheet
Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nuts firmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.
Recommen de d Tools For A s s e mbl y
Channel Lock Pliers
(not included)

2. Installing Front Swivel Casters
