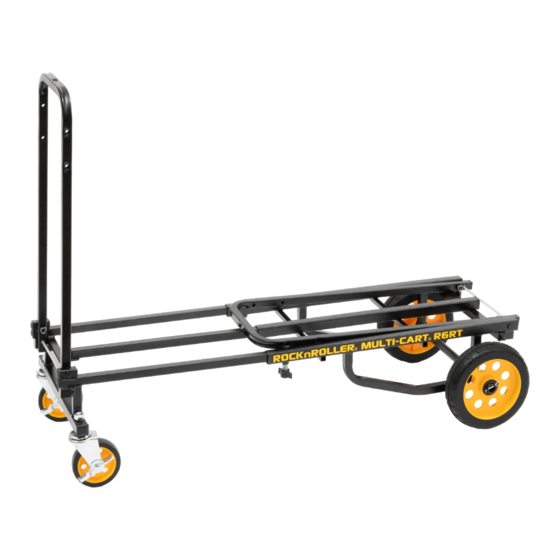

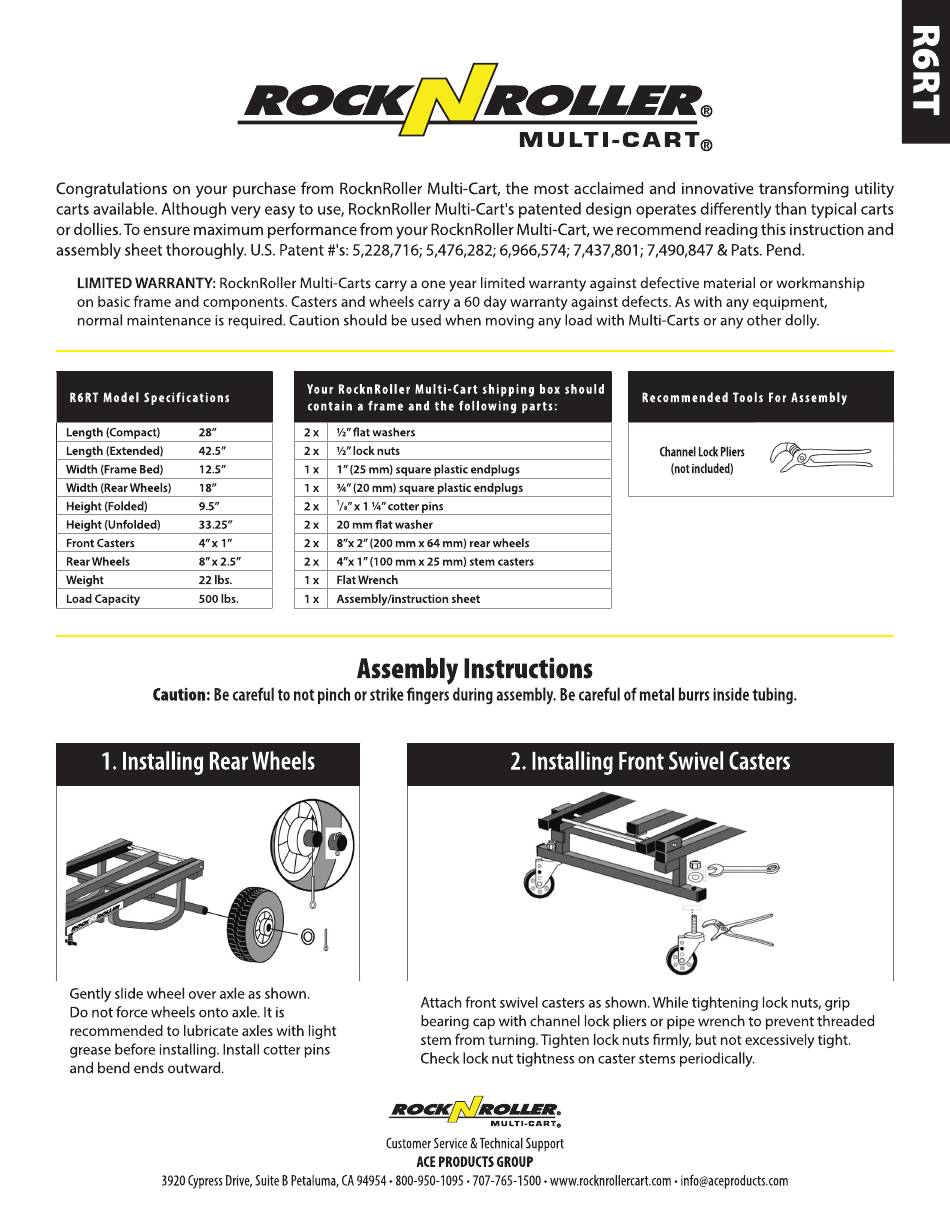

RockNRoller Multi-Cart R6RT Manual

R 6 RT Mode l S p e c i fi c at i ons
Length (Compact) 28"
Length (Extended) 42.5"
Width (Frame Bed) 12.5"
Width (Rear Wheels) 18"
Height (Folded) 9.5"
Height (Unfolded) 33.25"
Front Casters 4" x 1"
Rear Wheels 8" x 2.5"
Weight 22 lbs.
Load Capacity 500 lbs.

1. Installing Rear Wheels

Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.
Yo ur Roc kn Rol l er M ul t i- C ar t shippi ng b ox should
co nta i n a fra m e and th e fo l l owing p ar t s:
2 x ½" flat washers
2 x ½" lock nuts
1 x 1" (25 mm) square plastic endplugs
1 x ¾" (20 mm) square plastic endplugs
2 x 1/8" x 1 ¼" cotter pins
2 x 20 mm flat washer
2 x 8"x 2" (200 mm x 64 mm) rear wheels
2 x 4"x 1" (100 mm x 25 mm) stem casters
1 x Flat Wrench
1 x Assembly/instruction sheet
Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nuts firmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.
Re comme nd ed Tools For A s s e mb l y
Channel Lock Pliers
(not included)

2. Installing Front Swivel Casters
