R12RT Model Specifications
Length (Compact)
34"
Length (Extended)
52"
Width (Frame Bed)
13.5"
Width (Rear)
20"
Height (Folded)
12"
Height (Unfolded)
41.5"
Front Casters
8" x2.5"
Rear Wheels
10" x 3"
Weight
33 lbs.
Load Capacity
500 lbs.

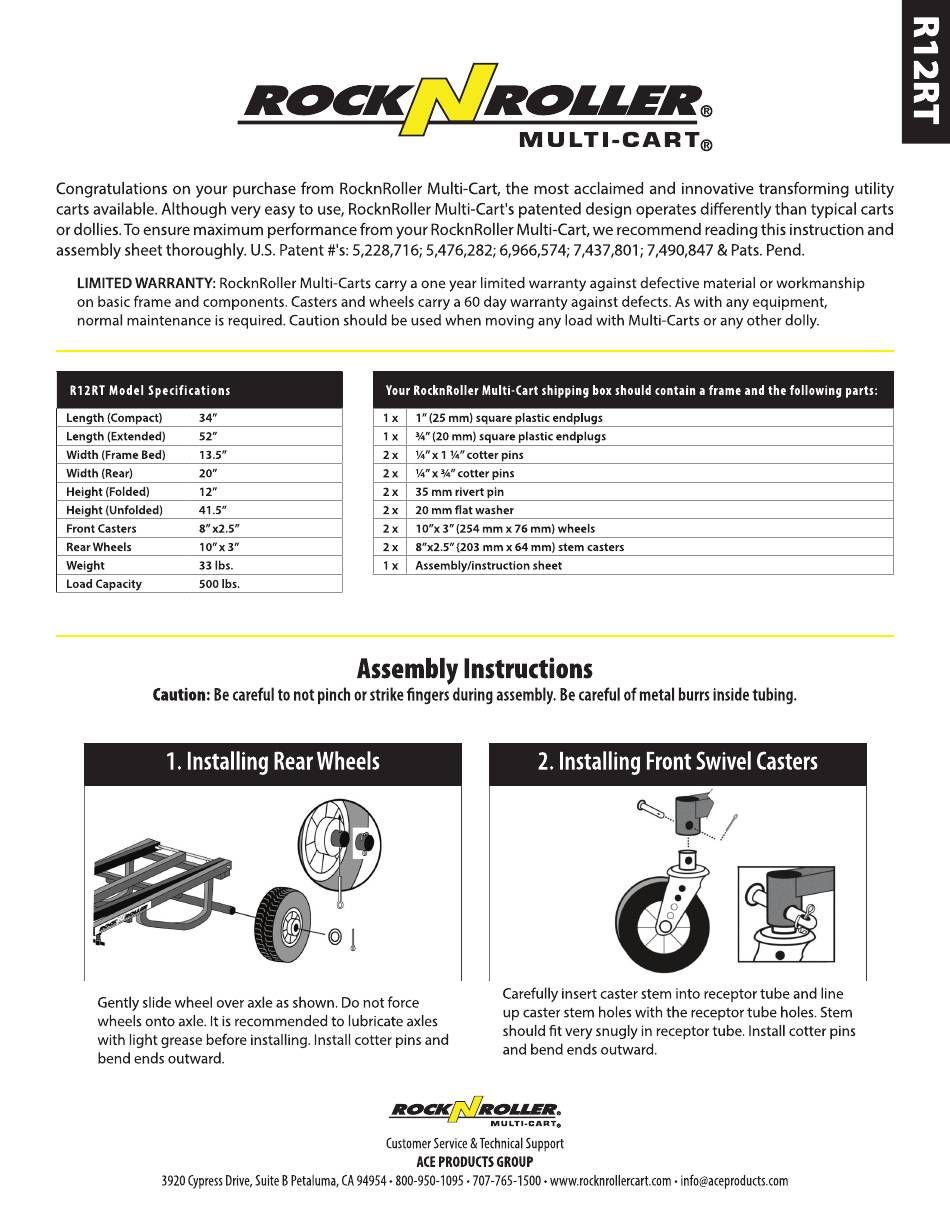

1. Installing Rear Wheels
Gently slide wheel over axle as shown. Do not force
wheels onto axle. It is recommended to lubricate axles
with light grease before installing. Install cotter pins and
bend ends outward.
Your RocknRoller Multi-Cart shipping box should contain a frame and the following parts:
1 x
1" (25 mm) square plastic endplugs
1 x
¾" (20 mm) square plastic endplugs
2 x
¼" x 1 ¼" cotter pins
2 x
¼" x ¾" cotter pins
2 x
35 mm rivert pin
2 x
20 mm flat washer
2 x
10"x 3" (254 mm x 76 mm) wheels
2 x
8"x2.5" {203 mm x 64 mm) stem casters
1 x
Assembly/instruction sheet
2. Installing Front Swivel Casters
Carefully insert caster stem into receptor tube and line
up caster stem holes with the receptor tube holes. Stem
should fit very snugly in receptor tube. Install cotter pins
and bend ends outward.
