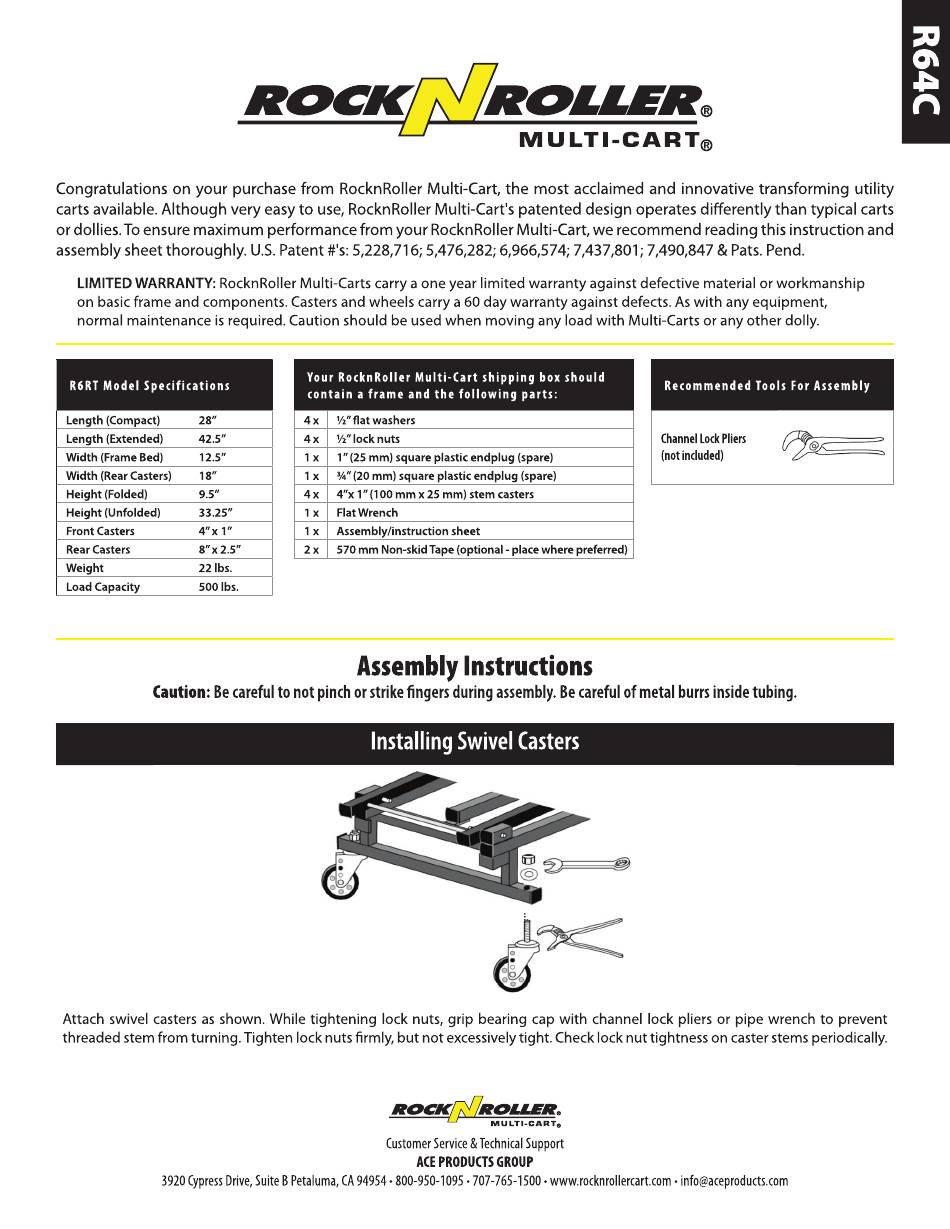

R 6 RT Mode l S p e c i fi c at i ons
Length (Compact)
28"
Length (Extended)
42.5"
Width (Frame Bed)
12.5"
Width (Rear Casters)
18"
Height (Folded)
9.5"
Height (Unfolded)
33.25"
Front Casters
4" x 1"
Rear Casters
8" x 2.5"
Weight
22 lbs.
Load Capacity
500 lbs.
Attach swivel casters as shown. While tightening lock nuts, grip bearing cap with channel lock pliers or pipe wrench to prevent
threaded stem from turning. Tighten lock nuts firmly, but not excessively tight. Check lock nut tightness on caster stems periodically.
Yo ur Roc kn Rol l er M ul t i- C ar t shippi ng b ox should
co nta i n a fra m e and th e fo l l owing p ar t s:
4 x
½" flat washers
4 x
½" lock nuts
1 x
1" (25 mm) square plastic endplug (spare)
1 x
¾" (20 mm) square plastic endplug (spare)
4 x
4"x 1" (100 mm x 25 mm) stem casters
1 x
Flat Wrench
1 x
Assembly/instruction sheet
2 x
570 mm Non-skid Tape (optional - place where preferred)
Installing Swivel Casters
Re comme nd ed Tools For A s s e mbl y
Channel Lock Pliers
(not included)
Advertisement
Table of Contents
Related Manuals for RockNRoller Multi-Cart R64C
Summary of Contents for RockNRoller Multi-Cart R64C
- Page 1 Yo ur Roc kn Rol l er M ul t i- C ar t shippi ng b ox should R 6 RT Mode l S p e c i fi c at i ons Re comme nd ed Tools For A s s e mbl y co nta i n a fra m e and th e fo l l owing p ar t s: Length (Compact) 28”...
- Page 2 Extending Frame Raising Foldable Sides Loosen wingbolts 1/4 turn. Step on Firmly press down on release cable rear axle and push in extension while raising other end of foldable stop button. Pull up on frame as side as shown. shown until stop button engages. Repeat with other side.
