5 ghz airmax ac bridge with 400 mm rf isolated reflector

Advertisement

Quick Links

5 GHz airMAX
ac Bridge with
®
400 mm RF Isolated Reflector
Model: PBE-5AC-400-ISO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0810354025402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ubiquiti 0810354025402

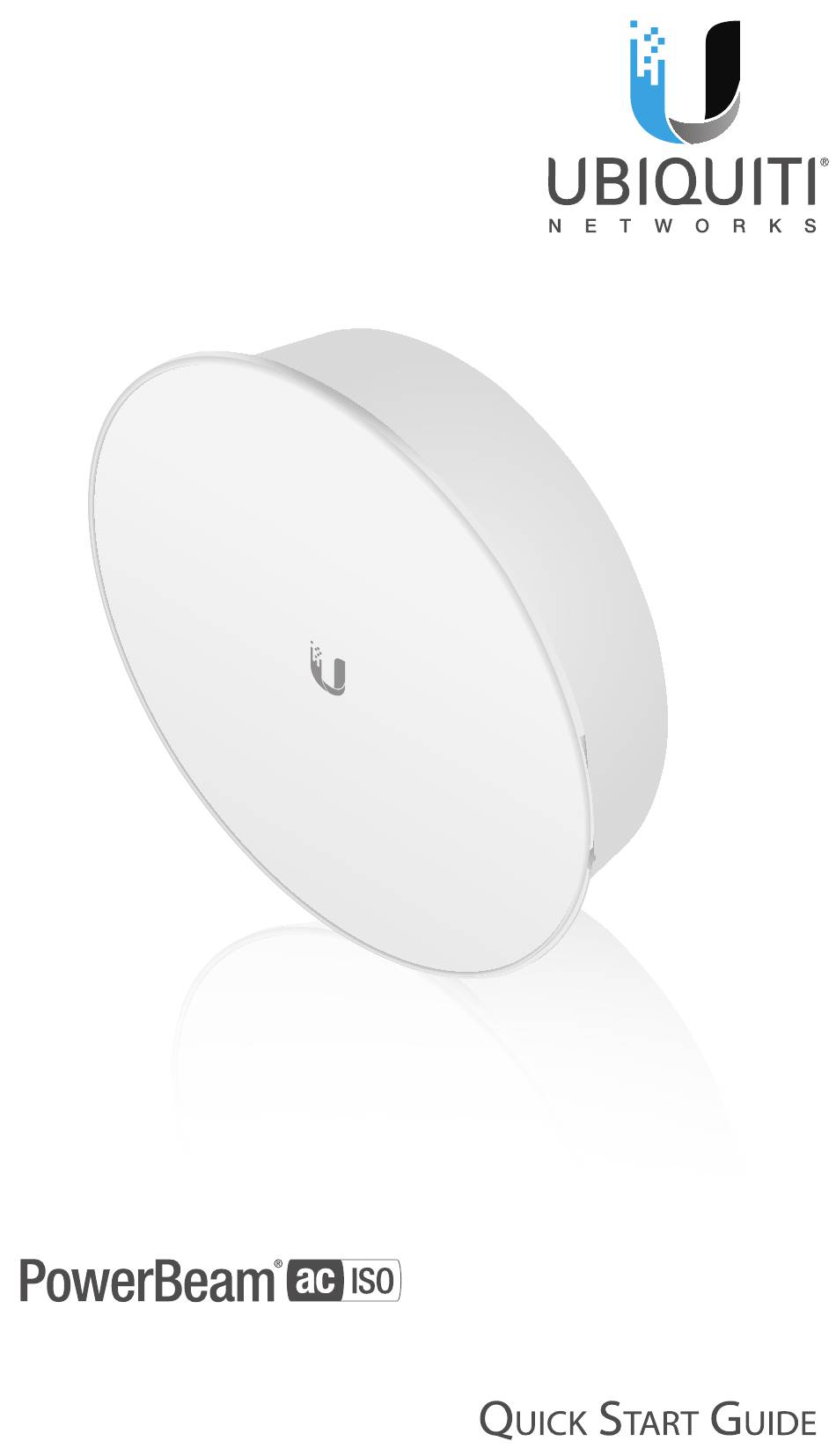

  • Page 1 5 GHz airMAX ac Bridge with ® 400 mm RF Isolated Reflector Model: PBE-5AC-400-ISO...
  • Page 2: Package Contents

    * The PBE-5AC-400-ISO Antenna Feed has a thin gray ring around the center of the cap to differentiate it from the PBE-5AC-300-ISO Antenna Feed. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™...
  • Page 3: Hardware Overview

    Hardware Overview Bottom View Radome Antenna Feed Technology Ethernet Port Reset Button Release Button Reflector Mounting Bracket Alignment Pins Rear Housing Release Button Slot Cable Door...
  • Page 4 Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the PowerBeam is powered on. Alternatively, the PowerBeam may be reset remotely via a Reset button located on the bottom of the Gigabit PoE adapter.
  • Page 5: Application Examples

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable...
  • Page 6: Installation

    Installation 1. Align and insert the tabs of the Mounting Bracket into the slots of the Reflector. Rotate the Mounting Bracket counterclockwise until the alignment holes in the dish and bracket align with each other. 2. Remove the Antenna Feed from the Rear Housing: a.
  • Page 7 3. For added support in high‑wind environments, insert four Screws with Washers into the holes in the Reflector and Mounting Bracket, and secure each screw with a Washer and a Nylon Insert Lock Nut. Mounting Bracket Reflector 4. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Mounting Bracket.
  • Page 8 5. View the Reflector from the front. Ensure that the three hooks (indicated below) of the Rear Housing are fully engaged with the inner wall of the Reflector and locked into place. IMPORTANT: Before proceeding, lightly pull the Rear Housing to confirm that it is locked into place. 6.
  • Page 9 7. Connect an Ethernet cable to the Ethernet Port of the Antenna Feed. Then re‑attach the Cable Door to the Rear Housing. 8. Attach the Pole Clamp to the Adjustment Bracket. a. Hold the Adjustment Bracket with its clamps facing you and the Elevation Indicators towards the top.
  • Page 10 9. Mount the Adjustment Bracket on the pole and secure it. a. Place the Adjustment Bracket against the pole. b. Slide the slot of the Pole Clamp over the adjacent Carriage Bolt. c. Tighten the Flange Nuts of the bolts to 25 N · m to secure the Adjustment Bracket to the pole.
  • Page 11 10. Mount the Reflector onto the Adjustment Bracket by guiding the Pivot Pins on the inside of the Adjustment Bracket into the Mounting Bracket slots. Mounting Bracket Slot Pivot Pin (one on each side of Adjustment Bracket)
  • Page 12 11. Secure the Adjustment Bracket to the Mounting Bracket using the four Hex Bolts with Washers.
  • Page 13 12. Align the Notch on the Reflector with the Arrow at the top of the Radome. Guide the Radome’s side and top tabs over the Reflector rim and slide the Radome down onto the Reflector. Arrow Radome Top Tab Notch Radome Side Tab Radome...
  • Page 14 13. Snap the bottom three tabs of the Radome over the Reflector rim. Bottom Tabs 14. Adjust the elevation angle. a. Loosen the four Hex Bolts on both sides of the antenna. b. Pivot the antenna until the Elevation Indicator shows the desired elevation angle (‑20°...
  • Page 15 Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to Connecting to the PoE Adapter. • Using a separate PoE switch: Connect the Ethernet cable from the device’s Ethernet port to a PoE-enabled Ethernet port on the switch.
  • Page 16 For additional details on the airOS Configuration Interface, refer to the User Guide available at www.ubnt.com/download/airmax You can also manage your device using the Ubiquiti® Network Management System. Setup using the UNMS app requires ™...
  • Page 17: Installer Compliance Responsibility

    Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in...
  • Page 18: Specifications

    Specifications PBE‑5AC‑400‑ISO Dimensions (with Radome) 459 x 459 x 261 mm (18.07 x 18.07 x 10.28") Weight (Mount Included) 3.22 kg (7.10 lb) Gain 25 dBi Networking Interface (1) 10/100/1000 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Max. Power Consumption 8.5W Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
  • Page 19: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 20: Limited Warranty

    (IX) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or has not been received by Ubiquiti within 30 days of issuance of the RMA.
  • Page 21: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 22 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
  • Page 23 ISED Canada CAN ICES‑3(A)/NMB‑3(A) This device complies with ISED Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A‑PBE5AC) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type...
  • Page 24: Australia And New Zealand

    Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.
  • Page 25 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 26 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 27: Declaration Of Conformity

    Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að PBE-5AC-400-ISO er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...
  • Page 28: Online Resources

    New York, NY 10017 ©2015‑2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, InnerFeed, PowerBeam, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
