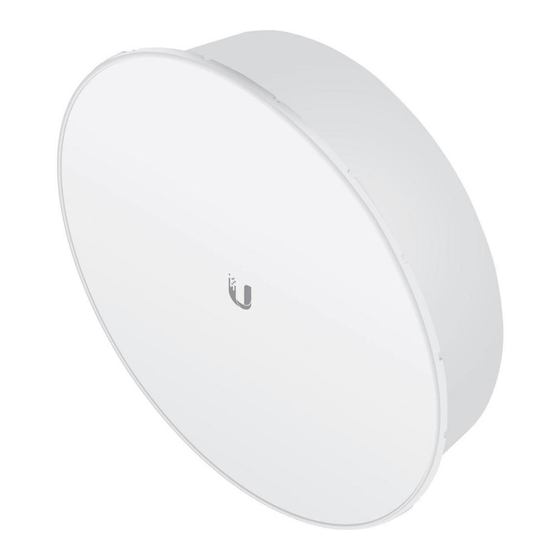

PBE-5AC-400-ISO Quick Start Guide
PBE-5AC-400-ISO Quick Start Guide
Package Contents
Reflector
Radome
Antenna Feed*
Rear Housing
Mounting Bracket
Adjustment Bracket
Hex Bolts with Washers (Qty. 4)
Pole Clamp
Carriage Bolts (Qty. 2)
Flange Nuts (Qty. 2)
Screws with Washers (Qty. 4)
Washers (Qty. 4)
https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerBeam PBE-5AC-400-ISO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti PowerBeam PBE-5AC-400-ISO

Summary of Contents for Ubiquiti PowerBeam PBE-5AC-400-ISO

  • Page 1 PBE-5AC-400-ISO Quick Start Guide PBE-5AC-400-ISO Quick Start Guide Package Contents Reflector Radome Antenna Feed* Rear Housing Mounting Bracket Adjustment Bracket Hex Bolts with Washers (Qty. 4) Pole Clamp Carriage Bolts (Qty. 2) Flange Nuts (Qty. 2) Screws with Washers (Qty. 4) Washers (Qty.

  • Page 2: Installation Requirements

    Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable...
  • Page 3 PBE-5AC-400-ISO Quick Start Guide Ethernet This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on.

  • Page 4: Application Examples

    PBE-5AC-400-ISO Quick Start Guide Signal In airOS®, you can modify the threshold value for the wireless signal strength LEDs on the Wireless tab under Signal LED Thresholds. Each LED will light when the wireless signal strength is equal to or greater than the LED’s threshold value. The default threshold values for these LEDs are shown below: Ethernet The Ethernet LED will light steady blue when an active Ethernet connection is made and...

  • Page 5: Installation

    PBE-5AC-400-ISO Quick Start Guide The PowerBeam mounted outdoors without the Reflector installed provides outdoor-to- indoor coverage using the 3 dBi Antenna Feed only. Installation https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 6 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 7 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 8 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 9 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 10 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 11 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 12 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 13 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 14 PBE-5AC-400-ISO Quick Start Guide https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
  • Page 15 PBE-5AC-400-ISO Quick Start Guide 14. Connect the power using: included Gigabit PoE Adapter PoE switch WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter. 2.
  • Page 16 PBE-5AC-400-ISO Quick Start Guide Mounting the PoE Adapter (Optional) 1. Remove the PoE Mounting Bracket from the adapter, place the bracket at the desired location, and mark the two holes. 2. Pre-drill the holes if necessary, and secure the bracket using two fasteners (not included). 3.
  • Page 17 The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For details, refer to the User Guide available at ui.com/download/airmax-ac You can also manage your device using the Ubiquiti® Network Management System. Setup https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...

  • Page 18: Installer Compliance Responsibility

    PBE-5AC-400-ISO Quick Start Guide using the UNMS™ app requires the U-Installer, sold separately. Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. Antenna Select your antenna from the list.

  • Page 19: Specifications

    PBE-5AC-400-ISO Quick Start Guide Dish 5 GHz 25 dBi Specifications PBE-5AC-400-ISO Dimensions (with Radome) 459 x 459 x 261 mm (18.07 x 18.07 x 10.28") Weight (Mount Included) 3.22 kg (7.10 lb) Gain 25 dBi Networking Interface (1) 10/100/1000 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Max.

  • Page 20: Electrical Safety Information

    PBE-5AC-400-ISO Quick Start Guide WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1.
  • Page 21 PBE-5AC-400-ISO Quick Start Guide uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

  • Page 22: Australia And New Zealand

    PBE-5AC-400-ISO Quick Start Guide Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 137 cm entre l’élément rayonnant et vous. Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé...

  • Page 23: Weee Compliance Statement

    PBE-5AC-400-ISO Quick Start Guide WEEE Compliance Statement Declaration of Conformity Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/PBE-5AC-400-ISO/PBE-5AC-400-ISO_EN.html[9/30/2019 3:34:09 PM]...
