KVSP EU Owner's Manual

KV601SPEU, KV650SPEU, TKV650SPHEU, KV601SPFBEU, KV650SPHFBEU,

ON BOARD

OPTIONAL

VACUUM HOSE

FELT/MESH

KIT

DEBRIS BAG

4" x 7.5' (102mm

For use in

x 2.13m)

leaves and

For vacuuming in

grass in dusty

hard to reach

conditions.

areas.

P/N 891126

FELT BAG

P/N 891132

MESH BAG

P/N 891125

IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

KVSP EU

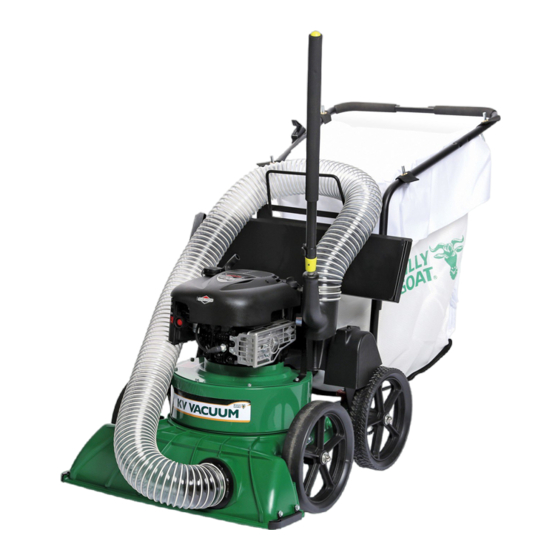

Image shown with optional accessories

Owner's Manual

TKV650SPHFBEU

Accessories

NOZZLE

CASTER KIT

WEAR

GUARD KIT

For use in

To allow for

increasing the

easy rolling and

life of your

maneuverability

nozzle by

on smooth

protecting it

surfaces.

from damage

P/N 891127

P/N 891128

SHREDDER

KV LINER KIT

KIT

Shreds leaves,

Increases the

reducing total

life of the

volume.

housing by

protecting it from

damage.

P/N 891153

P/N 891134

PROTECTIVE

COVER

Protects the

machine from

the environment

when not in use.

P/N 891137

891506_A_HI

Table of Contents

Need help?

Do you have a question about the KV650SPEU and is the answer not in the manual?

Questions and answers

Summary of Contents for Billy Goat KV650SPEU

Page 1 KVSP EU Owner’s Manual Image shown with optional accessories Owner's Manual KV601SPEU, KV650SPEU, TKV650SPHEU, KV601SPFBEU, KV650SPHFBEU, TKV650SPHFBEU Accessories ON BOARD OPTIONAL NOZZLE SHREDDER PROTECTIVE CASTER KIT KV LINER KIT VACUUM HOSE FELT/MESH WEAR COVER DEBRIS BAG GUARD KIT 4" x 7.5' (102mm...
Page 2: Table Of Contents
KVSP EU Owner’s Manual CONTENTS SPECIFICATIONS AND SAFETY INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY ASSEMBLY OPERATION MAINTENANCE 9-11 TROUBLESHOOTING ILLUSTRATED PARTS & PART LISTS 13-15 Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits. KVSP EU 891506_A_HI...
Page 3: Specifications And Safety
KVSP EU Owner’s Manual SPECIFICATIONS KV601SPEU KV650SPHEU TKV650SPHEU KV601SPFBEU KV650SPHFBEU TKV650SPHFBEU Engine HP 4.95 (3.69 kW) 6.5 (4.85kW) 6.5 (4.85kW) 4.95 (3.69 kW) 6.5 (4.85kW) 6.5 (4.85kW) Engine type Briggs and HONDA HONDA Briggs and HONDA HONDA Stratton Stratton Engine model 123P020062H5 GSV190LN1L GSV190LN1L...
Page 4: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT KV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated Parts List.
Page 5: Packing Checklist & Assembly
KVSP EU Owner’s Manual PACKING CHECKLIST Your Billy Goat KV Vacuum is shipped from the factory in one carton, completely assembled except for the upper handle, debris bag, and bag quick disconnect. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box, the Handle Assembly is attached by cables and folded over.
Page 6: Assembly
KVSP EU Owner’s Manual ASSEMBLY NOTE: Items in ( ) can be referenced in the Parts Illustration and Parts List on pages 13-15. 1. ASSEMBLE the upper handle (item 11), with the hardware from the parts bag (items 50, 49, and 51) to the lower handle (item 10).
Page 7: Operation
KVSP EU Owner’s Manual OPERATION VACUUMING OPERATION VACUUM NOZZLE HEIGHT ADJUSTMENT: Nozzle height is raised and lowered by rotating the red knob near the left rear wheel. Nozzle height should be adjusted based on the task being performed (see Fig. 4). FOR MAXIMUM PICKUP: Adjust nozzle close to debris, but without blocking airflow into the nozzle.
Page 8 KVSP EU Owner’s Manual MULCH Wood chips made from branches in your own yard make excellent mulch. A thick blanket of wood chips around plants and flowers to keeps weeds out and moisture in. CHIPPER OPERATION (TKV only) Your TKV chipper is designed to process tree branches and limbs up to 2" (50.8mm) diameter (see Fig.
Page 9: Maintenance
8. Lift impeller upward. If impeller slides freely, proceed to step 10. 9. If the impeller does not loosen, obtain a 3/4-16x3” (Billy Goat P/N 440192) or longer bolt. Thread bolt by hand into nut until bolt rests against the shaft. Tighten the bolt slowly, which will pull the impeller away from the shaft, remove impeller from shaft.
Page 10 8. Lift impeller upward. If impeller slides freely, proceed to (step 10.) 9. If the impeller does not loosen, obtain a 3/4-16x3” (Billy Goat P/N 440192) or longer bolt. Thread bolt by hand into nut until the bolt rests against the shaft. Tighten the bolt slowly, which will pull the impeller away from the shaft. Remove the impeller from the shaft.
Page 11 ® required. If reassembly requires a different quantity of shim washers, a Billy Goat shim washer must be used (P/N 890130 or P/N 890131, whichever is required).
Page 12: Troubleshooting
KVSP EU Owner’s Manual TROUBLESHOOTING Problem Possible Cause Solution Abnormal vibration Loose or out of balance impeller or loose Check impeller and replace if required. engine. Check engine. Will not vacuum or has poor Dirty debris bag. Hose kit cap missing. Clean debris bag.
Page 13: Illustrated Parts & Part Lists
KVSP EU Owner’s Manual KVSP EU 891506_A_HI...
Page 14 KVSP EU Owner’s Manual KVSP/TKVSP PARTS LIST KV601SPEU/KV601S ITEM KV650SPHEU/KV650SPH TKV650SPHEU/TKV650SP Description PFBEU PART FBEU PART NUMBER HFBEU PART NUMBER NUMBER MAIN FRAME HOUSING KV 891100-S 891100-S 891100-S NOZZLE ASSEMBLY TKV 891110-S 891110-S 891110-S WA AXLE FRONT KV 2.0 891165 891165 891165 PLATE TOP WA KVSP...
Page 15 KVSP EU Owner’s Manual KV601SPEU/KV601SP KV650SPHEU/KV650SPH TKV650SPHEU/TKV650SPH FBEU PART NUMBER FBEU PART NUMBER FBEU PART NUMBER SCREWCAP 1/4 - 20 x 5/8 HWH 890359 890359 890359 BOLT IDLER 3/8-16 X 1 1/2 800888 800888 800888 WASHER 1/4" SAE ZP 8172007 8172007 8172007 WASHER 5/16 FLATWASHER Z/P...
