Genelec 8020DPM Quick Setup Manual page 5

ACOUSTIC
AXIS

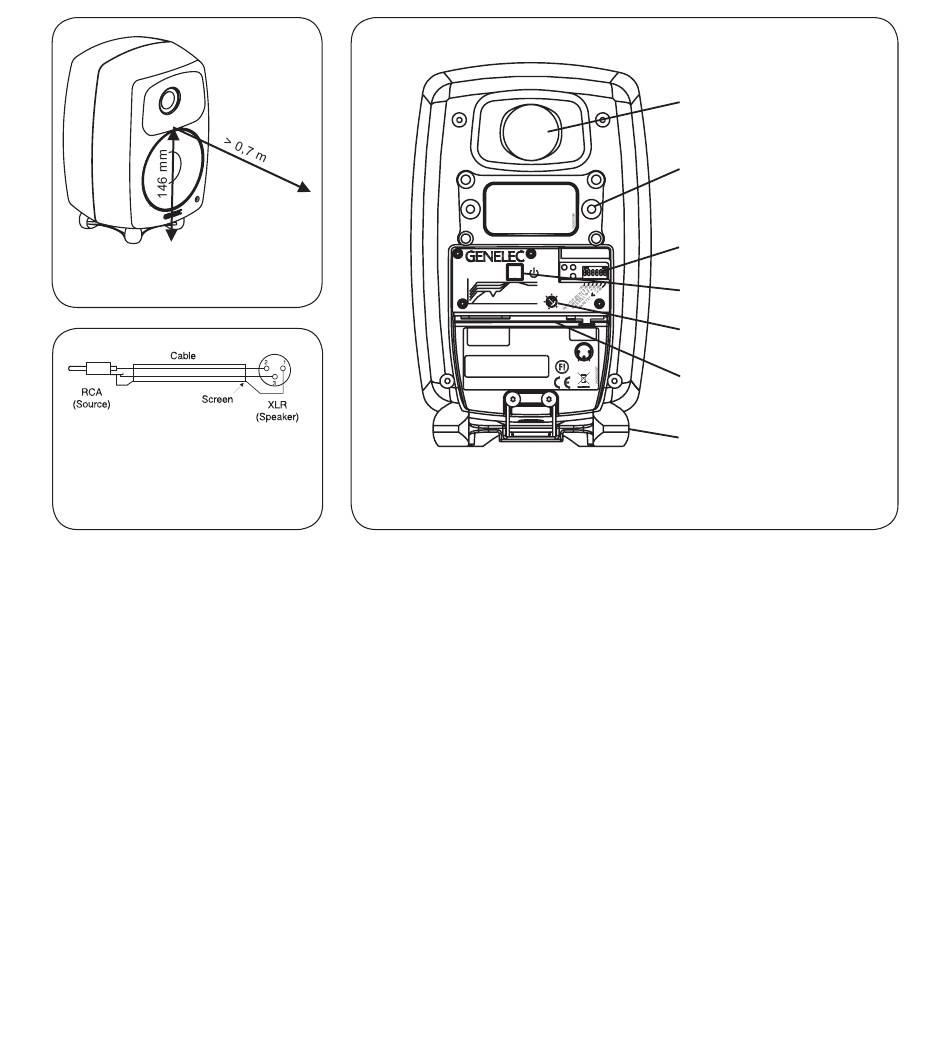

Figure 1: Location of the acoustic
axis
Figure 2: Type of cable needed if
unbalanced source is used (ex-
ample shown is RCA output to the
XLR input)
adjusted to match the acoustic environment by setting the
tone control switches on the rear panel. The controls are
"Desktop 200 Hz", "Treble Tilt", "Bass Tilt" and "Bass Roll-
Off". An acoustic measuring system is recommended for
analyzing the effects of the adjustments, however, careful
listening with suitable test recordings can also lead to good
results. Table 1 shows some examples of typical settings in
various situations. Figure 4 shows the effect of the controls
on the anechoic response.
Desktop 200 Hz
The desktop low frequency control (Switch 2) attenuates the
bass frequencies around 200 Hz by 4 dB. This feature is
designed to compensate for the boost often occurring at
this frequency range when the loudspeaker is placed upon
a meter bridge, table or similar reflective surface.
WARNING: ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT
SUBJECT TO WATER OR MOISTURE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
USE EARTHED MAINS CONNECTION ONLY.
AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE. NE PAS
OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR.
ADRESSER TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ.
CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA VARUSTETTUUN
PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
ON
OFF
ALL OFF
0
-2
BASS
-4
TILT TREBLE -3
-6
TILT 0 -6
dB DESKTOP
BASS
ROLL-OFF +2
20 200 2k 4k 20k
+6
Frequency (Hz) +4
MAINS INPUT 8020D
50 / 60 Hz 60 W
BI-AMPLIFIED
100 - 240 V~
MONITORING SYSTEM
MADE IN FINLAND www.genelec.com
SERIAL NUMBER
This device complies with FCC Part 15 and Canadian
ICES-003 radio frequency Class B emission requirements.
Refer to operating manual for full information.
Figure 3: Control and connector layout on the rear panel of an 8020D.
Treble Tilt
Treble Tilt control (switch 3) attenuates the treble response
of the loudspeaker at frequencies above 5 kHz by 2 dB,
which can be used for smoothening down an excessively
bright sounding system.
Bass Tilt
Bass Tilt control offers three attenuation levels
for the bass response of the loudspeaker below
2 kHz, usually necessary when the loudspeakers are placed
near a wall or other room boundaries. The attenuation levels
are -2 dB (switch 6 "ON"), -4 dB (switch 7 "ON") and -6 dB
(both switches "ON").
Bass Roll-Off
Bass Roll-Off (switch 4) activates a -4 dB filter to the lowest
bass frequencies (65 Hz). This can be used for compensating
REFLEX PORT
THREADS FOR
CEILING AND
WALL MOUNTS
TONE CONTROLS
POWER SWITCH
SENSITIVITY CONTROL
ANALOG
IN
2 1
3
+ -
GND
CONNECTOR PANEL
IN
(HORIZONTAL)
Iso-Pod™ TABLE
STAND
English 5
