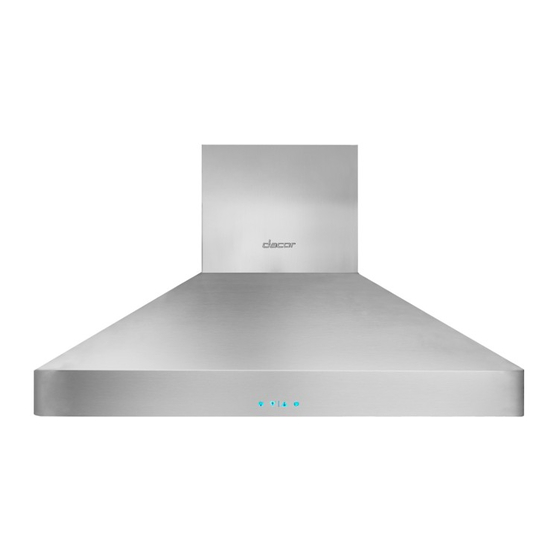

Dacor Renaissance RNHE36 Installation Instructions Manual
Hide thumbs
Also See for Renaissance RNHE36:
- Installation instructions manual (25 pages) ,
- Use and care manual (12 pages)
Table of Contents
Advertisement
Quick Links
Part No. 109172 Rev. B
Renaissance
®
Models RNHP30/36/48; Models RNHE30/36/48
APPROVED FOR USE WITH ALL DACOR
TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI/UL 507
STANDARD FOR ELECTRIC FANS AND CAN/CSA-C22.2 NO. 115 STANDARD
FOR FANS AND VENTILATORS.
Installation Instructions
Wall-Mount Range Hoods
®
RANGES AND COOKTOPS.
Advertisement
Table of Contents
Related Manuals for Dacor Renaissance RNHE36
Summary of Contents for Dacor Renaissance RNHE36
- Page 1 Wall-Mount Range Hoods ® Models RNHP30/36/48; Models RNHE30/36/48 ® APPROVED FOR USE WITH ALL DACOR RANGES AND COOKTOPS. TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI/UL 507 STANDARD FOR ELECTRIC FANS AND CAN/CSA-C22.2 NO. 115 STANDARD FOR FANS AND VENTILATORS.
-
Page 2: Table Of Contents
The data plate is inside the hood above the filters on the chassis’ back wall. (Remove the filters to view the data plate.) All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2016 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
WARNING ating this or any other appliance. Hazards or unsafe practices that COULD result in severe • Always contact the Dacor Customer Service Team personal injury or death. about problems and conditions that you don’t under- stand. CAUTION Hazards or unsafe practices that MIGHT result in minor personal injury or property damage. -
Page 4: General Safety Precautions
• Do not install/repair/replace any part of the range hood unless specifically recommended by the procedures in this guide. A qualified service technician should perform all other service. Contact the nearest Dacor authorized service representative at (800) 793-0093, or at www.dacor. -
Page 5: Product Specifications
Product Specifications General Specifications Weight Specifications All Models: RNHP, RNHE Individual Models: RNHP, RNHE Features Description Model Weight Blower Speeds Four (4) 3012 51 lbs. (23 kg) Filters Baffle style, dishwasher safe 3018, -3612 53 lbs. (24 kg) Exhaust(s) 8-in. duct diameter 3618 57 lbs. -
Page 6: Dimensions
Product Specifications Dimensions (Electrical/Ductwork Connections) Connect electrical wires and ductwork through the top or rear of the hood. Before installing the hood, mark the access holes according to the diagrams below. (Tolerances: +1/16” -0”, unless otherwise stated.) Dimensions: Top Electrical Access Holes (RNHP, RNHE) Model 1 1/2 in. - Page 7 Product Specifications Dimensions Tolerances: +1/16” -0” unless otherwise stated. Single Blower: Single Blower: RNHP30/36 Series RNHE30/36 Series Dual Blower: Dual Blower: RNHP48 Series RNHE48 Series RNHP Hood Dimensions RNHE Hood Dimensions Model Model 3012 29 7/8” (75.9 cm) 3012 29 7/8” (75.9 cm) 25 1/2”...
-
Page 8: Preparation And Setup
Wire connector caps 8” Ducting Wire stripper Foil tape Drill, bits Sheet-metal screws Grease channel Dual-to-Single Vent Transition Kit (option) Dacor Kit #AHT10 Sheet-metal screws 10” Ducts, ducting material Foil tape Drill, bits Baffle-style filter 48” (4) w/knobs (ready- 36” (3) to-assemble kit) 30”... -
Page 9: Installing The Electrical Source
Preparation and Setup Meeting Installation Requirements • See the diagram below: Top/Rear Electrical Access Holes for wire hole locations inside the hood. • See Wiring Diagrams at the end of this document. WARNING • Observe all governing codes and ordinances during planning and installation. -
Page 10: Planning The Ductwork
• Ductwork must not interfere with floor joists or wall studs. • On dual-exhaust models, the two 8” exhausts may be merged into one 10” duct using Dacor transition kit AHT10. See page 15 for details. • Fasten all joints with sheet-metal screws, and seal with certified duct/foil tape. -
Page 11: Preparing The Mounting Location
Preparation and Setup To determine your maximum length: WARNING Start with the your duct run’s total max. length, then sub- tract all of the ductwork equivalent lengths. (See the chart.) • Electricity to the range hood should be installed only by a licensed electrician. - Page 12 Preparation and Setup Models RNHP, RNHE Weight 3012 51 lbs. (23 kg) 3018, 3612 53 lbs. (24 kg) 3618 57 lbs. (26 kg) 4812 70 lbs. (32 kg) 4818 77 lbs. (35 kg) Mounting Block Support Structures Within Wall...
-
Page 13: Installation Instructions
Installation Instructions Marking the Centerlines IMPORTANT Users of the dual-exhaust format will need to install the These measurements and marks are for centering and leveling the hood, marking the duct cutouts, and installing AHT10 Dual-to-Single Transition Kit. (See the section Using the Dual-to-Single Transition Kit #AHT10 on Page the holding brackets (which brackets temporarily support 12 for installation instructions.) -
Page 14: Rotating The Blower(S) For Rear Exhaust
Installation Instructions Installing the Holding Brackets, Rotating the Blower(s) for Rear cont. Exhaust Perform this procedure before you hang the hood. Holding-Bracket Centerline Distance WARNING Models RNHP, RNHE 3012, 3018 12 1/2 in (31.8 cm) • Only install the hood if the electrical service provided meets the hood’s specifications. - Page 15 Installation Instructions Rotating the Blower(s) for Rear 3. Unscrew the cable clamp(s), and remove the hardware that holds the blower and L-bracket (previous graphic). Exhaust, cont. 4. Detach the blower and plate, and place them nearby. Orientating the Blower/Vent L-Brackets The images in this section were chosen to illustrate the intended information and may not exactly represent the 1.
-
Page 16: Assembling The Filters
Installation Instructions Rotating the Blower(s) for Rear Assembling the Filters Exhaust, cont. Filters are boxed separately and must be assembled during installation. All needed knobs and hardware are included Orientating the Blower(s) with the filters. For correct orientation, ensure the top of the filter faces up. The blower(s) must be correctly positioned. -
Page 17: Using The Dual To Single Transition Kit# Aht10
• Rear vent: Models: 3018, 3618, 4818 On dual-exhaust models, the two 8” duct exhausts can be transitioned into one 10” duct. Assemble the Dacor transition kit #AHT10 (sold separately) before you hang the hood. This transition kit fits over the top/rear ventilation exits. -
Page 18: Hanging The Range Hood
Installation Instructions Hanging the Range Hood WARNING Hanging the range hood requires two people. Do not lift the hood unassisted. IMPORTANT Take care not to scratch/damage the hood. 1. Remove the plastic film from the hood. IMPORTANT Rear-Vent Configuration Hanging slots in the hood back engage the holding brack- ets to support the hood temporarily during installation. -
Page 19: Hardwiring The Hood
Installation Instructions Hardwiring the Hood, cont. 5. (If needed) Mark the top of the hood if the configuration calls for the hood to be secured at the top. 6. Remove the hood from the wall. Not used 7. Drill the pilot or anchor holes. (If using anchors, insert Neutral (white) them into the anchor holes.) Ground (green) - Page 20 Installation Instructions WARNING • Do not ground the circuit to a gas line. • Do not ground the circuit to a hot water pipe. • Insulated water lines must be jumped to assure continuity to the ground. (See below.) To house circuit Separate No.
-
Page 21: Verifying The Setup
3. Verify that the electrical connections are correctly done. 4. Perform the Verify the Setup procedure again. IMPORTANT If the hood still does not work, contact Dacor Distinctive Service: (800) 793-0093 x2822. Do not try to repair the appliance yourself. Dacor is not responsible for service required to correct a faulty installation. -
Page 22: Wiring Diagrams
Wiring Diagrams RNHP3012, -3018; RNHE3012, -3018 Wiring Diagram: 1-Blower, 2-Light Models... - Page 23 Wiring Diagrams RNHP3612, -3618; RNHE3612, -3618 Wiring Diagram: 1-Blower, 3-Light Models...
- Page 24 Wiring Diagrams RNHP4812, -4818; RNHE4812, -4818 Wiring Diagram: 2-Blower, 4-Light Models...
- Page 25 Notes...
