Summary of Contents for SMART/RG SR655AC

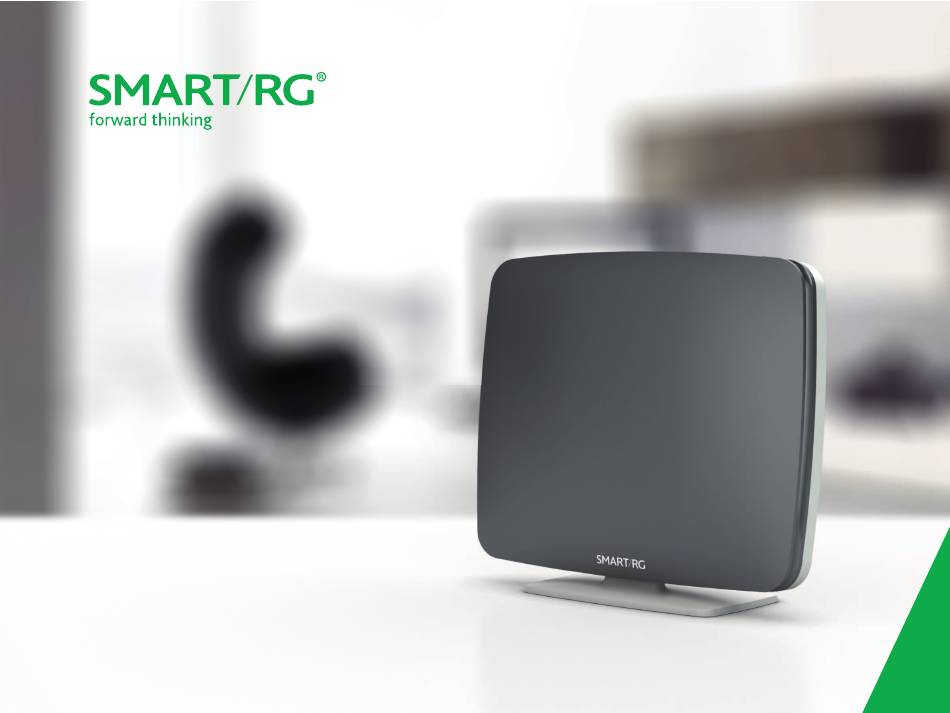

- Page 1 Quick Start Guide SR655ac This Quick Start Guide shows you how to set up and start using your new gateway.
-
Page 2: Important Safety Instructions
Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. -
Page 3: Fcc Statements
FCC Statements FCC - Part 68 This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom case of this equipment is a label that contains, among other information, a product identifier in the format US: VW7DL01BSR655A. This indicates a REN (Ringer Equivalency Value) of 0.18. - Page 4 If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
- Page 5 FCC - Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 6 Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
- Page 7 EMC Compliance Statement This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. 5GHz 5150-5250 MHz band is restricted to indoor operations only.
-
Page 8: Installation
INSTALLATION Locate the splitter cable that is included with your SmartRG gateway. It has three ports. 1. Connect the splitter as follows: a. Connect the DSL port of the gateway and the Modem port of the splitter with a telephone cable b. - Page 9 COAX 3G USB Data Card / LTE RJ11 RJ45 Phone...
-
Page 10: Led Indicators
LED INDICATORS The LEDs on the SR655ac can assist you in better understanding the current state of your gateway. POWER INTERNET LAN 1-4 2.4 GHZ 5 GHZ USB 1-2 DSL sync in progress DSL sync acquired and gateway online Wi-Fi enabled on modem... -
Page 11: Quick Gateway Configuration
QUICK GATEWAY CONFIGURATION Warning: Do not press the Reset button unless you want to clear the current settings. The Reset button is in a small circular hole on the rear panel. If you want to restore the default settings, insert a thin wire (such as a paper clip) into the hole, press the Reset button gently for 1 second, and then release the button. -
Page 12: Configuring The Wan Manually
(advanced). The gateway interface appears, showing the Device Info summary page. Configuring the WAN manually If the automatic connect process is unsuccessful, refer to the Advanced Setup > Layer 2 Interface WAN Services sections of the SmartRG SR655ac Gateway User Manual to manually establish a connection. - Page 13 WiFi Setup Two methods, WPS and Manual, are available for WiFi setup. Perform the steps on this page first, and then follow the instructions for the applicable method. 1. In the left navigation bar, click Wireless > Basic. 2. Click Enable Wireless.
- Page 14 WPS Method If the device you wish to connect to the Internet via your gateway supports the WPS secure WiFi connection method, follow these steps. 1. In the left navigation bar, click Wireless > Security. 2. Select Enable WPS and click Apply/Save to commit your selection.
- Page 15 Manual Method Set up your gateway’s parameters first, then follow these steps. 1. In the left navigation bar, select Wireless > Security and scroll down to the Manual Setup AP section. 2. If your gateway supports multiple wireless networks, select the SSID of the network you wish to configure.
-
Page 16: Optional Wall Mount
OPTIONAL WALL MOUNT Using a Phillips-head screwdriver, remove the mount from its present Gateway location on the bottom of the gateway. Front Slide the mount onto the back of the gateway. Tighten the screw located in the bottom of the mount. 1/16”... -
Page 17: Additional Support
RECORD YOUR SR655ac WIFI SETTINGS Predefined wireless settings If you change the preset wireless settings WiFi network name (SSID) Network key (password) ADDITIONAL SUPPORT If you require further instructions, please contact your local ISP Support. SMARTRG INC. ALL RIGHTS RESERVED. COPYRIGHT 2016 ©...
