Summary of Contents for Textron Greenlee GATOR EK622LX

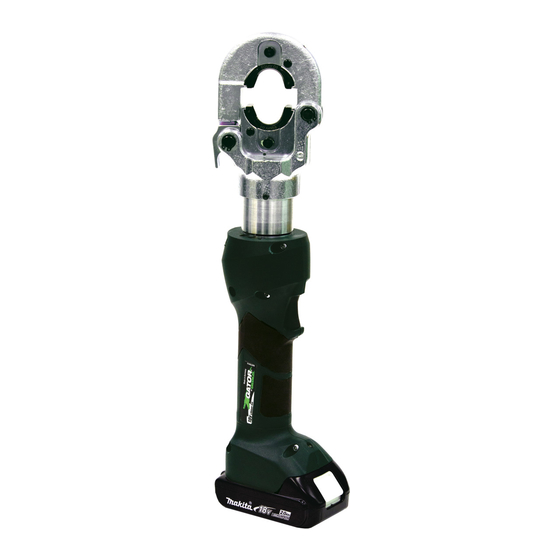

- Page 1 Serial Number EK622LX GATOR Battery-powered ® Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080013 REV 2 © 2017 Greenlee Textron Inc. 3/17...
-
Page 2: Table Of Contents
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Textron Innovations Inc. -
Page 3: Important Safety Information
• Keep hands away from the crimp- ing tool head when crimping. Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Failure to observe this precaution may result in injury injury or property damage. and property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
Recommended Operating Temperature Range ....5 °F to 122 °F (–15 °C to 50°C) Crimping Capacities Maximum Cable Size Copper ......................600 kcmil Aluminum ..................... 350 kcmil Battery Charger ................ Read the instructions supplied with the battery charger Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Operation
Flashing light for 20 seconds Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 Crimping Direction (evenly spaced) First Compression Crimping Direction SIDE B (evenly spaced) First Compression SIDE A First Compression SIDE B Crimping Direction SIDE A (evenly spaced) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Die And Connector Selection
2/0 to 3/0 AWG: 3 crimps 95R7 4/0 AWG to 600 kcmil: 4 crimps 4/0 AWG to 350 kcmil: 4 crimps ** 6 AWG to 350 kcmil Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Lcd Screen
Tool deactivated Service necessary Real-time clock not found Bluetooth ® unit not found Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Maintenance
Failure to observe these warnings could result in severe injury or death. Relief valve adjustments must be done by an authorized service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 11: Troubleshooting
LED glows for 20 seconds. Battery charge low. Charge or replace battery. Tool loses oil. Damaged internal seal. Contact Greenlee customer service at 800-435-0786 for warranty service or repair. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 12 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
