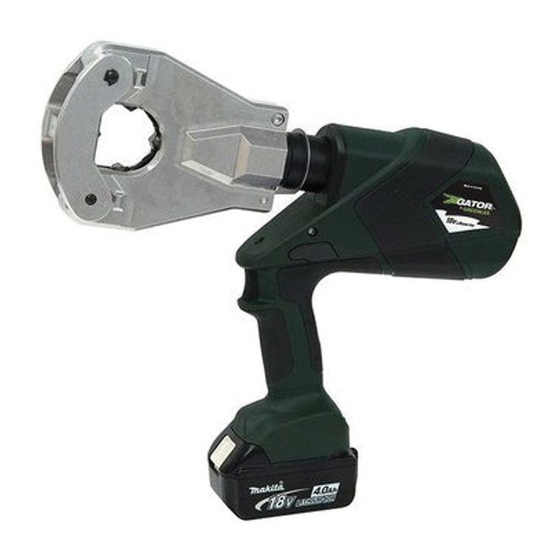

- Page 1 Serial Number EK6FTLX GATOR Battery-powered, ® Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080023 REV 2 © 2017 Greenlee Textron Inc. 3/17...
-
Page 2: Table Of Contents
All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for Do not discard this product or throw away! damages resulting from misapplication or misuse of its products. -
Page 3: Important Safety Information
• Keep hands away from the crimp- ing tool head when crimping. Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Failure to observe these precautions may result in injury or property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
Crimping Range Copper .................. 4 AWG to 750 kcmil Aluminum ................6 AWG to 750 kcmil Battery Charger .............Read the instructions supplied with the battery charger Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Operation
Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Connector Selection
4 AWG to 500 kcmil 750 kcmil: 3 crimps 400 to 600 kcmil: 3 crimps Penn-Union: 6 AWG to 500 kcmil 750 kcmil: 4 crimps Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Lcd Screen
Tool deactivated Service necessary Real-time clock not found Bluetooth unit not found ® Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Maintenance
Failure to observe these warnings could result in severe injury or death. Relief valve adjustments must be done by an authorized service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 11: Troubleshooting
Pull trigger and hold retract button simultaneously to warm oil. Store tool in warm area. Tool loses oil. Damaged seal. Contact Greenlee customer service at 800-435-0786 for warranty service or repair. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 12 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
