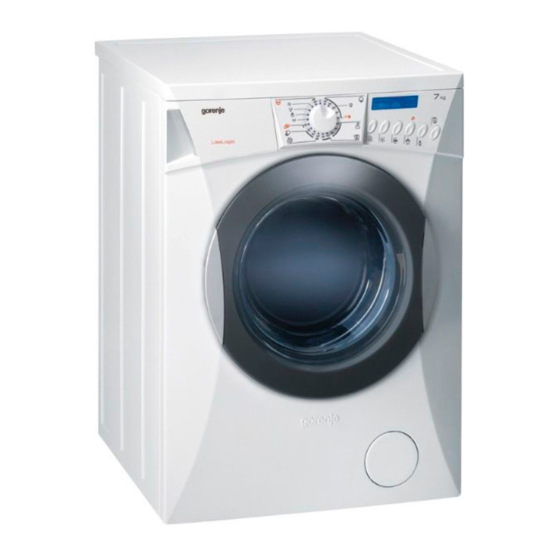

Gorenje WA 63 Series Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Gorenje Manuals
  4. Washer
  5. WA 63 Series
  6. Instructions for use manual

Gorenje WA 63 Series Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions for Use
Washing machine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA 63 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Gorenje WA 63 Series

Summary of Contents for Gorenje WA 63 Series

  • Page 1 Instructions for Use Washing machine...

  • Page 2: Table Of Contents

    Thank you for your confi dence in purchasing our washing machine, and congratulations on the excellent choice. Your new washing machine meets the requirements of modern treatment of laundry. It is rational in the consumption of energy, water and washing agents. Our appliances are friendly to the environment.

  • Page 3: Description Of Washing Machine

    Description of washing machine 1. Front panel 5. Adjustable legs 2. Detergent dispenser 6. Water outlet hose 3. Door (depending on the model) 7. Water inlet hose 4. Filter lid 8. Mains power cable Technical information (depending on the model) •...

  • Page 4: Cautions

    Cautions • Be sure to remove transport brackets prior fi rst use of the appliance. Attempted operation of the blocked machine may result in irreparable damage which is not covered by the manufacturer’s warranty! • When connecting your washing machine to water supply, be sure to use brand new water inlet hose and appropriate sealing gaskets (attached).

  • Page 5: Installation And Connection

    Installation and connection Package removal Package removal In removing the wrapping be careful not to damage the appliance with a sharp object. Before connecting the appliance, let it warm up to room temperature (wait for two hours). • Our appliances are packed in environmentally friendly materials which may be recycled, deposited or decomposed without any threat to the environment.
  • Page 6 • If you have a tumble dryer of the same dimensions, you can place it on top of the washing machine. Water inlet connection Water inlet connection To ensure correct operation of the appliance, water pressure inlet must be between 0,05 and 0,8 MPa. Minimum water pressure can be established by measuring the quantity of poured out water.
  • Page 7 Water outlet connection Water outlet connection • Fix the outlet hose to run into the sink or the bathtub, or connect it directly to the wall drain outlet (diameter min. 4 cm). • Wall drain must be installed properly and must enable occasional cleaning.

  • Page 8: Operation

    Operation A - program selector E - easy ironing knob B - MENU knob F - START/PAUSE knob C - SELECTION knob G - door knob (depending on the model) D - short program knob H - display Program selector Basic programs Partial programs Cotton...
  • Page 9 Before fi rst use Before fi rst use - Selecting language To change the language in which the information appear on the display, press simultaneously the key MENU (B) and SELECTION(C), and turn the program selector (A) from position “0” to the fi rst program in clockwise direction (Cotton 95°C).
  • Page 10 Washing machine Washing machine operation operation 1. Name of the program, 2. Duration or time of day, 3. Symbols for activation of additional functions, 4. Water quantity in liters, 5. Spin RPM Program is selected by turning the program selector from the “0” position to the desired washing program.
  • Page 11 Delicate This is a program for delicate fabrics (dresses, skirts, blouses) and curtains. Wool Especially gentle program for washing wool and garments made from mixture of other fabrics with wool, appropriately marked for machine washing. Manual wash Very gentle program concluded with short gentle spin (max. 400 RPM).
  • Page 12 are displayed in sequence. If you do not wish to activate or change certain displayed function, press knob B (MENU) to move to the next available function.Functions with the choice of multiple available settings, display the default one in bold (spin RPM, extra rinse, more water, sound signal).
  • Page 13 Pre-wash Used for washing heavily stained laundry, especially with superfi cial stains. In default setting the pre-wash function is off. It is activated by pressing the SELECTION knob (C) on programs for cotton, synthetics, delicate and mixed laundry. Soaking This program is intended for removal of stubborn stains. In default setting the soaking function is off.
  • Page 14 SELECTION button (C) reset the selected time. Sound signal Sound signal beeps when a knob is pressed (function selection), and it also signals the end of washing program and reporting failures. In default setting the sound signal is on. You may select to switch the sound signal off, or increase volume.
  • Page 15 Rinse Independent program for rinsing delicate laundry, without intermediate spinning and with short fi nal spin. You may use it for rinsing manually washed delicate laundry. You may engage the reduced spin RPM function. Softening This program is intended for softening, bleaching or impregnating of washed laundry.
  • Page 16 Start the operation Start the operation Program is activated by pushing the START/PAUSE button (F). Sound signal confi rms the start, the display indicates fi rst washing stage and time left to the end of washing. Washing stages are consecutively displayed in accordance with the selected program.
  • Page 17 it had been interrupted. Permanent suspension - change of program By turning the program selector to the position “0” the program is permanently suspended. Consequently you may select a new program (see Program selection). • Failures Program is suspended in case a failure occurs. This is signalled by the relevant reading on the display and a sound signal (see cf.
  • Page 18 manner: - Press MENU (B) and Easy ironing knobs (E), and turn the program selector to the fi rst clockwise program. Display reads SENSOR CALIBRATION. - Start calibration by pushing the START knob (F). The machine performs calibration procedure automatically. During the process the reading SENSOR CALIBRATION is fl...

  • Page 19: Tips For Washing And Energy Saving

    Tips for washing and energy saving • Before washing sort out the laundry according to the type, degree of dirtiness and color resistance. • Prior selecting the washing program consult the sewn tab with information on a particular piece of laundry (see Maintenance chart on the last page). •...

  • Page 20: Cleaning And Maintenance

    • Insert particularly delicate linen (stockings, delicate female underwear, etc.) into the special bag. • High spin RPM leave less moisture in laundry which dries out much quicker in the tumble dryer, thereby saving energy. Do not put clods of detergent into the soap dispenser as the tube in the washing machine may clog.
  • Page 21 • Wash it under running water using a brush, and dry it. Remove any leftover dried detergent from the bottom of the casing. • Clean the entire rinsing area of the washing machine with a brush, especially the nozzles on the upper side of the rinsing chamber.

  • Page 22: Failures

    • Insert the fi lter back as shown on the picture (arrow and pointer), and tighten by turning it in clockwise direction. To ensure good sealing the gasket surface (A) must be dirt free. (depending on the model) (depending on the model) Failures If the washing machine identifi...
  • Page 23 Failure Possible cause Remedy The machine does not Machine is not powered. Check if: work • plug is in the socket, (display is not • there is power in the socket, illuminated). • the fuse is OK. Water does not enter Filter is not tightly screwed in.
  • Page 24 Failure Possible cause Remedy Softener is not Sucking cover is not correctly Clean the dispenser and fi rmly fi x the completely rinsed, positioned or is clogged. cover to its place. or water is left in the dispenser dish. Washing time is longer •...

  • Page 25: Tables

    Tables Program chart - 7 kg WA 73xxx,... (depending on the model) Water cons. Energy cons. Basic programs Type of laundry Cotton 2,31/2,19** Cotton 1,31/1,17** 1700 Cotton heavy * 1,33/1,19** Cotton 0,67 Synthetics 0,97 Synthetics 1000 0,56 Synthetics 0,36 Delicate 0,48 Delicate 0,39...
  • Page 26 Program chart - 6 kg WA 63xxx,... (depending on the model) Water cons. Energy cons. Basic programs Type of laundry Cotton 2,10/2,05** Cotton 1,12/1,00** 1700 Cotton heavy * 1,14/1,02** Cotton 0,66/0,64** Synthetics 0,93/0,91** Synthetics 1000 0,52/0,50** Synthetics 0,33/0,31** Delicate 0,45/0,43** Delicate 0,36/0,34** Wool...

  • Page 27: Pumping Water

    Program chart - 6/7 kg WA 64xxx, WA 74xxx,... (depending on the model) Water cons. Energy cons. Basic programs Type of laundry Cotton 2,10/2,05** 2,19 Cotton 1,12/1,00/** 1,17 1800 Cotton heavy * 1,14/1,02** 1,19 Cotton 0,64 0,67 Synthetics 0,91 0,97 Synthetics 1000 0,50...

  • Page 28: Type Of Laundry

    Program chart - 4,5 kg Water cons. Basic programs Type of laundry Cotton 1,80 Cotton 0,82 1400 Cotton heavy * 0,85 Cotton 0,51 Synthetics 0,61 Synthetics 1000 0,34 Synthetics 0,18 Delicate 0,20 Delicate 0,15 Wool 0,25 Wool 0,15 Manual wash 0,20 Manual wash 0,10...

  • Page 29: Cotton Heavy

    Program chart/Additional functions Program Basic programs Cotton Cotton heavy Synthetics Delicate Wool Manual wash Jogging Partial programs Rinse Softening Pumping water Spin possibility...

  • Page 30: Manual Wash

    Maintenance chart Normal wash Max. Max. Max. Max. washing washing washing washing temp. temp. temp. Washing temp. 95°C Manual 60°C 40°C 30°C Delicate wash washing allowed Whitening Whitening in cold water Whitening not allowed Ironing Hot iron max. Hot iron max. Hot iron max.
  • Page 32 PS PG3,4 141576/en (03-08)
