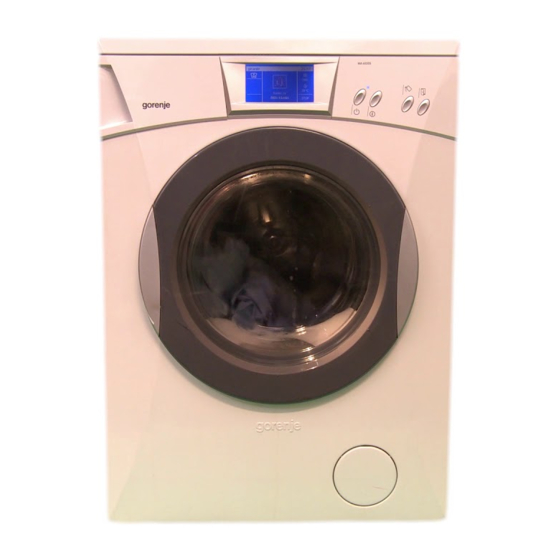

Gorenje WA 65165 PREMIUM Instructions For Use Manual

Hide thumbs

Advertisement

Quick Links

Instructions for Use
Washing machine

Advertisement

loading
Need help?

Need help?

Do you have a question about the WA 65165 PREMIUM and is the answer not in the manual?

Questions and answers

Related Manuals for Gorenje WA 65165 PREMIUM

Summary of Contents for Gorenje WA 65165 PREMIUM

  • Page 1 Instructions for Use Washing machine...

  • Page 2: Table Of Contents

    Thank you for your confi dence in purchasing our washing machine, and congratulations on the excellent choice. Your new washing machine meets the requirements of modern treatment of laundry. It is rational in the consumption of energy, water and washing agents. Our appliances are friendly to the environment.

  • Page 3: Description Of Washing Machine

    Description of washing machine 1. Front panel 5. Adjustable legs 2. Detergent dispenser 6. Water outlet hose 3. Door 7. Water inlet hose 4. Filter lid 8. Mains power cable Technical information Dimensions (w x d x h): 600 mm x 600 mm x 850 mm (depending on model) Depth with door open: 106 cm Weight (net): 90 kg...

  • Page 4: Cautions

    Cautions • Be sure to remove transport brackets prior fi rst use of the appliance. Attempted operation of the blocked machine may result in irreparable damage which is not covered by the manufacturer’s warranty! • Remove the protective fi lm from the display. •...

  • Page 5: Installation And Connection

    Installation and connection Removal of wrapping In removing the wrapping be careful not to damage the appliance with a sharp object. Before connecting the appliance, let it warm up to room temperature (wait for two hours). • Our appliances are packed in environmentally friendly materials which may be recycled, deposited or decomposed without any threat to the environment.
  • Page 6 • If you have a tumble dryer of the same dimensions, you can place it on top of the washing machine. Water inlet coupling To ensure correct operation of the appliance, water pressure inlet must be between 0,05 and 0,8 MPa. Satisfactory water pressure level is 1,5 liter of water output in 15 seconds with completely open faucet.
  • Page 7 Damaged mains power cable may be replaced only by the producer or his authorized personnel. Never plug the appliance into the electric shaver socket or hair dryer socket. In case of parallel operation of drier and washer, both appliances may neither be connected to the same wall socket nor to two sockets connected to the same fuse.

  • Page 8: Operation

    Operation A - display B - ON/OFF knob C - INFO key D - detergent dispenser knob E - door knob Display Symbol for selected program Name of selected menu Current time Arrows for scrolling within the menu START, STOP, YES, SAVE, DELETE or CONFIRM selected program Menu with available selected settings BACK, NO, STOP...
  • Page 9 • All commands and selections are carried out by touching the relevant symbol or reading (rectangle segment with wording). • Each selection is followed by a sound signal. • Display illumination goes off automatically if you do not touch anything within 5 minutes. Next touch immediately switches the illumination back on.
  • Page 10 - Sensor calibration The appliance is fi tted with a built-in sensor monitoring the cleanliness of rinsing water, and based on the result automatically decides upon the most appropriate number of rinses. Before fi rst use the sensor must be calibrated with water from the installation the machine is connected to.
  • Page 11 - Close the door Door is closed by pushing them towards the appliance to click in. When closing the door be careful not to squeeze a piece of laundry jammed in between. - Open the water intlet faucet. - Select washing program After switching the appliance on and after the greeting, the display shows basic list.
  • Page 12 Temperature selection By touching the icon marked Temperature you will open the temperature selection menu. Spin speed / pump stop By touching the icon marked Spin RPM you will open the spin RPM selection menu. The menu displays only the available spin RPM for the selected program.
  • Page 13 Follow carefully the required load. Extra rinse For persons who are extra sensitive to detergents. You may select between one or two extra rinses. Water clean sensor The amchine automatically regulates number of rinses in accordance with water cleanliness measured by the sensor. Water plus For washing extra soiled laundry.
  • Page 14 you fail press any knob within 15 seconds, the protection is automatically reactivated. Permanent disengagement of the function (at the end of the operation): Keep the key symbol pressed for 4 seconds at the end of the program, and the protection is permanently disengaged. If you switch the machine off after the end of program and fail to disengage the child lock, it remains active during subsequent start of the machine.
  • Page 15 By touching the load quantity the display indicates the share of inserted laundry compared to the maximum permissible load, and accordingly uggests quantity of detergent to be added. After confi rmation you return back to the starting menu. - Selection of special programs They are selected by the same procedure as the basic programs.
  • Page 16 feature, you may add washing detergent directly into the drum, using the measuring vessel. When adding softener, be careful to fi ll the dispenser only up to the marked level. Be sure to close the detergent dispenser when opening/closing the appliance door. Washing procedure Program is activated by pushing the START button.
  • Page 17 - End of washing program Sound signal and relevant sign on the display indicate the end of washing program. Display illumination shuts off 5 minutes after the end of washing program. If you wish to engage a new washing program after the machine was switched off, touch the master menu and move to the program selection menu.
  • Page 18 additional settings and/or delayed start. If you have changed the program, the screen will display relevant warning. In case you would not prefer to save the changes permanently, select NO. In such case only the actual program will be performed with changed settings. In case you selected YES, there is a choice of changing the name (see name change).
  • Page 19 low enough, otherwise water must be pumped out fi rst. At the next start the program is resumed from the position it had been interrupted. If you do not like to continue the program, or you wish to change the spin speed, press STOP and select one of the offered possibilities.

  • Page 20: Tips For Washing And Energy Saving

    • Display Select tools/display from the master menu. You may select the following choices: - CONTRAST: Contrast setting is changed by using arrows. Value is displayed on the band. Save the contrast change by pressing CONFIRM. - BRIGHTNESS: Select between 3 levels. Default setting is medium.
  • Page 21 • Loosen the stacked laundry prior inserting it into the drum. • Use only detergents for machine wash. • Add powder or liquid detergents according to the manufacturer’s instructions. • If water hardness level exceeds 14°dH degrees, the use of water conditioner is required. Any damage to the heater due to failure to use a water conditioning agent shall not be covered by this warranty.

  • Page 22: Cleaning And Maintenance

    Cleaning and maintenance Strictly switch the appliance off prior cleaning (unplug the power cord from the wall socket, or press the ON/OFF key). • Clean the display with soft, damp cotton cloth. Never use any sharp objects for cleaning. • Clean the casing and drum interior with soft cloth and mild detergent.
  • Page 23 • Wash it under running water using a brush, and dry it. Remove any leftover dried detergent from the bottom of the casing. • Clean the entire rinsing area of the washing machine with a brush, especially the nozzles on the upper side of the rinsing chamber.

  • Page 24: Troubles

    • Insert the fi lter back as shown on the picture (arrow and pointer), and tighten by turning it in clockwise direction. To ensure good sealing the gasket surface (A) must be dirt free. Troubles If the washing machine identifi es failures in the operation, it reports it immediately. Sound alarm is heard and the display reads ERROR.
  • Page 25 Failure Possible cause Remedy The machine vibrates Unevenly distributed laundry, This is normal, the machine will during the spin. especially with very small reduce the RPM if vibrations are too quantities (for ex. only the strong. bathrobe). Wash larger quantity of laundry. Excessive foaming Excessive measure of detergent.
  • Page 26 Failure Possible cause Remedy Water does not enter Disturbed water inlet. Check if: the machine. • the water faucet is open, Error F3 • inlet pipe net fi lter is clean. (Push the START button again). Spinning rpm not • rpm sensor disconnected •...

  • Page 27: Tables

    Tables Program chart 6/7 kg Program 6 kg 7 kg 6 kg 7 kg Cotton-white 1400 2,05 2,19 1600 Cotton-color * 1,02 1,19 1800 Cotton-color 0,58 0,62 2000 Synthetics 3/3,5 0,93 0,99 1000 Synthetics 3/3,5 0,52 0,56 Delicate 2,5/3 0,32 0,39 Wool 0,32...
  • Page 28 Program chart/ extra settings Program Basic program Cotton-white / color    /    / Cotton heavy  /    / Synthetics    /    / Delicate  -/   ...
  • Page 29 Maintenance chart Normal wash Max. Max. Max. Max. washing washing washing washing temp. temp. temp. Washing temp. 95°C Manual 60°C 40°C 30°C Delicate wash washing allowed Whitening Whitening in cold water Whitening not allowed Ironing Hot iron max. Hot iron max. Hot iron max.
  • Page 32 PS PG5 en (12-11)
