Eneo IED-62F0036M0A User Manual

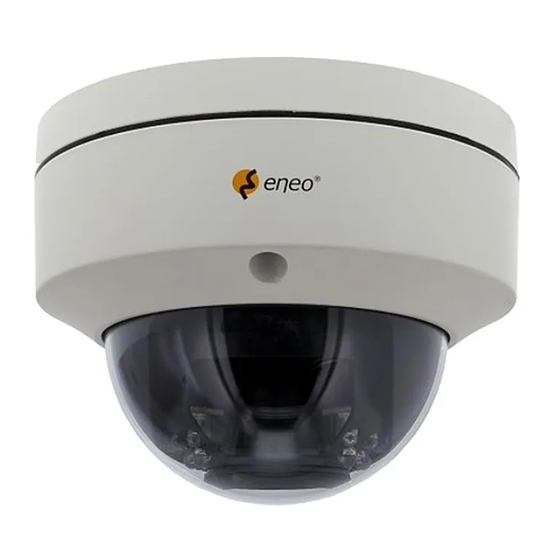

1/2.8" network dome, fix, day&night, 1920x1080, infrared, 12vdc, poe, ip66
Hide thumbs Also See for IED-62F0036M0A:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
1/2.8" Network Dome, Fix,
Day&Night, 1920x1080,
Infrared, 12VDC, PoE, IP66
IED-62F0036M0A
IED-62V2812M0B

Advertisement

Table of Contents
loading

Related Manuals for Eneo IED-62F0036M0A

Summary of Contents for Eneo IED-62F0036M0A

  • Page 1 User Manual 1/2.8" Network Dome, Fix, Day&Night, 1920x1080, Infrared, 12VDC, PoE, IP66 IED-62F0036M0A IED-62V2812M0B...

  • Page 2: Table Of Contents

    Table of content Parts supplied ......................5 Part names .........................6 Installation instructions ...................7 Pan & Tilt adjustments ............................8 Power supply connections ..........................9 General Description ....................10 Speci cation ......................11 Quick Network Setup ....................13 Further information ....................13 Full Menu Setup .......................14 Web viewer description ..........................
  • Page 3 Safety instructions General safety instructions • • Keep the operating instructions in a safe place for later use. • Installation, commissioning and maintenance of the system may only be carried out by authorised individuals and in accordance with the installation instructions - ensuring that all applicable standards and guidelines are followed.
  • Page 4 Class A device note This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may need to take appropriate measures to compensate for these. WEEE (Waste Electronical & Electronic Equipment) Correct Disposal of This Product (Applicable in the European Union and other European countries with separate collection systems).

  • Page 5: Parts Supplied

    Parts supplied • Dome Camera • Operating Instruction • CD • Mounting Template • Plastic Anchor: 6.5 x 26.6mm (4x) • Mounting Screw: 4 x 25mm (4x) • L-Wrench (1x)

  • Page 6: Part Names

    Part names [ IED-62V2812M0B ] [ IED-62F0036M0A ] Power Cable Dome Base 3-Axis Gimbal Zoom lever RESET button REAR VIEW Focus lever Dome Cover Bubble Dome...

  • Page 7: Installation Instructions

    Installation instructions CAUTION: The camera’s base should be attached to a structural object, such as concrete, hard wood, wall stud or ceiling rafter that supports the weight of the camera. If necessary use appro- priate mounting material (e.g. anchors) instead of the material enclosed with the camera.

  • Page 8: Pan & Tilt Adjustments

    Pan & Tilt adjustments 2. Tilt limit: Tilt is limited to 25°min ~ 90°max. with reference to the ceiling when the inclination of camera module is 0°, that is, the image is aligned horizontally. 3. Rotation limit (Horizontal image alignment): Adjust the rotation angle by turning the upper gimbal 360°.

  • Page 9: Power Supply Connections

    Power supply connections Make sure the power is removed before the installation. Camera can work with either 12VDC or PoE (IEEE Std. 802.3af ). Primary and secondary grounds are completely isolated to avoid the possible ground loop problems. 1. Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there will be no need to connect Power terminal.

  • Page 10: General Description

    • Simultaneously H.264 & MJPEG (Triple streaming) • ONVIF Event Mapping • Lens > IED-62V2812M0B : f=2.8~12mm F1.4, Mega pixel Vari-focal lens > IED-62F0036M0A : f=3.6mm F2.3, Mega pixel Fixed lens • Dual Filter Switcher • D-WDR (Digital Wide Dynamic Range) • Simple-LDC(Lens Distortion Compensation) •...
  • Page 11 ITEM IED-62V2812M0B IED-62F0036M0A Imaging Sensor 1/2.8" Sony 2.3Mega pixel RGB Bayer Array CMOS Sensor Effective Pixels 1920(H) x 1080(V) approx. 2.07Mega pixels (Full-HD mode) Sensitivity Color Mode: 0.15 lux (LED off), B/W Mode: 0.03 lux (LED off) Scanning mode Progressive Scan...

  • Page 12: Speci Cation

    Speci cations Security Multi User Authority, IP Filtering, HTTPS, Video Stream, Export/Import Network Time Sync. Synchronize Computer/NTP Server, Manual Software Reset Restart, Reset, Factory Default Auto Recovery Backup, Restore Remote Upgrade Using Web Browser Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software Built-In Web, ONVIF Compatible 3rd Party VMS...

  • Page 13: Quick Network Setup

    IP addresses. The network camera‘s default IP address is: 192.168.1.10. 4. Right clicking the device name in the eneo Scan Device tool will bring up the context menu. Use the ‘Open Device Web Site’ option to access the camera. 5. The web viewer login page will open up in your default web browser.

  • Page 14: Full Menu Setup

    Full Menu Setup Web viewer description XXX-XXXXXXXXXX (A) Menu button : Click the button to show or hide the setup menu bar. (B) Model name : Show a camera model name connected. (C) Select Language : Set the web viewer language English, Deutsch or French. (D) Main setup menu bar : Set the camera or network functions.

  • Page 15: Setup Menu Table

    Full Menu Setup Setup Menu Table Category Menu Player Control Pause, Snapshot Display Window Fit, Full Screen, Custom LIVE VIEW Video Stream Stream1, Stream2, Stream3 Protocol HTTP, TCP, UDP PTZ Contol Zoom, Focus, Push AF Information General, System Information, Open source Information Source Stream1/2/3, Snapshot Brightness, Contrast,...

  • Page 16: Live View

    Full Menu Setup 1. LIVE VIEW Enter the live view menu on the Web Viewer. ■ Player Control & Display ① Pause : Pauses the live view. ② Snapshot : Captures the image in .jpg format with the current stream resolution. ③...

  • Page 17: Setup

    Full Menu Setup 2. SETUP Enter the setup menu on the Web Viewer. 2-1. Information Shows the overall information about the system such as Model name, MAC address, IP address, Zeroconf, IP address, Firmware version, Server time, Running time, CPU usage, Inbound/Outbound Bandwidth and Open source list.
  • Page 18 Full Menu Setup 2-2-2. Stream Stream1, 2, 3 ● > COMPRESSION : Video compression codecs are available with H.264 profiles for all streams and additional MJPEG for stream3 only. > RESOLUTION : Each stream can have its individual resolution selected from its list. >...
  • Page 19 Full Menu Setup > BITRATE : Indicates the transmission speed through the network and defines the overall picture quality along with the image resolution, frame rate, GOP size and the compression codec for H.264. A high value provides the higher image quality but the total sum of bitrates for the streams has to be considered in calculating the network duty.
  • Page 20 Full Menu Setup 2-2-3. Image 2016-10-06 09:50:35 CAM1...
  • Page 21 Full Menu Setup Basic ● > BRIGHTNESS: Adjusts the overall brightness of the scene. Increasing the value increases the brightness. > CONTRAST: Adjusts the contrast of the scene. Increasing the value increases the contrast. > SATURATION: Adjusts the color richness of the scene. Increasing the value increases the color richness.
  • Page 22 Full Menu Setup ● > MODE : Selects how to control the exposure, AUTOMATIC or MANUAL. > SHUTTER : (Available only in MANUAL mode) Sets the shutter to a fixed value. > MAX. SHUTTER : Sets the maximum exposure time to limit long exposure at night or in low-light scenes.
  • Page 23 Full Menu Setup Day & Night ● > MODE : Selects how to control the day/night feature. • DAY : Disables the switching day/night filter and fixes it to DAY only. • NIGHT : Disables the switching day/night filter and fixes it to NIGHT only. •...
  • Page 24 Full Menu Setup > THRESHOLD [N->D] : (Available in AUTOMATIC mode) Sets the threshold level for night->day switching. Increase the value to switch at high luminance. [ CAUTION ] • The gap between THRESHOLD [D->N] and THRESHOLD [N->D] should be greater than 18.
  • Page 25 Full Menu Setup ● (Dynamic Digital Noise Reduction) > 2DNR : • MODE: ON reduces the noise by suppressing the spatial noise components. • LEVEL: Determines the strength of the noise reduction. Higher values reduce more noise but can also lead to loss of detail. >...
  • Page 26 Full Menu Setup ● (Lens Distortion Compensation) > MODE : ON compensates for the barrel distortion caused by wide angles. > LEVEL : Determines the amount of the compensation. Higher values expand the shrunken areas in the corners. > BOUNDARY LINE : (Available in LDC MODE = OFF) ON displays left and right boundary lines to show how much distortion occurs.
  • Page 27 Full Menu Setup VerticalView ● > MODE : ON displays the video in vertical view format, 16:9->9:16 for narrow streets, corridors or hallways. > ROTATION : Determines the orientation to rotate. Mode : On Rotation : 90 degree 2-2-4. Privacy Mask Mark ENABLE checkbox to activate the privacy masks.
  • Page 28 Full Menu Setup To set the privacy mask (up to 8 privacy areas) : 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor anywhere and click the right mouse button. A mini pop up appears. Select CREATE MASK AREA / DELETE MASK AREA. 3) In the video window, place the mouse cursor where you would like to create a mask.

  • Page 29: Event

    Full Menu Setup 2-3. Event 2-3-1. Triggers EVENT TRIGGERS menu defines and sets the parameters for the various event sources. [ Important NOTE ] Once the event is generated, the camera can record the video into the storage, output the alarm signal, email the event, send the video clip to FTP, boost the video frame rate, move to PTZ preset or send the event to the notification server.
  • Page 30 Full Menu Setup To set the motion detection area (up to 4 include-types and 4 exclude-types) : 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor where you would like to make a detection window and click&drag the right button. The following window is then generated. •...
  • Page 31 Full Menu Setup Motion Tamper System Manual Network Timer Day/Night > OBJECT SETTING: Click the green rotating icon on the top-right of the video window and OBJECT SETTING menu will appear. To hide it, click the icon again. Mark SHOW OBJECT SIZE checkbox and a black rectangle at the top-left corner of the video window will appear.
  • Page 32 Full Menu Setup • SENSITIVITY : Sets the detection sensitivity for the objects. • WIDTH : Sets the minimum/maximum sizes in width of the objects to be detected. • HEIGHT : Sets the minimum/maximum size in height of the objects to be detected. •...
  • Page 33 Full Menu Setup Network : ● Used to trigger the event when the network connection fails. > Mark ENABLE checkbox to activate the network event. > DWELL TIME : Sets the time for the event once triggered by the network connection event. Timer Day/Night Timer...
  • Page 34 Full Menu Setup 2-3-2. Actions EVENT ACTIONS menu defines and sets the parameters for how to treat the various event sources. E-mail ● The camera can send email messages generated by the events via SMTP (Simple Mail Transfer Protocol). > Mark ENABLE checkbox to enable emailing. •...
  • Page 35 Full Menu Setup • USER NAME : Enter the user name as provided by the network administrator. • PASSWORD : Enter the password as provided by the network administrator. • LOGIN METHOD : Select one for SMTP authentication method allowed. [ NOTE ] If a PLAIN or LOGIN mechanism is negotiated, the camera sends the user name and password to the SMTP server.
  • Page 36 Full Menu Setup > Mark ENABLE checkbox to set the FTP server. • SERVER : Enter the IP address or host name of the specific FTP server. • PASSIVE MODE : Under normal circumstances the network camera simply requests the target FTP server to open the data connection. Checking this box issues a PASV command to the FTP server and establishes a passive FTP connection;...
  • Page 37 Full Menu Setup Video Boost ● Sets the frame rate and bitrate for H.264 stream and the quality for JPEG stream at EVENT STATE when the event occurs. [ NOTE ] Video boost is disabled during SD recording.
  • Page 38 Full Menu Setup Notification Server ● > Mark ENABLE checkbox to notify the event to the notification server when it occurs. • TYPE : Selects the network protocol to connect the notification server. • SERVER URL : Input the server URL of the notification sever. To enable the audio when the event occurs, copy the URL at SETUP>AUDIO and paste it on the server URL like http://x.x.x.x/setup/audio/audio.php •...
  • Page 39 Full Menu Setup 2-3-3. Rules EVENT RULES menu defines and sets the parameters for what to do for the various event sources. Event Processing ● Event process lists have to be generated and can be edited for what to do when the event occurs.
  • Page 40 Full Menu Setup > FTP : Mark the checkbox to use FTP as set in SETUP>EVENT>ACTIONS>FTP when the selected event occurs. > VIDEO BOOST : Select the video stream to be boosted up. Video boost is disabled if RECORD is enabled. [ NOTE ]...
  • Page 41 Full Menu Setup ONVIF Mapping ● Onvif mapping is provided to map the various events generated by this camera, but not defined by Onvif, to assign them to Onvif events for the Onvif compatible VMSes or NVRs. Two mappings for Motion and Alarm In are provided to be mapped and can be used by editing them.

  • Page 42: System

    Full Menu Setup 2-4. System 2-4-1. Security Users ● Manages the user accounts by names, groups and authorities. > Mark ENABLE ANONYMOUS VIEWR LOGIN if anyone is permitted to login anonymously. Accessing SETUP menu with the anonymous login will exit and require ID/Password login. >...
  • Page 43 Full Menu Setup HTTPS ● Selects the CONNECTION MODE. Export / Import > HTTP : Transfers data without encryption. Supports a URL that only starts with "HTTP: " > HTTPS : Transfer data with encryption by Hypertext Transfer Protocol over SSL protocol. Supports a URL that only starts with "HTTPS: "...
  • Page 44 Full Menu Setup To add a subnet of network addresses, these must be added in CIDR [ NOTE ] (Classless Inter-Domain Routing) notation. For example: entering 192.168.1.0/24 will add all the addresses in the range 192.168.1.1 to 192.168.1.254. Contact your network administrator for more detail.
  • Page 45 Full Menu Setup 2-4-2. Date & Time Current Time ● Shows the current date and time. Clicking SAVE tap updates and saves the date and time with the selected time in NEW TIME. New Time ● Select one of the following server times. >...
  • Page 46 Full Menu Setup 2-4-3. Network TCP/IP ● > IPv4 ADDRESS : • OBTAIN IP ADRESS VIA DHCP : Gets the IP address assigned by the DHCP (Dynamic Host Configuration Protocol) server. • STATUS : ‘Allocated’ shows that the IP address is obtained from the DHCP. •...
  • Page 47 Full Menu Setup > PORT : • HTTP PORT : Use a port number in the range 1024-65535. Default is 80. • HTTPS PORT : Use a port number in the range 1024-65535. Default is 443. • RTSP PORT : Use a port number in the range 1024-65535. Default is 554.
  • Page 48 Full Menu Setup DDNS ● (Dynamic Domain Naming Service) > Mark ENABLE checkbox to use DDNS. > DDNS server : Select the DDNS server to use. > Input REGISTERED HOST name, USER NAME, PASSWORD and INTERVAL. [ NOTE ] If the camera has not been registered to the DDNS host previously, the registration is required.
  • Page 49 Full Menu Setup ● > START PORT & END PORT : RTP port range defines the range of the ports from which ports of the video/audio are automatically selected. This feature is useful if the camera is connected to a NAT router with manually configured port mapping. Limit the range of the ports permitted for RTP unicast/multicast by entering START PORT and END PORT.
  • Page 50 Full Menu Setup UPnP ● UPnP is enabled by default so that the network camera can be automatically detected by operating systems and clients that support this protocol. > FRIENDLY NAME : Enter the name up to 32 alphanumeric characters like Model Name-MAC address.
  • Page 51 Full Menu Setup 2-4-4. Language Six languages are available to select from English, Deutsch (German), Français (French), Polski (Polish), Suomi (Finnish), and 한국어 (Korean). 2-4-5. Maintenance Maintain ● > RESTART : Restarts the camera without changing any settings. > RESET : Restarts and loads the factory settings but does not change IP address and PTZ settings.

  • Page 52: User Manual

    Full Menu Setup Upgrade ● Bring the firmware file to the drop box or click the drop box to browse for the firmware file, and then click the UPGRADE button. Do not disconnect the power or network cable during firmware UPGRADE. [ CAUTION ] Setup Export ●...

  • Page 53: Troubleshooting

    Troubleshooting If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware.
  • Page 54 Troubleshooting Poor image quality. Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. Rolling dark bands or flickering Try adjusting the Exposure Control setting under AE in image.
  • Page 55 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...

This manual is also suitable for:

Ied-62v2812m0b
