MEGA-PIXEL NETWORK CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
Page 4
MEGA-PIXEL NETWORK CAMERA Safety Precaution NOTICE • The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. • Avoid installing areas where has shock or vibration which results in the problems. •...

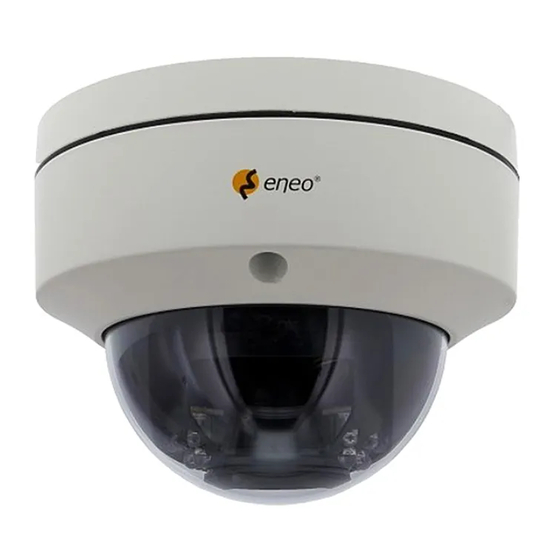

MEGA-PIXEL NETWORK CAMERA Part Names [ IED-62V2812M0A ] [ IED-62F0036M0A ] Power Cable Dome Base 3-Axis Gimbal Zoom lever RESET button REAR VIEW Focus lever Dome Cover Bubble Dome...
MEGA-PIXEL NETWORK CAMERA Installation Instructions 1. Drill four holes for mounting on the ceiling or wall. 2. Place the dome base at the pre-drilled installation position and fix it by using mounting screws. 3. Route the power & ethernet cable to the connecting place. 4.
Page 10
MEGA-PIXEL NETWORK CAMERA Installation Instructions Limit of Pan & Tilt 1) Pan limit: Adjusts the first pan angle by turning the gimbal 360˚. 2) Tilt limit: Tilt is limited to 25°min ~ 90°max. with Tilt reference to the ceiling when the inclination of camera module is 0°, that is, the image is aligned horizontally.
IP addresses. The network camera’s default IP address is : 192.168.1.10 4. Right clicking the device name in the eneo Scan Device tool will bring up the context menu. Use the ‘Open Device Web Site’ option to access the camera.
Page 12
MEGA-PIXEL NETWORK CAMERA Operating Instructions ■ Web Viewer description XXX-XXXXXXXXXX A) Menu button : Click the button to show or hide the setup menu bar. B) Model name : Show a camera model name connected. C) Select Language : Set the web viewer language English, Deutsch or French. D) Main setup menu bar : Set the camera or network functions.
Page 13
MEGA-PIXEL NETWORK CAMERA Operating Instructions Setup Menu table Category Menu Configuration Player Control Pause, Snapshot, Record(*) Display (Window Fit, Full Screen, Custom) LIVE VIEW Video Stream Stream1, Stream2, Stream3 Protocol HTTP, TCP, UDP Zoom, Focus, Push AF PTZ Contol(*) Event Search, Timeline Search, Timeline Bar PLAYBACK(*) General, Open source Information Information...
Page 14
MEGA-PIXEL NETWORK CAMERA Operating Instructions Security User, HTTPS, IP Filter, ONVIF System Current Time, New Time, Time Zone, Date & Time Date & Time Display Network TCP/IP, DDNS, RTP, UPnP, Zeroconf, Bonjour SETUP Language English, Korean, Deutsch, French Maintenance Maintain(Restart, Reset, Default), Upgrade, Setup Export, Setup Import Log &...
Page 15
MEGA-PIXEL NETWORK CAMERA Operating Instructions Quick Menu Setup 1-1. Information The Information shows the camera basic information such as Model name, MAC address, IP address, Zeroconf IP address and Firmware version. XXX-XXXXXXXXXX 3.2.7.45-XXX 1-2. Users User accounts can be added or modified or removed. The authority depends upon user group automatically and shows the permission status to access the menus.
Page 16
MEGA-PIXEL NETWORK CAMERA Operating Instructions 2. Type a password and retype confirm password. (1 to 8 alphanumeric characters). • Passwords are case sensitive. 3. Select one of the groups you wish to assign to the user. 4. Click the OK button to save the settings and add a new user 1-2-2.
Page 17
MEGA-PIXEL NETWORK CAMERA Operating Instructions • Synchronize with NTP Server: This option will obtain the correct time from an NTP server every 60 minutes. The NTP server's IP address or host name is specified in the time server. 1-3-3. Time Zone Select the time zone where your camera is located.
Page 18
MEGA-PIXEL NETWORK CAMERA Operating Instructions 1-4. Network The DHCP (Dynamic Host Configuration Protocol) server has a feature that automatically assigns an IP address to the device if there is a device on the network. > Obtain IP address via DHCP : Select the choice box if you want to assign the IP address from DHCP server automatically, and then the remaining setting are read-only text.
MEGA-PIXEL NETWORK CAMERA Troubleshooting If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware.
Page 20
MEGA-PIXEL NETWORK CAMERA Troubleshooting Poor image quality. Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. Rolling dark bands or flickering Try adjusting the Exposure Control setting under AE in image.
