Preface

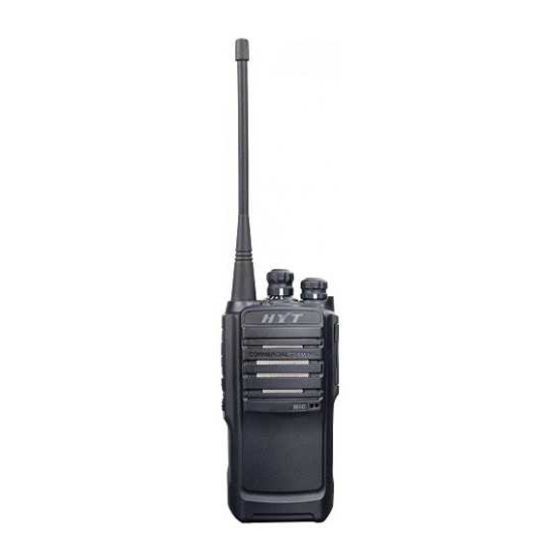

Thank you for purchasing Hytera TC-508 portable radio. With simple appearance, reliable mechanics,
practical functions and stable performance, it will refresh your communication experience!
To derive optimum performance from your product, please read this manual and the supplied Safety
Information Booklet carefully before use.
Advertisement
Table of Contents
Related Manuals for Hytera TC-508V
Summary of Contents for Hytera TC-508V
- Page 1 Preface Thank you for purchasing Hytera TC-508 portable radio. With simple appearance, reliable mechanics, practical functions and stable performance, it will refresh your communication experience! To derive optimum performance from your product, please read this manual and the supplied Safety...
- Page 2 TC-508V Owner’s Manual Instructional Icons The following icons are available through this manual: Caution: indicates situations that could cause damage to your radio. Note: indicates tips that can help you make better use of your radio. Term Explanation Please pay your attention to the following key terms: Key Operation Short press: to press a key and release it quickly.
- Page 3 The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding Hytera computer programs.
- Page 4 Compliance with RF Exposure Standards Hytera’s 2-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy.
- Page 5 Antenna should be kept away from eyes. • When worn on the body, always place the radio in a Hytera’s approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Hytera’s or other manufacturer’s non-approved accessories may result in exposure levels,...
- Page 6 TC-508V Owner’s Manual EU Regulatory Conformance The product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Note: The above information is applicable to EU countries only. The radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions.The radio must be...
-
Page 7: Table Of Contents
TC-508V Owner’s Manual Contents Checking Items in the Package ........................ 6 Product Overview ............................. 7 Product Controls ..........................7 Programmable Keys .......................... 8 Before Use ............................... 9 Charging the Battery ......................... 9 Assembling the Accessories ......................10 Status Indication ............................. 12 Basic Operations ............................ -
Page 8: Checking Items In The Package
TC-508V Owner’s Manual Checking Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Battery Rapid-rate Charger (for Li-Ion battery) Power Adapter Antenna... -
Page 9: Product Overview
TC-508V Owner’s Manual Product Overview Product Controls Part Name Part Name Part Name ○ ○ ○ PTT Key SK1 (programmable) SK2 (programmable) Radio On-Off/Volume ○ ○ ○ Antenna Channel Selector Knob Control Knob ○ ○ ○ Speaker Microphone LED Indicator ○... -
Page 10: Programmable Keys
TC-508V Owner’s Manual ○ ○ Screw (Belt Clip) Charging Piece Programmable Keys For enhanced convenience, you may request your dealer to program the keys SK1 and SK2 as shortcuts to the functions listed below: Shortcut Key Function To adjust power level through one button Adjust Power Level press. -
Page 11: Before Use
TC-508V Owner’s Manual Before Use Charging the Battery Use only the charger and battery specified by Hytera. Charger LED can indicate the charging process. ■ Charge Diagram ■ Procedures Connect the power adapter to AC socket. See arrow 1. Plug the power adapter into the rear jack of the charger. See arrow 2. -
Page 12: Assembling The Accessories
TC-508V Owner’s Manual Green LED glows. Fully charged Ready for use When battery power runs low, the LED will flash red, and the low-pitched tone will sound periodically. In this case, please replace or charge the battery. Caution: Be sure to read the Safety Information Booklet, to get necessary safety information. - Page 13 TC-508V Owner’s Manual Assembling the Belt Clip 1. Remove the screws. 2. Align the screw holes on the belt clip with those on the radio’s body, and then tighten the screws. To remove the belt clip, loosen the screws. Assembling the Audio Accessory/Programming Cable 1.
-
Page 14: Status Indication
TC-508V Owner’s Manual Status Indication The top LED indicator will help you easily identify the current status of your radio. LED Indicator Radio Status Red LED glows. Transmitting Red LED flashes. Low battery alert Green LED glows. Receiving Green LED flashes. -
Page 15: Basic Operations
TC-508V Owner’s Manual Basic Operations Turning the Radio On/Off Rotate the Radio On-Off/Volume Control knob clockwise/counter-clockwise until a click is heard to turn the radio on/off. Adjusting the Volume You may control the volume level using the Radio On-Off/Volume Control knob. After the radio is powered on, rotate the knob clockwise to increase the volume, or counter-clockwise to decrease the volume. -
Page 16: Functions And Operations
TC-508V Owner’s Manual Functions and Operations CTCSS/CDCSS CDCSS/CTCSS can be used to prevent unwanted conversations at the same frequency. If CTCSS/CDCSS is set on a certain channel, you can only receive voice calls from radios with matching CTCSS/CDCSS. Otherwise you will receive voice calls from all users operating at the same frequency. -
Page 17: Squelch Off
TC-508V Owner’s Manual Press and hold down the programmed Monitor Momentary key to activate this function (an alert tone sounds); release the key to exit (the alert tone sounds twice). Squelch Off This feature allows you to always unmute the speaker, no matter whether carrier is present or not. -
Page 18: Vox
TC-508V Owner’s Manual Once any activity is detected, it will jump to the priority channel. For more information, please consult your dealer. To exit the scanning process, you may press the Scan key again, or switch to a channel where the auto scan feature is disabled; or turn the radio off. -
Page 19: Battery Strength Indicator
TC-508V Owner’s Manual Battery Strength Indicator This feature allows you to know the current battery strength. Operation: Press and hold down the programmed Battery Strength Indicator key, and the LED glows to indicate remaining battery strength by different colors . Release the key to exit. The following table... -
Page 20: Battery Save
TC-508V Owner’s Manual Battery Save In Standby mode, when no signal is received / transmitted or no operation (key press) is performed for 10 seconds (programmable), the radio will automatically enter Battery Save mode to reduce power consumption. The radio may exit the Battery Save mode and get activated as soon as any key is pressed or any signal is received. -
Page 21: Troubleshooting
TC-508V Owner’s Manual Troubleshooting Phenomena Analysis Solution The battery may be improperly Remove the battery and attach it again. installed. The battery may run out. Recharge or replace the battery. The radio can not be Clean the battery contacts. If the problem can powered on. - Page 22 TC-508V Owner’s Manual If the above solutions can not fix your problems, or you may have some other queries, please contact us or your local dealer for more technical support.
-
Page 23: Care And Cleaning
TC-508V Owner’s Manual Care and Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Product Care Do not pierce or scrape the product with any edged instruments or hard objects.
