USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite TF3222MC-B2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

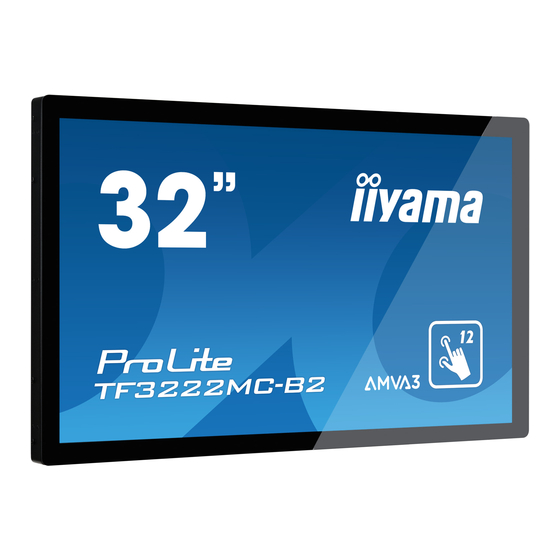

Summary of Contents for Iiyama ProLite TF3222MC-B2

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL3222 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
  • Page 4: Table Of Contents

    CONNECTING YOUR MONITOR ...........7 COMPUTER SETTING ..............8 OPERATING THE MONITOR ...............9 ADJUSTMENT MENU CONTENTS ..........11 SCREEN ADJUSTMENTS ............16 POWER MANAGEMENT FEATURE ..........19 TROUBLE SHOOTING ..............20 RECYCLING INFORMATION .............21 APPENDIX ..................22 SPECIFICATIONS : ProLite TF3222MC-B2 ........22 DIMENSIONS ................23 COMPLIANT TIMING ..............23...
  • Page 5: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
  • Page 7: Special Notes On Lcd Monitors

    WARNING  If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center. NOTE  To protect the Touch screen surface, do not scratch or rub the screen with a hard object.
  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
  • Page 9: Controls And Connectors

    CONTROLS AND CONNECTORS DVI-D IN VGA IN RJ45 Remote Control OSD Key* <Front> <Back> Menu Button ( Up / Left ( Down / Right Button (  Return / Exit / Input Button ( Power Switch ( Power Indicator NOTE Green light: Normal operation Green fl...
  • Page 10: Special Notes On Touch Panel

    SPECIAL NOTES ON TOUCH PANEL Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch. This could invalidate any remaining warranty. We recommend to use a plastic stylus (tip R0.8 or over) or fi nger. INSTALLATION CAUTION ...
  • Page 11: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.
  • Page 12: Computer Setting

    Change to the desired signal timing listed on page 23: COMPLIANT TIMING.  Windows Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.
  • Page 13: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS.
  • Page 14 Direct  LOCK MODE: Pressing and holding of the Button for 3 - 5 seconds when the Menu is not displayed. * The OSD menu is not displayed when the OSD is locked. Pressing and holding of the Button for 3 - 5 seconds again when the Menu is not displayed. The following OSD menu is displayed.
  • Page 15: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS PICTURE PICTURE Backlight Brightness Contrast Sharpness Adjustment Item Problem / Option Button to Press Too dark Backlight Too bright Too dark Brightness * Too bright Too dull Contrast Too intense 0 1 2 3 4 Sharpness You can change the picture quality from 0 to 4 (soft to sharp). Press the Button to change the picture quality in numerical order.
  • Page 16 DISPLAY DISPLAY Auto Adjustment H Position V Position Pixel Clock Phase Adjustment Item Problem / Option Button to Press Auto Adjustment * Adjust H/V Position, Pixel Clock and Phase automatically. Too left H Position Too right Too low V Position Too high Too narrow Pixel Clock *...
  • Page 17 Image Retention is turned off . Rotate OSD counterclockwise 90 degrees. OSD Rotation OSD Rotation is turned off . Off iiyama Logo displayed when the monitor is turned on. Opening logo iiyama Logo does not display when the monitor is Off turned on.
  • Page 18 INPUT INPUT Auto Adjustment Item Problem / Option Button to Press Auto Select the signal input automatically. Select the analog input. Input Direct Select the digital(DVI) input. NOTE When only one of the three signal inputs is connected to the signal source, the one connected is automatically selected.
  • Page 19 OTHER OTHER Reset OSD Time OSD H Position OSD V Position English Language Adjustment Item Problem / Option Button to Press Reset Factory-preset data is restored. You can set the OSD display duration time OSD Time between 5 and 60 seconds. OSD is too left OSD H Position OSD is too right...
  • Page 20: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com).
  • Page 21 Press the Button. (Auto Adjustmnet) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V Position so that the top and bottom of the picture frame will fi t to the display area.
  • Page 22 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.  In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Pixel Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
  • Page 23: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below.
  • Page 24: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ...
  • Page 25: Recycling Information

    RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. RECYCLING INFORMATION 21...
  • Page 26: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite TF3222MC-B2 Technology Projected capacitive 12pt touch Light transmission Touch Hardness Screen Thickness Communication system USB serial transfer Size Category 32" Driving system a-Si TFT Active Matrix Size Diagonal: 31.5"...
  • Page 27: Dimensions

    DIMENSIONS 391.0mm/15.4” 200.5mm/7.8” 200.5mm/7.8” 75.0mm/2.9” 75.0mm/2.9” 748.5mm/29.5” 4xM6 SCREW HOLE 701.0mm/27.6” 27.5mm/1.0” (VESA MOUNT) 200.0mm/7.8” 274.0mm/10.8” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 720 × 400 31.467kHz 70.080Hz 28.320MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz...
