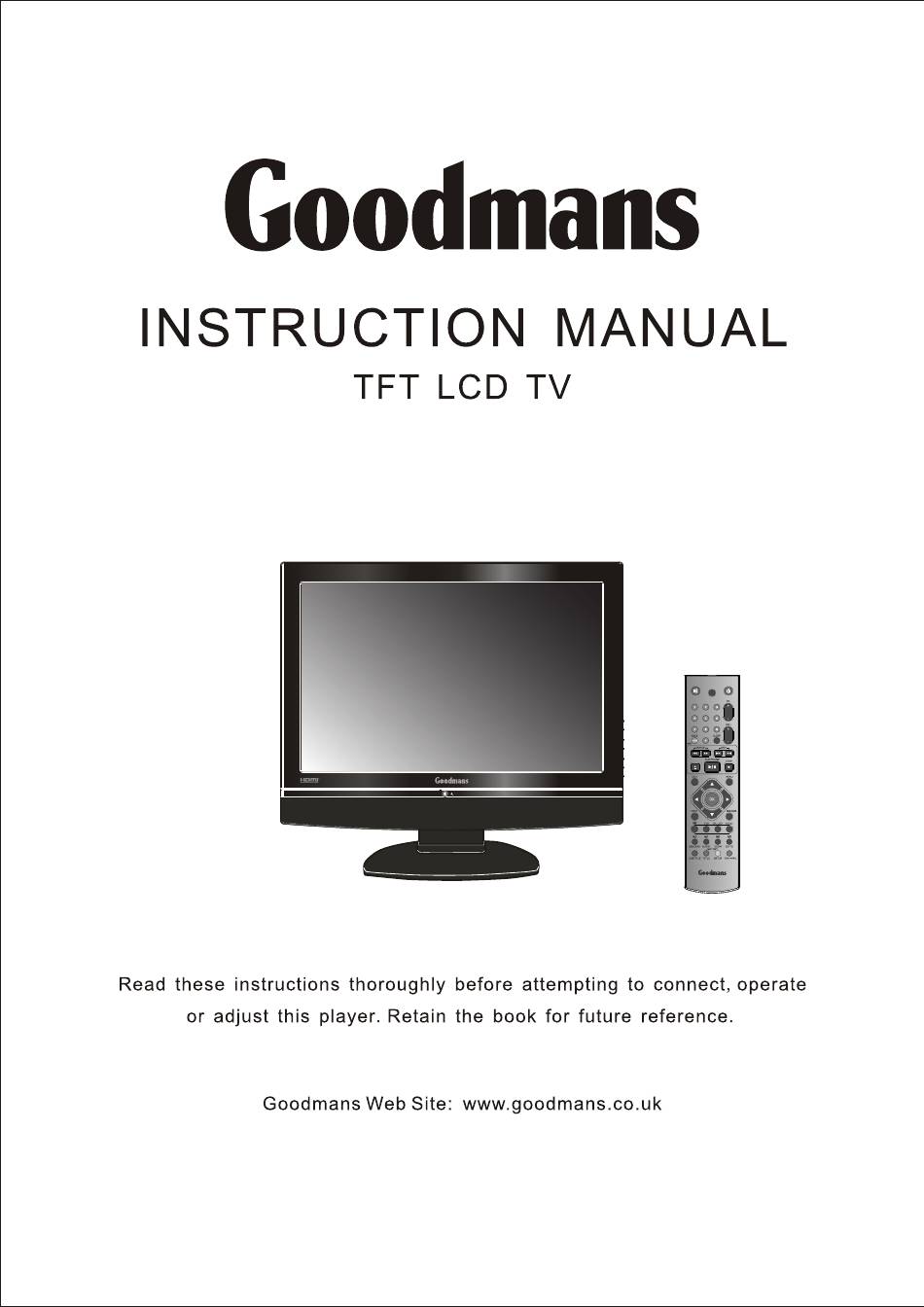

- Page 1 MODEL GTVL19W17HDV TV/SCART OPEN/CLOSE Goodmans Helpline 0871 230 1777...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
- Page 3 MAINS PLUG WIRING Electrical Information This appliance is fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply sockets it must be removed and replaced with an appropriate plug. If the plug becomes damaged and/or needs to be replaced please follow the wiring instructions below. The plug removed must be disposed of immediately.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Do not attempt to service the equipment yourself. Opening and removing the covers may expose you to dangerous voltage or any other hazards and may void your warranty. Refer service from qualified personnel. Do not place or drop any other objects on top. Do not insert anything into the ventilation holes of your equipment.
- Page 5 WARNINGS ● Unqualified attempts to repair this TV are not allowed. Refer repairs to this unit to a qualified technician only. ● Do not disassemble this unit. There are dangerous-voltage parts inside that may cause electric shock even after power is disconnected. ●...
-
Page 6: Table Of Contents
CONTENT PREPARATION ......................Features ................................Package Contents ............................... 7 LCD TV .................................. 8 Front View ................................8 Side View...................................9 Rear View ................................10 Remote Control ............................... 11 Setting up your LCD TV............................14 Using your LCD TV............................... 15 INSTALLATION ......................Connecting a TV Cable or Aerial........................ -
Page 7: Preparation
PREPARATION Features VGA Support: 60x80/60Hz~0x768/7Hz Multimedia socket VIDEO in socket S-VIDEO in socket SCART socket (RGB, CVBS ,CVBS+RGB,Y/C input) Y Pb Pr in socket VGA in socket HDMI in socket COAXIAL OUT socket (DVD SPDIF OUT) WSS (Wide Screen Scale ) Function This function can automatically convert and display any aspect ration (: / Wide) TV broadcast signal. -
Page 8: Package Contents
Package Contents Once you open the box, make sure all of the following contents are included.If you’re missing any items, please contact your dealer. LCD TV TV/SCART VOL. BACK SLEEP SEARCH SKIP PLAY/PAUSE OPEN/CLOSE STOP EXIT MENU INFO SOURCE CH. LIST P.SIZE I-II USB/CARD... -
Page 9: Lcd Tv
LCD TV The LED light indicates when the LCD TV is activated. VOL . CH . MENU SOURCE POWER Infrared Receiver VOLUME +/- Adjusts the volume up and down. Selects the main-menu item and change values for items when in the OSD mode. CHANNEL▲▼... -
Page 10: Side View
LCD TV Side View VOL . CH . MENU SOURCE POWER ITEM DESCRIPTION Any of the following disc types are playable on the DVD player: SLOT-TYPE DVD PLAYER CD-R, CD-RW, DVD-R, DVDRW, MP3, VCD, SVCD,DVD+R, or DVD+RW ( DVD mode ) Allows the insertion of a USB disk, You can view digital images / movie or USB etc playout on your TV. -
Page 11: Rear View
LCD TV Rear View PC VGA IN HDMI AUDIO IN VHF/UHF IN DC 12V IN PC AUDIO IN VIDEO S VIDEO AUDIO IN DIGITAL OUT SCART HDMI DC 12V IN VHF/UHF IN ITEM DESCRIPTION . DC IN Connect the DC power cord to this socket. . -
Page 12: Remote Control
Remote Control POWER Turns the LCD TV on and into standby mode . TV/SCART Mutes and restores your LCD TV sound. TV/SCART Pressing enter TV or SCART Mode. Select and switch to a channel by using 0-9 buttons. BACK/ +0 OPEN/CLOSE Returns to previously selected channel. - Page 13 Remote Control TV/SCART Allows you to move, select and set up the OSD options. INFO Pressing once displays a variety of information such as the current channel and the input source. Browse the disc’s information. (DVD mode) Cycles among the different input signal sources: TV DVD AV1(SCART) AV2(S-VIDEO) AV3(CVBS) AV4(Y Pb Pr) AV5(VGA) AV6(HDMI) OPEN/CLOSE...
- Page 14 Remote Control Installing the batteries in your remote control Pull the tab of the back cover and pull up on the cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
-
Page 15: Setting Up Your Lcd Tv
Setting Up Your LCD TV How to install the TV Stand Follow the instructions below to install the TV stand: Open the box, and make sure all necessary parts are in the box. LCD TV Stand Cover an even stable surface with a soft cloth. Place the LCD TV unit face-down on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown: Then push until stand clicks into the LCD TV’s stand socket. -
Page 16: Using Your Lcd Tv
Using your LCD TV The Power button on the front panel and also on the remote control is only used for powering up and switching the TV to standby mode,it does not disconnect the device from the mains supply. To completely disconnect the main voltage, please remove the power plug from the socket PC VGA IN AUDIO IN... -
Page 17: Installation
INSTALLATION Refer to the owner’s manual of the external equipment to be connected.When connecting external equipment, do not connect any AC power cords to wall outlets until you have completed all the connections. Connecting a TV aerial Basic Connection: Connecting cable or aerial . HDMI PC VGA IN AUDIO IN... -
Page 18: Connecting A Dvd Player
Connecting a DVD Player For best picture quality, if your DVD player has (Y Pb Pr) video output, Please use component cable instead of a standard video or S-video cable (cables not supplied). Otherwise connect using a standard Scart cable (not supplied). HDMI Audio Audi... -
Page 19: Connecting A Vcr & A Video Camera
Connecting a VCR & a Video Camera HDMI Audio Audi ideo Video/Audio Cable METHOD A (AV) Use an Audio cable to connect the VCR’s/ the VIDEO CAMERA’s audio output sockets to your LCD TV. Use a S-Video cable to connect your LCD TV and VCR player/ VIDEO CAMERA. METHOD B (AV) Use an A/V cable to connect the VCR’s/ VIDEO CAMERA’... -
Page 20: Connecting A Tv Box And Satellite Receiver
Connecting a TV Box and Satellite Receiver Audio Audi ideo Video/Audio Cable VGA CABLE Method A ( AV ) : Use an Audio cable to connect the Satellite Receiver’s / TV Cable Box’s audio output sockets to your LCD TV. Use a S-Video cable to connect your LCD TV and Satellite Receiver’s / TV Cable Box. -
Page 21: Connecting An Audio Receiver
Connecting an Audio Receiver For best Sound quality, you may want to play the LCD TV audio through your Dolby digtal surround system system. HDMI Dolby digital amplifier Use an audio cable to connect the audio receiver’s audio LINE IN sockets to LCD TV ‘s DVD COAXIAL OUT sockets.(only for DVD mode) Connect all power sources before turning on the LCD TV or other connected equipments. -
Page 22: Hdmi
HDMI HDMI -This TV can accept High-Definition Multimedia Interface(HDMI) . -This TV SET supports HDCP(High-bandwidth Digital Content Protection) Protocol for TV SET (480p, 720p, 1080i) modes. -When you connect to the output of an HD ready player (DVD Player, Set Top Box or PC) switch to the AV6(HDMI) function and the TV will automatically detect the resolution used by the HDMI source. -
Page 23: Using The Features
USING THE FEATURES Basic Operation Tuning in the TV channels After connecting an aerial to your LCD TV and connecting the mains cable to the TV and 230VAC mains socket, a red light will show on the front centre panel of the TV. Press the button, the red light will change to green and the First Time Installation POWER... -
Page 24: Osd Menu Operation
OSD Menu Operation The main menu provides access to the following menus: Video Adjust picture setting such as picture mode, contrast,brightness,sharpness, colour and advanced. Audio Adjust sound option and effects. Setup Adjust colour standard, sound standard, APS, Manual search, Channel setup. Preferences Adjust preferences such as OSD, blue screen, childlock, sleep timer, OSD... -
Page 25: Audio
Video OPTION DESCRIPTION Advanced Display Mode Cycles through wide mode settings: In TV/SCART/S-VIDEO/VIDEO mode: Wide, 4:3, Zoom, Original. In Y,Pb,Pr/VGA mode: Wide, 4:3. In HDMI mode, “P.SIZE” function is not available. Allows you to adjust the (Dynamic Contrast Enhancemen)to be off, low, mid, high. -
Page 26: Setup
Setup Use this Setup menu to select Colour Standard, Sound Standard, APS, Manual Search, Channel Setup. OPTION DESCRIPTION Colour Allows you to select the colour Standard standard : AUTO,PAL, SECAM. UK = PAL Setup Sound Allows you to select the sound standard : DK, BG, I, L/L’. -
Page 27: Preferences
Preferences Use this Preferences setting menu to set up some features: OSD, Blue Screen, Childlock, Sleep Timer, OSD Timer, OSD Reset. OPTION DESCRIPTION Language : Allows you to select the OSD to be English, German, French, Spanish, Italian, Dutch, Portugese, Polish Russian. -
Page 28: Using The Built-In Dvd
USING THE BUILT - IN DVD TO INSERT A DISC Select DVD function before disc can be inserted. Plays movies and other content on DVD, VCD, SVCD, and audio CD. Note: Insert a disc with label side facing to front of TV VOL . -
Page 29: Using The Card Reader & Usb
USING THE CARD READER & USB The Smart NAVI Viewer allows you to play JEPG/MPEG/MPEG/MP/MPEG files in a SD storage card on your LCD TV. TO INSERT A SD CARD Be sure to insert the SD card in the correct orientation. If the SD card is forced in the wrong way, it may cause damage. - Page 30 PLAYING BACK DVD/USB/CARD For trouble free operation of SD CARD/USB or DVD disc play. Please ensure that the following steps are taken before inserting an SD card, USB or DVD disc: DVD Playback . Press source button and select DVD/USB/CARD function. .
-
Page 31: Advanced Operations
Advanced Operations SEARCH PLAY For DVD discs: Press the GOTO key in normal playing status to display on screen as follows: Using the arrow buttons and number keys, adjust the title, chapter, audio, subtitle, angle, time of the title, time of the chapter, repeat on/off, and time display mode. VCD discs are alike DVD disc For CD discs Press the GOTO key the screen will display as following order:... -
Page 32: Picture Cd Operations
MP / WMA Playback MP/WMA Playback To go to a preferred directory, use the up/down cursor keys to scroll to your selection and then press OK key to confirm. Use the up/down cursor keys to select song and press OK button to start playing. Press left cursor button can return to the parent directory, you can then select other directory. -
Page 33: Mpeg4 Operations
PICTURE CD Operations Previous and Next selection: You can press button to show previous picture or button to show next picture manually. Slide Show: The player will automatically play pictures in slide show mode if the disc containing more than one picture. There are 6 available modes to wipe the TV screen when displaying a new picture: Press ▲/▼... -
Page 34: Using The Dvd Features
USING THE DVD FEATURES The setup menu is used to configure the player. USING GENERAL SETUP PAGE OPTION DESCRIPTION TV DISPLAY : Pan Scan Select this when the player is connected with a standard format TV set. Wide Wide screen picture shown in the full screen with some part cut. - Page 35 USING GENERAL SETUP PAGE OPTION DESCRIPTION Screen saver SCREEN SAVER When the player stops or the picture Wide becomes motionless for a couple of minutes, there will be a screen saver to prevent damage to the display screen. To activate screen saver. To disable screen saver.
- Page 36 DOLBY DIGITAL SETUP OPTION DESCRIPTION Dual Mono DUAL MONO Stereo: It means that the player will output Left channel and Right channel audio. L-Mono: It means that the player will output left channel audio only. R-Mono: It means that the player will output right channel audio only.
- Page 37 USING PREFERENCE PAGE The unit must be at complete STOP mode to access to SETUP Preference Page. OPTION DESCRIPTION AUDIO AUDIO Set the audio language to your language of choice: English/Dutch/ French/German/Italian/Polish/Portuguese/ Spanish/Russian. Not all DVD discs are NOTE: recorded with multiple languages. SUBTITLE SUBTITLE Select the Subtitle language:...
-
Page 38: Troubleshooting
TROUBLESHOOTING Before contacting Goodmans Helpline, check the following chart for a possible cause of the trouble you are experiencing and for a solution. PROBLEM SOLUTION □ TV will not turn on Make sure the power cord is plugged in. □... -
Page 39: Specifications
SPECIFICATIONS Model GTVL19W17HDV Panel System 19 inch LCD panel Display Resolution 1440 pixels (horizontal) x 900 pixels (vertical) Television System PAL - I Brightness 0 cd/m Contrast Ratio 800:1 Inputs/Output SCART PC Audio In Video In S-video In Phones Y Pb Pr... - Page 40 Display Modes The screen resolution has been optimized during production for the display modes listed below. If the signal from the system equals the standard signal mode, the screen adjusts automatically. If the signal from the system is not equal to the standard signal mode, adjust the screen resolution by referring to your video card user guide, otherwise there may be no video.
