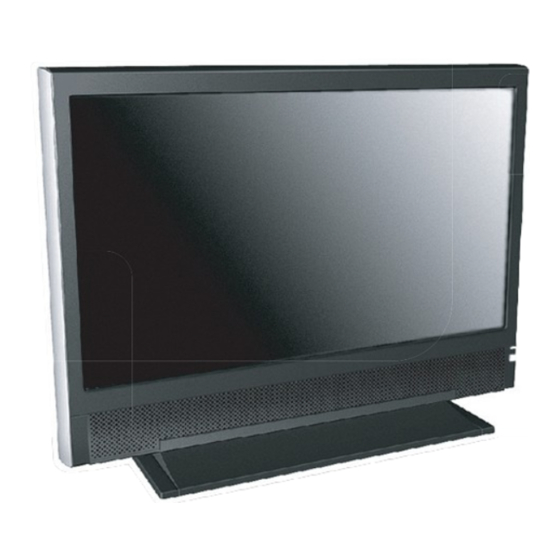

- Page 1 GTVL32W25HDF 32" LCD MONITOR TV WITH REMOTE CONTROL USER GUIDE...
- Page 2 www.goodmans.co.uk...
-
Page 3: Table Of Contents
Table of Contents Electrical Information ....................1 Wiring Instructions ...................... 1 Operating Safety....................3 Connecting ......................4 Power supply....................4 Point of use ....................4 Additional Safety Instructions ................5 Precautions ....................5 Introduction ......................... 6 Box Contents ....................... 6 Further Features.................... - Page 4 Useful features for TELETEXT ................36 Troubleshooting ......................39 Safety and Regulatory Information ................42 Repair ........................ 42 Notes for Service Engineers ................42 Environmental conditions................... 42 PC Input Preset Timing Table ................... 43 Specifications......................44 TV Signal Systems ....................45 Guarantee......................... 51 www.goodmans.co.uk iii...
-
Page 6: Electrical Information
Electrical Information Wiring Instructions www.goodmans.co.uk... - Page 7 CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONAL. Conductor dangerous voltage, that may be of sufficient DANGEROUS magnitude to constitute a risk of electric shock to persons VOLTAGE is present within this product's enclosure.
-
Page 8: Operating Safety
Contact your dealer immediately in any of the following situations. Do NOT plug in or switch on your display: • If the power cable/power supply overheats or is damaged If liquid is leaked into the monitor • If the LCD display is dropped or the housing damaged • www.goodmans.co.uk... -
Page 9: Connecting
Connecting Observe the following instructions to connect your LCD display properly: Power supply • Do not open the power supply housing. An open housing presents a lethal hazard from electrical shock. There are no parts inside to be cleaned or serviced. •... -
Page 10: Additional Safety Instructions
There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. www.goodmans.co.uk... -
Page 11: Introduction
Introduction Thank you for purchasing our LCD TV. We thank you for your confidence in our products and are pleased to greet you as a new customer. We focus on great features, ease of use and reliability in manufacturing your LCD display. -
Page 12: Further Features
TELETEXT function is available. Child lock function is available. Built-in dual channel speakers. Automatic sleep timer ranges from 10 to 120 minutes in 10-minute increments. Provided component video input for high definition TV program, resolution up to 720p, 1080i. www.goodmans.co.uk... -
Page 13: Overview Of The Tv
Overview of the TV Indicator Indicator Lighting Status: OFF (No power input) Standby Power on (TV / Video / PC mode) Green Standby active (only available in PC mode) Amber A green indicator lights when the power is on and an amber indicator lights when in the PC standby mode. -
Page 14: Function Keys
NOTE: Function Keys: These buttons control your TV’s basic features, and you may use these to adjust on-screen display (for example, items in the main menu or sub-menu). To use more advanced features, you must use the remote control. www.goodmans.co.uk... -
Page 15: Connections: Rear Panel
Connections: Rear Panel... -
Page 16: Remote Control
Numeric buttons. VOL + / VOL - To Increase or decrease volume level. Return to the latest viewed channel or source MUTE Sound Mute On / Off APC (Automatic Picture Control) Toggle screens between Normal / Cinema / Dynamic. www.goodmans.co.uk 11... - Page 17 EXIT/ARC (Aspect Ratio Control) In OSD screen, to exit a menu or sub-menu. In VGA (PC) mode, to toggle the picture mode between 16:9 / 4:3. In Video mode, to toggle the picture mode between Auto Image / Panorama / 16:9 / 14:9 / 4:3 / Zoom In OSD screen, to set up a function or enter a sub-menu.
-
Page 18: Setting Up
Component, SCART, S-VIDEO, and CVBS. NOTE: ANT IN: Antenna (aerial) In. • Connecting cables are not supplied. These can be purchased from most TV/HiFi retail • outlets. Connecting cables are not supplied. • www.goodmans.co.uk 13... -
Page 19: Connecting A Video Device Via Hdmi - Hdmi
Connecting a video device via HDMI - HDMI This can be applied only if there is an HDMI Output connector on the external device. NOTE: Video Devices: DVD Player, Set-Top Box, Game Box…etc. • HDMI: High-Definition Multimedia Interface • No audio cable is needed when via HDMI to HDMI connection. •... -
Page 20: Connecting A Pc Via Vga Cable
VGA connector on a PC. To receive a sound, connect an audio cable between the PC AUDIO IN socket on the • TV and AUDIO OUT jack on a PC. Connecting cables are not supplied. • www.goodmans.co.uk 15... -
Page 21: Watching Tv
Watching TV Turning the LCD Display On and Off Turning On After the LCD DISPLAY is connected, you can then turn on your LCD DISPLAY. Follow the instructions below to turn the display on: Step 1: Place supplied two (AAA) batteries into the remote control; make sure the batteries are oriented correctly. - Page 22 Step 3. Press the POWER button in the back of the display, or press the POWER button of the remote control to switch on the display. The indicator will light up green. www.goodmans.co.uk 17...
-
Page 23: First Time Installation
Turning Off When the TV is on, press the POWER button on the remote control to turn the TV off. After the TV is turned off, the indicator on the front will light up red. If you go away for a few days or will not use your TV for a long period of time, please unplug the power cord to turn the main power off. -
Page 24: Source Buttons
: switch to Analogue mode : switch to VGA / HDMI mode PC/HD : switch to CVBS / S-VIDEO / YUV mode (Composite, Y/C and VIDEO Component signal) : switch to SCART1 / SCART2 / SCART2 S SCART www.goodmans.co.uk 19... -
Page 25: Volume Control
Volume Control Using Volume Control Press VOL+ / VOL- to increase or decrease the sound volume. Using Mute At any time, users can temporarily turn off the sound by pressing the MUTE button. Press MUTE and the sound cuts off. Press MUTE again or VOL+ / VOL- to turn the sound back to the previous level. -
Page 26: Arc - Aspect Ratio Control
: Select this mode in a normal environment. Normal : Select this mode in a dark environment. Cinema : Select this mode in a bright environment. Dynamic NOTE: In VGA (PC) source, only the format of 16:9 and 4:3 modes are available. www.goodmans.co.uk 21... -
Page 27: Picture In Picture (Pip) Functions
Picture in Picture (PIP) Functions You can press the buttons on the remote to control the PIP functions. PIP control buttons : Press the button to select a mode of the PIP mode. ON / OFF Press repeatedly to change ON/OFF. : Press the button to move the sub picture from corner to corner POSITION on the TV screen. -
Page 28: Pip Mode
This table shows what types of sources can work in main picture and PIP picture. “Main” means main source and “Sub” means sub source. The symbol “O” means both main source and sub source can operate. SCART SCART SCART CVBS S-VIDEO HDMI Main SCART1 SCART2 SCART2 S CVBS S-VIDEO HDMI www.goodmans.co.uk 23... -
Page 29: General Controls & Adjustment
General Controls & Adjustment How to control On-Screen Display (OSD) OSD main menu can appear by pressing buttons either on remote control or the left side of the TV. You can use the remote control buttons to open the OSD main menu and change the settings for the TV. -
Page 30: Viewing The On-Screen Display (Osd)
Press P+ or P- to vertically select one sub-menu item, and then press OK to select. Press VOL- or VOL+ to make adjustments. Press MENU to return to the Main menu. Press EXIT to exit the menu. www.goodmans.co.uk 25... -
Page 31: Picture Setting
Picture Setting You may need to perform separate adjustments for brightness and contrast for the different modes. With the power on, in any mode. 1. Press Source button to choose desired source. 2. Press MENU. 3. Press VOL- or VOL+ to select “Video” and press P-. 4. -
Page 32: Sound Setting
Movie: Emphasize the live sound for movies. Music: Present enhanced sound quality for music. Individual*: Customized sound mode. Bass: Adjust Bass. Treble: Adjust Treble. NOTE: The “Bass” and “Treble” can be only adjusted when Equalizer is set in “Individual” mode. www.goodmans.co.uk 27... -
Page 33: Tuning In Tv Channels
Tuning in TV Channels If you have moved location use this method to re-tune the TV Step 1 stations. 1. Press TV Source Button. 2. Press MENU button. 3. Press VOL- or VOL+ to select “Tuning” and press P-. 4. Press P+ or P- to highlight APS. Press OK to enter the Sub-menu. -
Page 34: Channel Management
8. Press MENU to return to main menu, or press EXIT to exit the menu. Main menu Sub-menu Channel Name (corresponding to step 2) (corresponding to step 4) (corresponding to step 6) NOTE: To Sort or Delete, please select your preferred item in the sub-menu and follow above steps. www.goodmans.co.uk 29... -
Page 35: Child Lock In Tv
Child Lock in TV With the power on. 1. Press MENU. 2. Press VOL- or VOL+ to select “Preferences” and press 3. Press P+ or P- to highlight “Child Lock” and press OK. 4. Press VOL- or VOL+ to change the current status. 5. -
Page 36: Factory Reset
2. Press MENU. 3. Press VOL- or VOL+ to select “Tuning” and press P-. 4. Press P+ or P- to highlight “Factory Reset”. Press OK then finished. 5. If you want to exit the menu, press EXIT. Factory Reset www.goodmans.co.uk 31... -
Page 37: Preferences
Preferences With the power on, in any mode. 1. Press Source button to choose your desired source. 2. Press MENU. 3. Press VOL- or VOL+ to select “Preferences” and press P-. 4. Press P+ or P- to highlight one item. Press OK to enter the Sub-menu. -
Page 38: Connectivity: Pc / Scart Setting
Auto Image, users have to use H position, V Position, Phase or Clock to readjust the picture. If your resolution is 1024x768, 1280x768, 1360x768, 640x350 or 720x400, please refer to "Resolution Adjustment" in page 38 to select proper resolution. www.goodmans.co.uk 33... -
Page 39: Information
Resolution Adjustment This message of your current PC resolutions and frequency appears, when PC is connected. With the power on, with PC connected. Press P+ or P- in the remote control to highlight one item. Press OK in the remote control. Note: 1. -
Page 40: Teletext
The first page number indicates your selection, while the second shows the current page being displayed. Step3. Press TELETEXT to toggle text mode between TEXT / MIX / PAT / OFF. TEXT mode MIX mode PAT mode www.goodmans.co.uk 35... -
Page 41: Teletext Page Selection
TELETEXT Page Selection Step1. Enter the required TELETEXT page as a three digit number. Display: The selected page number is displayed at the top left corner of the screen. The TELETEXT page counter searches until the selected page number is located, so that the desired page is displayed on the screen. Step2. - Page 42 Step1. Press the button on the remote to stop the automatic page change. Display: The STOP symbol will be displayed at the top left-hand corner on the screen and the automatic page change will be stopped. Step2. Press the button again to continue. www.goodmans.co.uk 37...
- Page 43 INTERRUPT In the TELETEXT mode, pressing the button on the remote will switch the screen to the TV mode while waiting for the text page you required. Step1. Select required page number in TELETEXT mode. Step2. Press the button on the remote to switch to TV mode while waiting for the text page.
-
Page 44: Troubleshooting
Make sure the Contrast/ Brightness is properly adjusted. Make sure all external devices are connected properly. There is no sound. Make sure the volume is not set to minimum. Make sure the sound is not set to mute. www.goodmans.co.uk 39... - Page 45 There is no picture or sound, just noise. The reception may be weak. Make sure the aerial is not disconnected. The picture is not clear. The reception may be weak. Make sure the aerial is not disconnected. The picture is too bright. Check Contrast/Brightness adjustment.
-
Page 46: Remote Control Does Not Work
Place the unit as far apart as possible from devices that may cause possible interference. The picture is not sharp Check the colour adjustment. Check the Sharpness adjustment. www.goodmans.co.uk 41... -
Page 47: Safety And Regulatory Information
Safety and Regulatory Information Repair • Leave all repairs of your LCD display to authorised and qualified personnel only. • Should a repair be necessary, please contact one of our authorized service partners only. Notes for Service Engineers • Before opening the housing, disconnect the product from all power sources and remove any connecting cables. -
Page 48: Pc Input Preset Timing Table
WXGA 47.73 1676 136 795 1280*768 WXGA 47.7 85.5 1792 1360 112 795 1360*768 The above table is only for your reference. Messages shown in LCD DISPLAY will be varied according to types of PC and their resolutions. www.goodmans.co.uk 43... -
Page 49: Specifications
Specifications GTVL32W25HD Model 32" Screen Size (diagonal) 10W x 2 Audio Output 16:9 Aspect Ratio PAL / SECAM / DVB-T TV System PAL / SECAM / NTSC Video Playback 1366 x 768 (WXGA) @ 60Hz Panel Resolution Audio & Video In (S-Video, Component, Composite, Audio L/R), Antenna In, Connectivity Interface (Rear) -
Page 50: Tv Signal Systems
TV Signal Systems www.goodmans.co.uk 45... - Page 52 47...
- Page 54 49...
-
Page 56: Guarantee
Guarantee www.goodmans.co.uk 51... - Page 57 GTVL32W25HDF...
