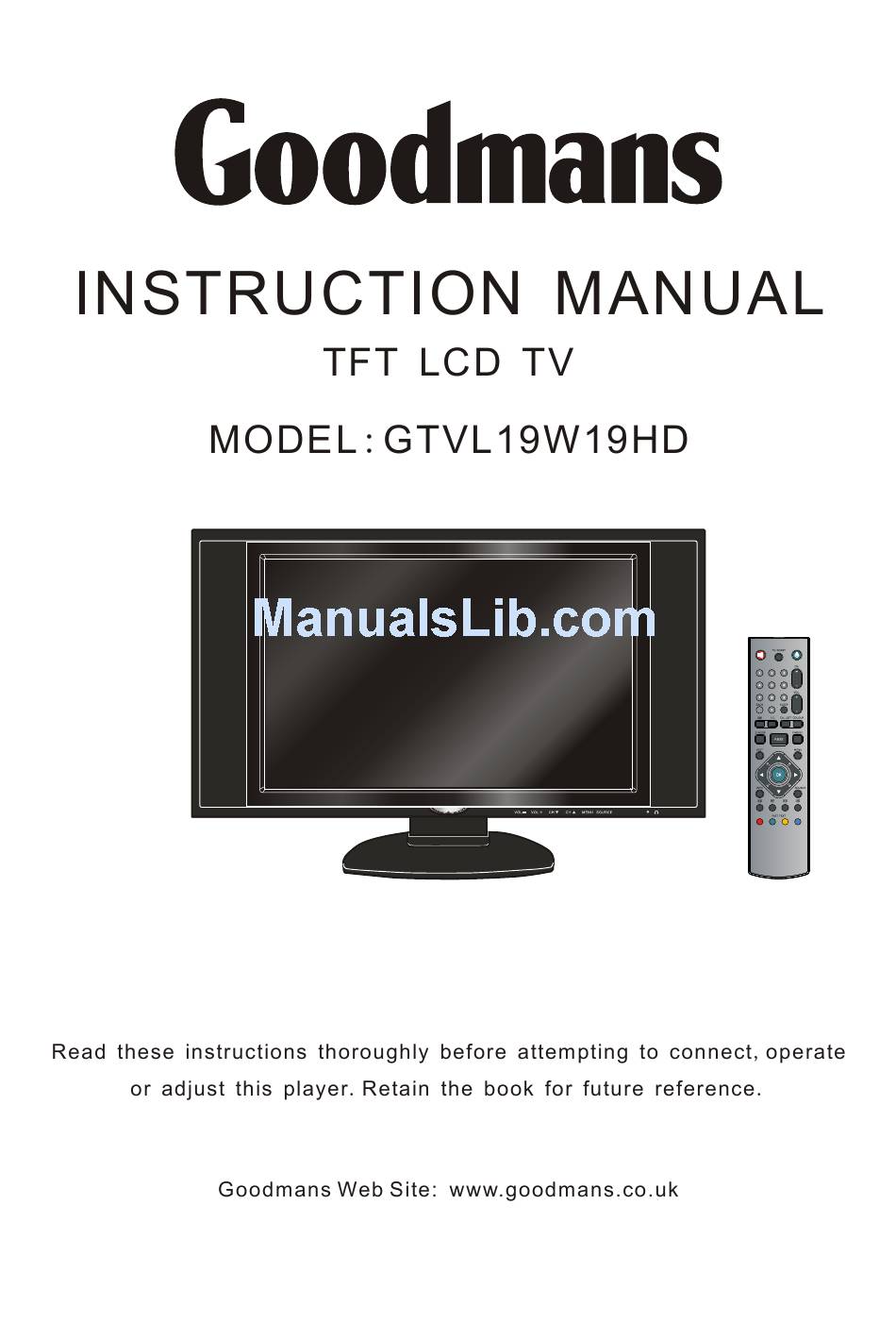

Goodmans gtvl19w19hd Instruction Manual
Goodmans gtvl19w19hd Instruction Manual

Goodmans gtvl19w19hd Instruction Manual

Tft lcd tv

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the gtvl19w19hd and is the answer not in the manual?

Questions and answers

Summary of Contents for Goodmans gtvl19w19hd

  • Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
  • Page 3 MAINS PLUG WIRING PREFITTED MAINS PLUGS For your convenience a mains plug has been fitted to this appliance. For your safety please observe the following information. 1. Should the fuse in the plug, fall remove the plug from the wall socket and replace the fuse with a 3 Amp ASTA approved to BS 1362 fuse.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Do not attempt to service the equipment yourself. Opening and removing the covers may expose you to dangerous voltage or any other hazards and may void your warranty. Refer service from qualified personnel. Do not place or drop any other objects on top. Do not insert anything into the ventilation holes of your equipment.Inserting any metal or flammable objects may result in fire or electric shock.
  • Page 5 WARNINGS ● Unqualified attempts to repair this TV are not allowed. Refer repairs to this unit to a qualified technician only. ● Do not disassemble this unit. There are dangerous-voltage parts inside that may cause electric shock even after power is disconnected. ●...
  • Page 6: Table Of Contents

    CONTENT PREPARATION ......................6 Features ................................6 Package Contents ............................... 7 LCD TV .................................. 8 Front View ................................8 Rear View ................................9 Remote Control ............................... 10 Setting up your LCD TV............................13 Using your LCD TV............................... 14 INSTALLATION ...................... Connecting a TV Cable or Aerial.........................
  • Page 7: Preparation

    PREPARATION Features Features High Brightness / Contrast Image Brightness: 0 cd/m Contrast Ratio: 00: VGA Support: 60x80/60Hz~0x768/7Hz Multimedia socket VIDEO in socket S-VIDEO in socket SCART socket (RGB, CVBS ,CVBS+RGB,Y/C input/ CVBS output) Y Pb Pr in socket VGA in socket HDMI in socket WSS (Wide Screen Scale ) Function This function can automatically convert and display any aspect ration (: / Wide) TV...
  • Page 8: Package Contents

    Package Contents Once you open the box, make sure all of the following contents are included.If you’re missing any items, please contact your dealer. VOL.- VOL.+ MENU SOURCE LCD TV Remote control/ Video Cable Audio Cable AAA batteries Power Cord User Guide (you are reading it) These items are all you need to set up and operate the LCD TV...
  • Page 9: Lcd Tv

    LCD TV Front View Infrared Receiver The LED light indicates when the LCD TV is activated (Red = standby, Green Power Button On). Turns the LCD TV on and off. HEADPHONE Connects to the external headphone for private listening. SOURCE Press to select different input signal sources.
  • Page 10: Rear View

    LCD TV Rear View Power Switch. PC AUDIO IN AC IN PC AUDIO IN ITEM DESCRIPTION Connects the AC power cord to this socket./ Make sure that this switch 1 AC IN / Power Switch is in the ON position (Red LED light will show on the bottom centre of the TV).
  • Page 11: Remote Control

    Remote Control POWER Turns the LCD TV on and into standby mode . TV/SCART Mutes and restores your LCD TV sound. TV/SCART Pressing enter TV or SCART Mode. Select and switch to a channel by using 0-9 buttons. BACK Returns to previously selected channel.
  • Page 12 Remote Control TV/SCART INFO Pressing once displays a variety of information such as the current channel and the input source. Cycles among the different input signal sources: TV AV1(SCART) AV2(S-VIDEO) AV3(CVBS) AV4(Y Pb Pr) AV5(VGA) AV6(HDMI) Accesses the TELETEXT items or corresponding pages.
  • Page 13 Remote Control Installing the batteries in your remote control Pull the tab of the back cover and pull up on the cover to open the batter y compar tment of the remote control. Inser t two A A A size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the batter y compar tment.
  • Page 14: Setting Up Your Lcd Tv

    Setting Up Your LCD TV How to install the TV Stand Follow the instructions below to install the TV stand: Open the box, and make sure all necessary parts are in the box. LCD TV Stand Cover an even stable surface with a soft cloth. Place the LCD TV unit face-down on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown: Then push until stand clicks into the LCD TV’s stand socket.
  • Page 15: Using Your Lcd Tv

    Using your LCD TV The Power button on the front panel and also on the remote control is only used for powering up and switching the T V to standby mode,it does not disconnect the device from the mains supply. To completely disconnect the main voltage, please switch off the power switch on the rear of the T V, or remove the power plug from the socket.
  • Page 16: Installation

    INSTALLATION Refer to the owner’s manual of the external equipment to be connected.When connecting external equipment, do not connect any AC power cords to wall outlets until you have completed all the connections. Connecting a TV aerial Basic Connection: Connecting cable or aerial . Make sure the power switch is switched of f.
  • Page 17: Connecting A Dvd Player

    Connecting a DVD Player For best picture quality, if your DVD player has (Y Pb Pr) video output, Please use component cable instead of a standard video or S-video cable (cables not supplied). Otherwise connect using a standard Scart cable (not supplied). PC AUDIO IN Audio Audi...
  • Page 18: Connecting A Vcr & A Video Camera

    Connecting a VCR & a Video Camera PC AUDIO IN Audio Audi ideo Video/Audio Cable METHOD A (AV) Use an Audio cable to connect the VCR’s/ the VIDEO CAMERA’s audio output sockets to your LCD TV. Use a S-Video cable to connect your LCD TV and VCR player/ VIDEO CAMERA. METHOD B (AV) Use an A/V cable to connect the VCR’s/ VIDEO CAMERA’...
  • Page 19: Connecting A Tv Box And Satellite Receiver

    Connecting a TV Box and Satellite Receiver Freeview / Sky boxes will usually have scart cables supplied with them. Connect the scart cable to the scart socket on the rear of the TV. PC AUDIO IN Audio Audi ideo HDMI CABLE Video/Audio Cable VGA CABLE Method A(AV) :...
  • Page 20: Hdmi

    HDMI HDMI -This TV can accept High-Definition Multimedia Interface(HDMI) or Input of Digital Visual Interface(DVI). -This TV SET supports HDCP(High-bandwidth Digital Content Protection) Protocol for TV SET (480p, 720p, 1080i) modes. -When you connect to the output of an HD ready player (DVD Player, Set Top Box or PC) switch to the AV6(HDMI) function and the TV will automatically detect the resolution used by the HDMI source.
  • Page 21: Using The Features

    USING THE FEATURES Basic Operation Tuning in the TV channels After connecting an aerial to your LCD TV and connecting the mains cable to the TV and 230VAC mains socket, turn the POWER SWITCH of rear TV on, a red light will show on the front centre panel of the TV.
  • Page 22: Osd Menu Operation

    OSD Menu Operation The main menu provides access to the following menus: Video Adjust picture setting such as picture mode, contrast, brightness,sharpness colour and advanced. Audio Adjust sound option and effects. Setup Adjust colour standard, sound standard, APS, Manual search, Channel setup.
  • Page 23: Audio

    Video OPTION DESCRIPTION Advanced Display Mode Allows you to select the display mode to be Wide, 4:3, Original, Zoom. Allows you to adjust the (Dynamic Contrast Enhancemen) to be off, low, mid, high. Blue Allows you to adjust the blue Stretch stretch.
  • Page 24: Setup

    Setup Use this Setup menu to select Colour Standard, Sound Standard, APS, Manual Search, Channel Setup. OPTION DESCRIPTION Colour Allows you to select the colour Standard standard : AUTO,PAL, SECAM. UK = PAL Setup Sound Allows you to select the sound standard : DK, BG, I, L/L’.
  • Page 25: Preferences

    Preferences Use this Preferences setting menu to set up some features: OSD, Blue Screen, Childlock, Sleep Timer, OSD Timer, OSD Reset. OPTION DESCRIPTION Language : Allows you to select the OSD to be English, German, French, Spanish, Italian, Dutch, Portugese, Polish Russian.
  • Page 26: Troubleshooting

    TROUBLESHOOTING Before contacting Goodmans Helpline, check the following chart for a possible cause of the trouble you are experiencing and for a solution. PROBLEM SOLUTION □ TV will not turn on Make sure the power cord is plugged in. □...
  • Page 27: Specifications

    SPECIFICATIONS Model GTVL19W19HD Panel System 19 inch LCD panel Display Resolution 1440 pixels (horizontal) x 900 pixels (vertical) Television System PAL- I Brightness 450 cd/m Contrast Ratio 500:1 Inputs/Output SCART HDMI PC Audio In Video In S-video In PHONES Y Pb Pr...
  • Page 28 Display Mode For the display modes listed below, the screen image has been optimized during manufacture. VGA TIMING Dot X Line Horizontal Frequency(kHz) Vertical Frequency(Hz) 640 x 480 31.46 59.94 640 x 480 37.86 72.80 640 x 480 37.50 75.00 800 x 600 37.87 60.31...
