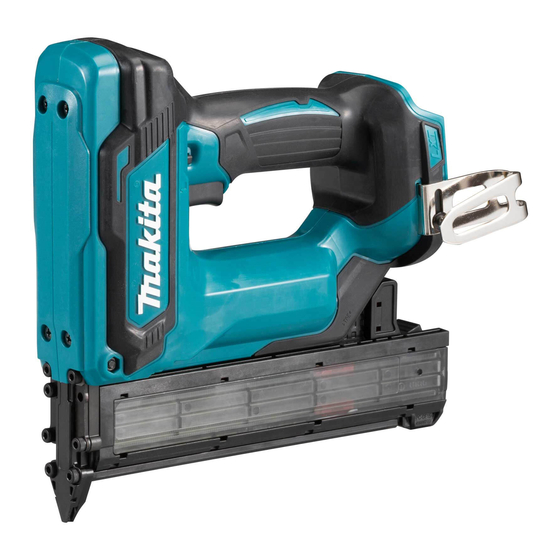

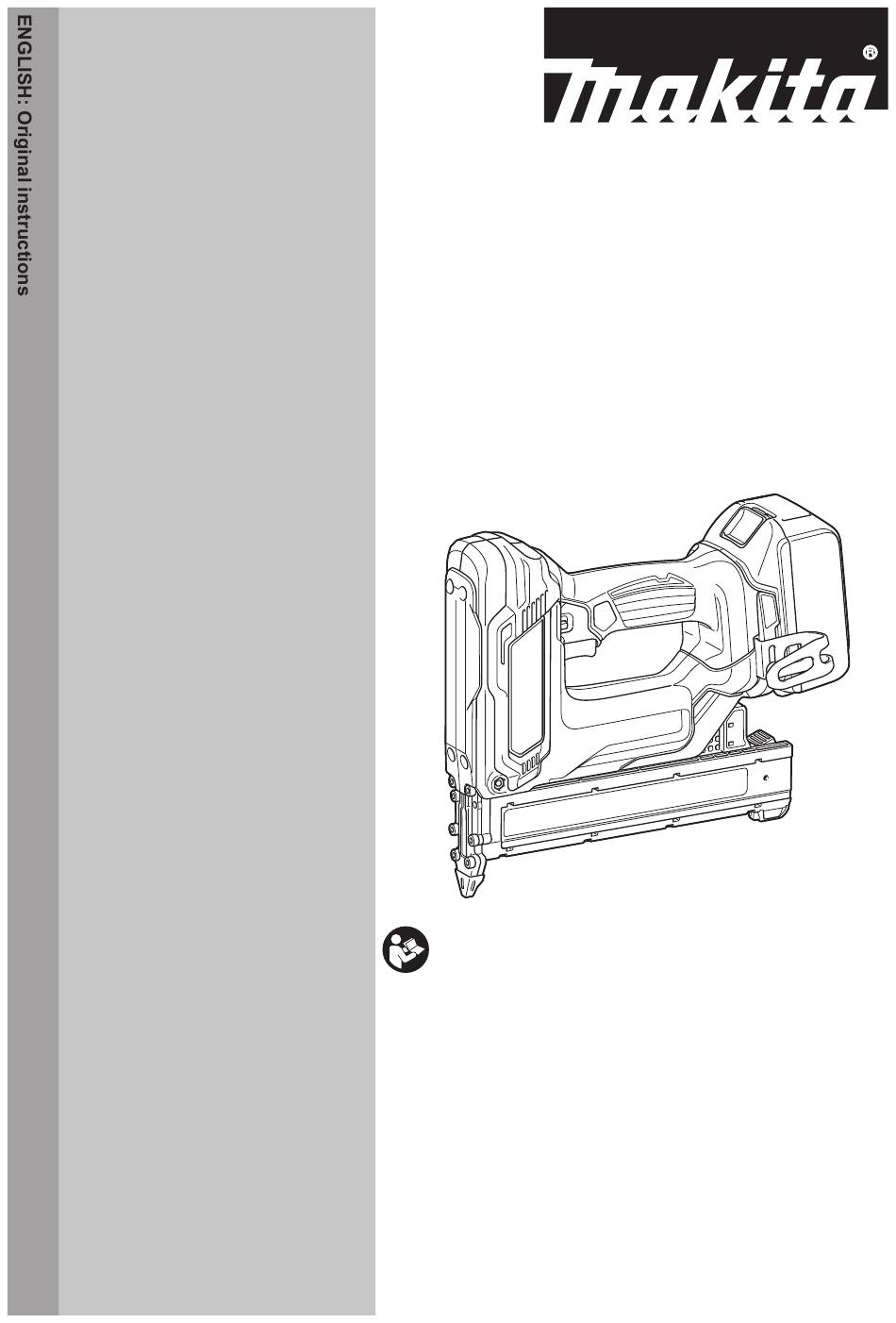

- Page 1 INSTRUCTION MANUAL Cordless Brad Nailer DFN350 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DFN350 Nail size 18Ga x 15, 20, 25, 30, 35 mm Nail magazine capacity 100 pcs. Dimensions with BL1860B, without hook (L x W x H) 257 mm x 79 mm x 228 mm Rated voltage D.C. 18 V Net weight 2.1 - 2.4 kg •... -
Page 3: Ec Declaration Of Conformity
Personal Safety EC Declaration of Conformity Stay alert, watch what you are doing and use common sense when operating a power tool. For European countries only Do not use a power tool while you are tired or The EC declaration of conformity is included as Annex A under the influence of drugs, alcohol or med- to this instruction manual. - Page 4 Power tool use and care Do not use a battery pack or tool that is dam- aged or modified. Damaged or modified batteries Do not force the power tool. Use the correct may exhibit unpredictable behaviour resulting in power tool for your application. The correct fire, explosion or risk of injury.
- Page 5 Makita warranty for the Makita tool and charger. Important safety instructions for battery cartridge Tips for maintaining maximum...
-
Page 6: Functional Description
Overload protection FUNCTIONAL When the tool/battery is operated in a manner that causes DESCRIPTION it to draw an abnormally high current, the tool automatically stops without any indication. In this situation, turn the tool off and stop the application that caused the tool to become CAUTION: Always be sure that the tool is overloaded. - Page 7 Trigger-lock button CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. CAUTION: When not operating the tool, depress the trigger-lock button from B side to lock the switch trigger in the OFF position.
- Page 8 Set a nail strip so that the nail tips touch the bot- NOTE: Use a dry cloth to wipe the dirt off the lens of tom of the magazine and slide the nail strip toward the the lamp. Be careful not to scratch the lens of lamp, or firing opening.
-
Page 9: Operation
Hook OPERATION CAUTION: Do not hang the hook from the Testing the safety system waist belt. Dropping the nailer, which is caused by the hook accidentally coming out of place, may cause unintentional firing and result in personal injuries. WARNING: Make sure all safety systems are in working order before operation. -
Page 10: Removing Jammed Nails
To drive the next nail, release your finger from the Anti dry fire mechanism switch trigger once, and then repeat the step 2 and 3 above. WARNING: Always make sure that your fingers are not placed on the switch trigger or the contact element and the battery cartridge is removed before loading the nailer. -
Page 11: Maintenance
Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885709A229 www.makita.com 20190107...
