Hurricane™ 1100
F-1100
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet HURRICANE 1100

Summary of Contents for Chauvet HURRICANE 1100

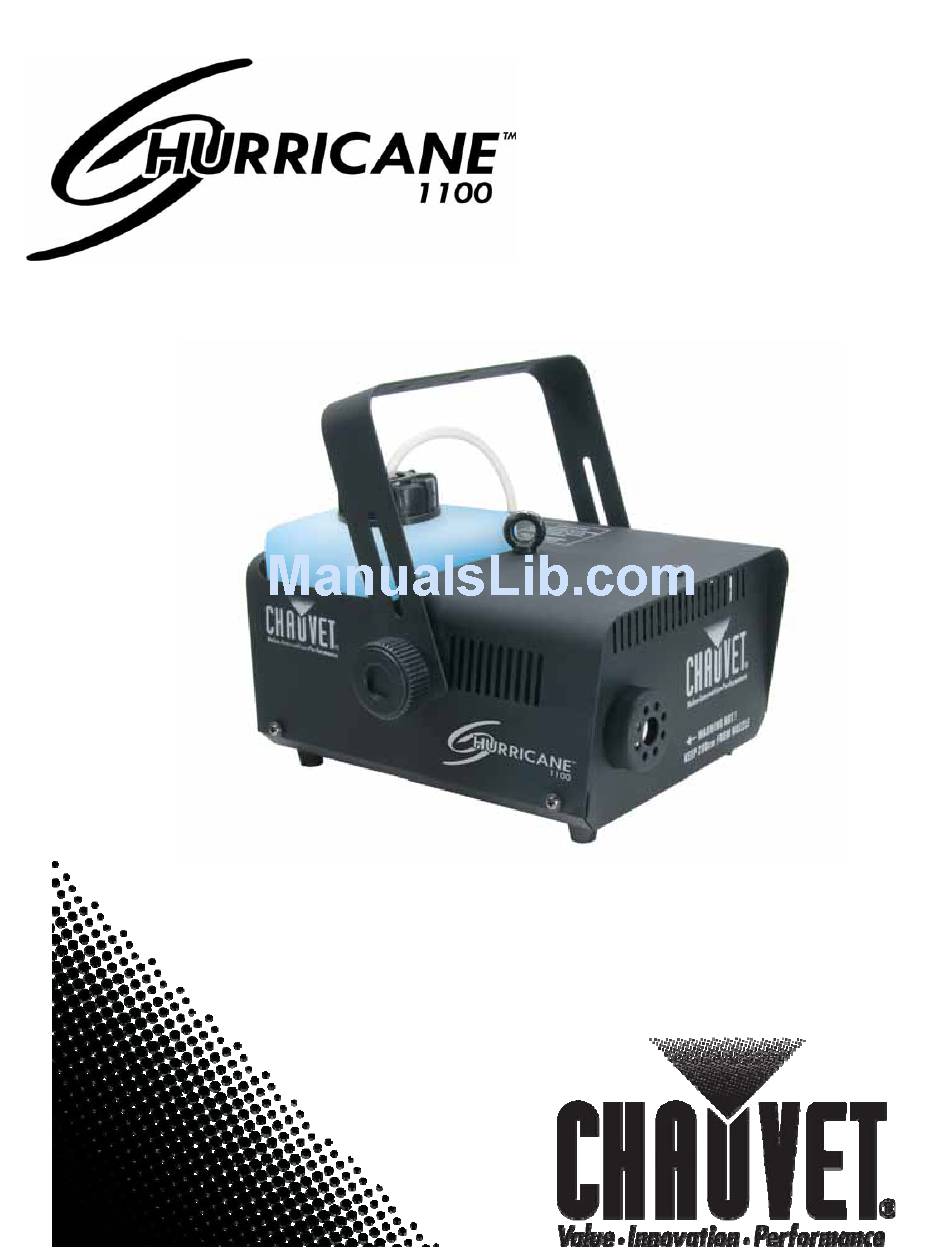

  • Page 1 Hurricane™ 1100 F-1100 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ... 3  What Is Included ... 3 Unpacking Instructions ... 3 Claims ... 3 Product at a Glance ... 3 Safety Instructions ... 4 2. Introduction ... 5  Product Overview ... 5 Product Dimensions ... 5  3.

  • Page 3: Before You Begin

    CHAUVET®. The customer must submit the report upon reception of the damaged merchandise. Failure to do so in a timely manner may invalidate the customer’s claim with the carrier.

  • Page 4: Safety Instructions

    In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1100. Make sure you use FCQ regularly to increase the life of your  ...

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Hanging bracket Fluid container Tilt Adjustment knob Manual Fog button Manual Controller Wireless Controller Power input (hardwired) Hurricane™ 1100 User Manual Fuse holder September 7, 2011 Safety cable eye bolt Heater Nozzle Low Fluid indicator Fluid level indicator...

  • Page 6: Product Dimensions

    Product Dimensions 242 mm / 9.5 in 258 mm / 10.2 in Hurricane™ 1100 User Manual September 7, 2011...

  • Page 7: Setup

    3. S ETUP AC Power To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. A fixture’s listed current rating is its average current draw under normal conditions. All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

  • Page 8: Mounting

    Mounting Orientation This fixture should only be mounted/used on a flat surface. This fixture may not be tilted. Rigging It is important never to obstruct the vents’ pathways. Mount the fixture using, a suitable “C” or “O” type clamp.  When selecting installation location, take into consideration the fluid reservoir access and routine maintenance.

  • Page 9: Operating Instructions

    4. O PERATING This mode will allow you to control the fogger manually, set the fog machine to run continuously, or to set the fog machine to run off bursts with adjustable interval and duration settings. Manual Remote Operation (FC-M) (Standard) Plug in the fog machine to power.

  • Page 10: Wireless Controller (Fc-W) (Optional)

    Wireless Controller (FC-W) (Optional) This mode will allow you to control the fogger using the optional wireless controller. This consists of the transmitter and the receiver. You may control up to 4 independent fog machines, or many more if you run them simultaneously. See the below instructions on setting up your fogger to operate with the FC-W.

  • Page 11: General Troubleshooting

    Fog machine is not heating up Remote does not work Fluid indicator states no fog, but the container if full. If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location listed below. Contact Information  ...

  • Page 12: Appendix

    - Always dry the parts carefully. - Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1100. Make sure you use FCQ regularly to increase the life of your fogger.

  • Page 13: Returns Procedure

    Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without a RMA # will be refused. Call CHAUVET and request a RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.

  • Page 14: Technical Specifications

    ECHNICAL PECIFICATIONS WEIGHT & DIMENSIONS Length ... 10.2 in (258 mm) Width ... 9.5 in (242 mm) Height ... 8.9 in (225 mm) Weight ... 8.3 lbs (3.8 kg) POWER AC Power ... 120V 60Hz AC or 230V 50Hz Fuse (115V) ... 8A 250V Power Consumption ...
