Summary of Contents for Chauvet Hurricane 1000

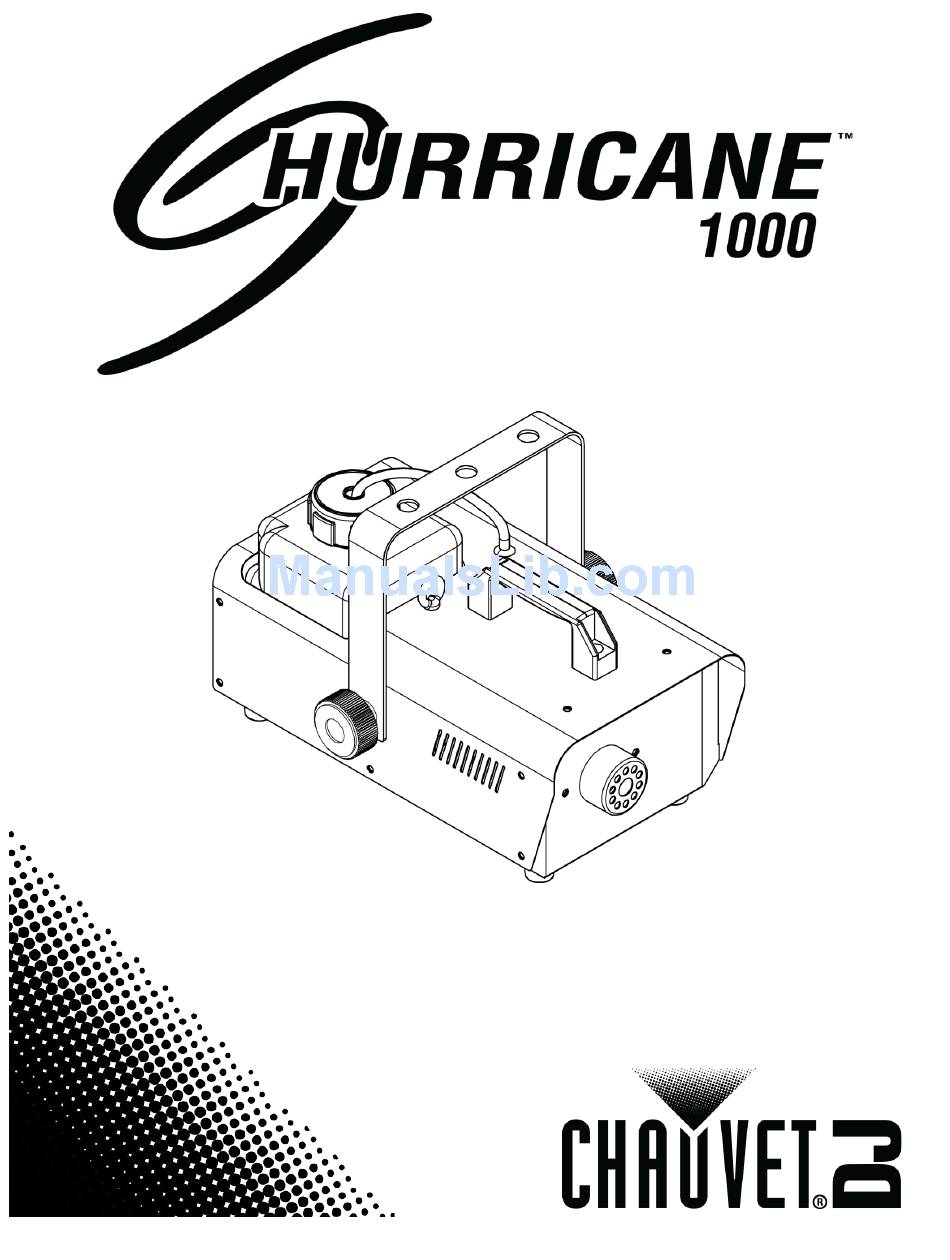

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ............................... 3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance .......................... 4 Safety Notes ............................. 4 2.
  • Page 3: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery. Text Convention Meaning 1—512...
  • Page 4: Product At A Glance

    Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1000. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your fogger.
  • Page 5: Introduction

    2. I NTRODUCTION Overview Fluid Level Indicator Fog Fluid Tank Remote Connector Manual-Fog Button Fuse Holder Back Panel View Power Cord Hurricane 1000 User Manual Rev. 1 Page 5 of 14...
  • Page 6: Dimensions

    Dimensions 8.2 in 208 mm 8.9 in 225 mm 11.9 in 301 mm Page 6 of 14 Hurricane™ 1000 User Manual Rev. 1...
  • Page 7: Setup

    3. S ETUP AC Power This Hurricane 1000 has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 8: Mounting

    The rubber feet also serve as floor supports and allow for surface mounting. When mounting the product on the floor, make sure that the product and cables are away from people and vehicles. Mounting Clamp (such as CLP-15 or CLP-15N clamp from Chauvet) Mounting Bracket Safety Cable (works with CH-05 from Mounting Diagram...
  • Page 9: Operation

    4. O PERATION Remote or The Hurricane™ 1000 can be operated manually, or with the included wired manual Manual remote control (FC-M) or wireless remote (FC-W). The Manual button is located on the rear of the unit. See the product Overview. Operation The FC-M wired manual remote control allows the user to start and stop the fog output.
  • Page 10: Technical Information

    NFORMATION Fogger Do not allow the fogger to become clogged. After every 40 hours of continuous operation, use CHAUVET® Fog Cleaner Quart (FCQ) through the system to prevent the Maintenance accumulation of particulate matter in the heating element. The recommended cleaning procedure is as follows.
  • Page 11: General Troubleshooting

    Turn off the product for 5 seconds, and then turn it back on. line Repeat as necessary. No output or short output Note: After more than 10 attempts, contact Customer Service. Clean thoroughly with CHAUVET® FCQ. For full Incorrect fluid instructions, see Fogger Maintenance. Refill with CHAUVET® water-based fog fluid.
  • Page 12: Technical Specifications

    7. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 11.9 in (301 mm) 8.9 in (225 mm) 8.2 in (208 mm) 5.8 lb (2.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power...
  • Page 13: Returns

    If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux.
  • Page 14: Contact Us

    (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web www.chauvetlighting.co.uk...
