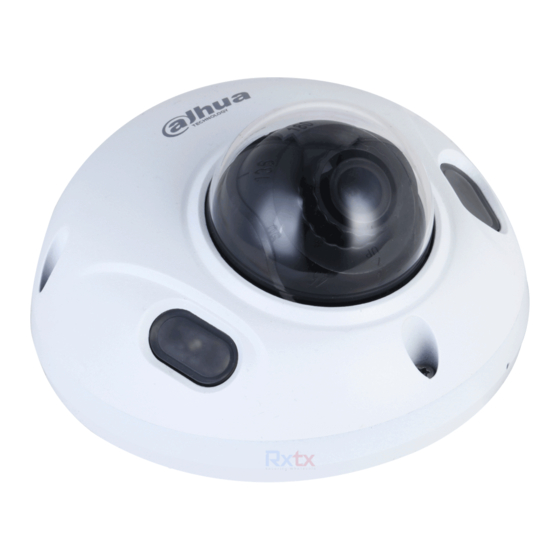

- Page 1 Dome Network Camera Quick Start Guide V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operations of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide ● Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ● All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword .........................................I Important Safeguards and Warnings ............................. III 1 Introduction......................................1 1.1 Cable ......................................... 1 1.2 Connecting Alarm Input/Output ............................2 2 Network Configuration ..................................4 2.1 Initializing the Camera ................................4 2.2 Changing the Device IP Address ............................6 2.3 Logging in to the Web Page .............................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and prevent short circuits from occurring. For details, see the FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port name Description ●... -
Page 9: Connecting Alarm Input/Output
Quick Start Guide Port name Description Includes alarm signal input and output ports, the number of Alarm I/O I/O ports might vary on different devices. For detailed information, see Table 1-2. Table 1-2 Description of alarm I/O port Port Name Description Receives the switch quantity signal of external alarm sources. - Page 10 Quick Start Guide default output signal is high-level (external pull-up voltage). The default output signal switches to low- level when an alarm is triggered (As long as the operating current is below 300 mA, the output low-level voltage is lower than 0.8 V). ●...
-
Page 11: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP configurations can all be managed with the ConfigTool or through the web page. For more information, see the web operation manual. ● Device initialization is available on select models, and is required at first-time use and after the device is reset. - Page 12 Quick Start Guide the system, update or restart the device, and more. Step 5 Click OK. Step 6 Select one or more uninitialized cameras, and then click Initialize. Step 7 Select the devices to be initialized, and then click Initialize. ●...
-
Page 13: Changing The Device Ip Address
Quick Start Guide Figure 2-3 Device initialization Step 9 Select Easy4ip or Auto-check for updates as needed. Step 10 Click OK to initialize the device. For more information, click Step 11 Click Finish. 2.2 Changing the Device IP Address ● You can change the IP address of one or more devices at a time. This section is based on changing IP addresses in batches. -
Page 14: Logging In To The Web Page
Quick Start Guide Figure 2-4 Modify IP address Step 3 Select Static mode, and then enter start IP, subnet mask, and gateway. ● The same IP address will be set for multiple devices if you select the Same IP checkbox ●... -
Page 15: Installation
Quick Start Guide 3 Installation 3.1 Packing List ● Tools required for installation, such as the electric drill, are not included in the package. ● The operation manual and information on the tools are on the disk or the QR code. Figure 3-1 Packing list 3.2 Dimensions Figure 3-2 Dimensions (mm [inch]) -
Page 16: Installing The Camera
Quick Start Guide 3.3 Installing the Camera 3.3.1 Installation Methods Figure 3-3 Installation methods 3.3.2 (Optional) Installing the SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. ●... -
Page 17: Installing The Waterproof Connector (Optional)
Quick Start Guide Figure 3-5 Cable going through the side cable tray Figure 3-6 Cable going through the mounting surface 3.3.4 Installing the Waterproof Connector (Optional) This section is only necessary if a waterproof connector is included in your package, and the device is being installed outdoors. -
Page 18: Adjusting The Lens Angle
Quick Start Guide Figure 3-7 Install the waterproof connector 3.3.5 Adjusting the Lens Angle Figure 3-8 Adjust the lens angle... - Page 19 Quick Start Guide...
