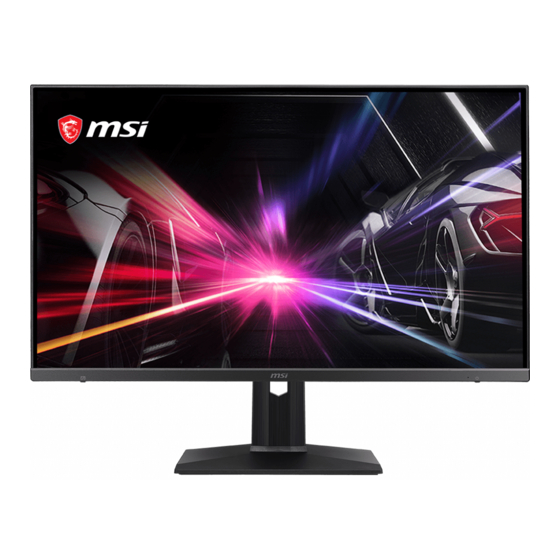

  • Page 1 Optix Series LCD Monitor Optix MAG271R (3CA1) Optix MAG271V (3CA1)
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii 1. Getting Started ........... 1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...
  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...
  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...
  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Adapter & Power Cord 5� HDMI Cable 6� DisplayPort Cable 7� USB Upstream Cable (to enable the USB ports on the monitor) 8� Quick Start Guide 9� Warranty Card * Contact your place of purchase or local distributor if any of the items is damaged or missing�...
  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand Optix MAG271R (3CA1) Option 1 IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit�...
  • Page 12 Optix MAG271R (3CA1) Option 2 IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit�...
  • Page 13 Getting Started Optix MAG271V (3CA1) IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit� 1�...
  • Page 14: Adjusting The Monitor

    This monitor is designed to maximize your viewing comfort with its adjustment capabilities such as tilt, lift and swivel� IMPORTANT Avoid touching the display panel when adjusting the monitor� Optix MAG271R (3CA1) Option 1 130mm Optix MAG271R (3CA1) Option 2 130mm...
  • Page 15 Getting Started Optix MAG271V (3CA1)
  • Page 16: Monitor Overview

    Monitor Overview Power Button Navi Key Kensington Lock Power Jack...
  • Page 17 PC and monitor� Once this cable is connected, the To PC USB Type A Downstream Ports on the monitor will be ready for use� USB Type A Downstream Port DisplayPort HDMI Port Headphone Jack MSI Function Key...
  • Page 18: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/DisplayPort cable from the monitor to your computer� 3� Assemble the monitor power adapter & power cord� (Figure A) 4� Connect the power adapter to the monitor power jack� (Figure B) 5�...
  • Page 19: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...
  • Page 20: Navi Key

    Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key...
  • Page 21 OSD Setup The Navi Key default settings are as follows� Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Middle Button OSD Main Menu ■ Entering submenus ■ Confirming a selection or setting Game Mode ■...
  • Page 22 Users may enter the OSD Menu to customize their own Navi Key Hot Keys. More Hot Key options are as below� Navi Key Hot Key Options Operations Brightness ■ Press Middle Button to save value and exit� ■ Press Up and Down Buttons to adjust� ■...
  • Page 23: Osd Setup Via Navi Key

    OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences� h GAMING 1st Level Menu 2nd/3rd Level Menu...
  • Page 24 1st Level Menu 2nd/3rd Level Menu Description Anti Motion Blur ■ Brightness cannot be adjusted when Anti (OFF) Motion Blur is set to ON� ■ When Response Time is set to Fastest with (ON) at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled�...
  • Page 25 OSD Setup h Professional 1st Level Menu 2nd Level Menu Description Pro Mode User Default mode� All items can be adjusted by users� Reader All items can be adjusted by users� Cinema All items can be adjusted by users� Designer All items can be adjusted by users�...
  • Page 26 h Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ■ Users can adjust Brightness in User, RTS, RPG and Reader mode� ■ Brightness will be grayed out when Anti Motion Blur and HDCR are enabled� Contrast 0-100 ■ Users can adjust Contrast in any Mode� Sharpness ■...
  • Page 27 OSD Setup h Navi Key 1st Level Menu 2nd Level Menu Description ■ Up Button default is Game Mode� ■ Down Button default is Screen Assistance� Brightness ■ Left Button default is Alarm Clock� Game Mode ■ Right Button default is Input Source� Screen Assistance ■...
  • Page 28 h Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ■ Language factory default is English� ■ Users have to press the Middle Button to confirm English and apply the Language setting� Français ■ Language is an independent setting� Users’ own Deutsch language setting will override the factory default�...
  • Page 29: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...
  • Page 30: Specifications

    Specifications Model Optix MAG271R Optix MAG271R Optix MAG271V (3CA1) Option 1 (3CA1) Option 2 (3CA1) Size 27 inch Curvature Panel Type Resolution 1920 x 1080 @165Hz Aspect Ratio 16:9 Brightness (nits) Contrast Ratio 3000:1 Refresh Rate 48~165Hz Response Time 1ms (MPRT)
  • Page 31 Appendix Model Optix MAG271R Optix MAG271R Optix MAG271V (3CA1) Option 1 (3CA1) Option 2 (3CA1) Environment Operating Temperature: 0°C to 40°C Humidity: 20% to 90%, non-condensing Altitude: 0 ~ 5000m Storage Temperature: -20°C to 60°C Humidity: 10% to 90%, non-condensing...
  • Page 32: Preset Display Modes

    Preset Display Modes Optix MAG271R / Optix MAG271V Resolution HDMI 640x480 @60Hz 640x480 @72Hz 640x480 @75Hz 800x600 @56Hz 800x600 @60Hz 800x600 @72Hz 800x600 @75Hz 1024x768 @60Hz 1024x768 @70Hz 1024x768 @75Hz 1280x1024 @60Hz 1280x1024 @75Hz 1440x900 @60Hz 1680x1050 @60Hz 1920x1080 @60Hz...
  • Page 33: Troubleshooting

    Appendix Troubleshooting The power LED is off. ■ Press the monitor power button again� ■ Check if the monitor power cable is properly connected� No image. ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
