Summary of Contents for MSI Optix G273QF

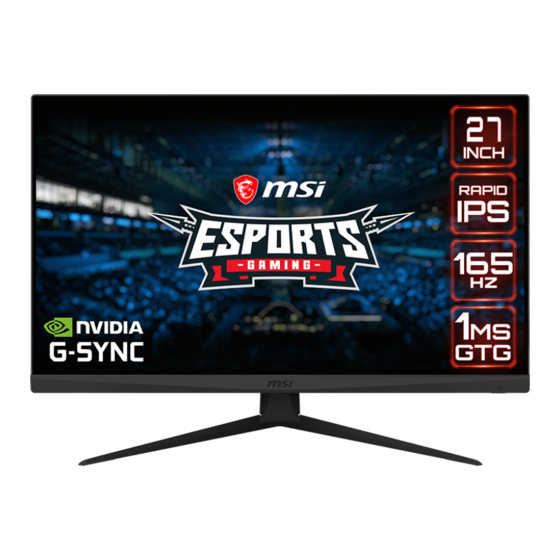

- Page 1 Optix Series LCD Monitor Optix G273QF (3CA8) Optix G273QPF (3CA8)
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................8 Connecting the Monitor to PC ................10 OSD Setup ........................11 Navi Key ........................ 11 Hot Key ........................11 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor Optix G273QF / Optix G273QPF Quick Start Guide Registration Card Documentation Warranty Card... -
Page 4: Installing The Monitor Stand
Place the monitor on a soft, protected surface to avoid scratching the display panel. Do not use any sharp objects on the panel. ∙ The groove for installing the stand bracket can also be used for wall mount. Please ∙ contact your dealer for proper wall mount kit. Optix G273QF Getting Started... - Page 5 Optix G273QPF Getting Started...
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ ∙ Please slightly tilt the monitor backwards before pivoting it. Optix G273QF Getting Started... - Page 7 Optix G273QPF 130mm Getting Started...
-
Page 8: Monitor Overview
Monitor Overview Getting Started... - Page 9 Power Button Navi Key Kensington Lock DisplayPort HDMI Port Headphone Jack Power Jack Getting Started...
-
Page 10: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. -
Page 11: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 12: Osd Menus
OSD Menus Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ All items can be adjusted by users. ∙ Use Up or Down Button to select and preview mode effects. Racing ∙ Press the OK Button to confirm and apply your mode type. - Page 13 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ When MPRT is enabled, Brightness cannot be enabled and will be grayed out. ∙ MPRT and HDCR cannot be enabled simultaneously. ∙ Response time will be grayed out while MPRT is enabled. ∙...
-
Page 14: Professional
1st Level Menu 2nd/3rd Level Menu Description Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ DisplayPort or HDMI default is ON and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate. ∙ MPRT will be disabled if Adaptive- Sync is enabled. -
Page 15: Image
1st Level Menu 2nd Level Menu Description Image ∙ Image Enhancement enhances image Enhancement edges to improve their acutance. Weak ∙ Users can adjust Image Enhancement in any mode. Medium Strong Strongest Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙... -
Page 16: Input Source
Input Source 1st Level Menu 2nd Level Menu Description HDMI1 ∙ Users can adjust Input Source in any mode. HDMI2 Auto Scan ∙ Users can use the Navi Key to select Input Source at below status: • While “Auto Scan” is set to “OFF” with the monitor at power saving mode;... -
Page 17: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Language factory default is English. ∙ Users have to press the OK Button to English confirm and apply the Language setting. Français ∙ Language is an independent setting. Users’ own language setting will override Deutsch the factory default. - Page 18 1st Level Menu 2nd Level Menu Description HDMI CEC ∙ Default is OFF. ∙ HDMI CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, and various audio-visual devices that are CEC-capable. ∙ If HDMI CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 19: Specifications
Specifications Model Optix G273QF Optix G273QPF Size 27 inch Curvature Flat Panel Type Rapid IPS Resolution 2560 x 1440 @165Hz 16:9 Aspect Ratio Brightness (nits) 300 (typ.) Contrast Ratio 1000:1 Refresh Rate 165Hz Response Time 1ms (GTG) ∙ HDMI x 2 ∙... - Page 20 Model Optix G273QF Optix G273QPF ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm 614.93 x 444.6 x 228.38 614.93 x 535.39 x 233.68...
-
Page 21: Preset Display Modes
Preset Display Modes Standard Resolution HDMI 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz @120Hz @144Hz @165Hz... -
Page 22: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 23: Safety Instructions
Safety Instructions ∙ Read the safety instructions carefully and thoroughly. ∙ All cautions and warnings on the device or user’s manual should be noted. ∙ Refer servicing to qualified personnel only. ∙ Keep the User’s Guide that comes with the package for future reference. ∙... -
Page 24: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 25: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 26 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 27 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
