Quick-start guide
USB-C™ to RS232 Serial DB9 Adapter Cable with COM Retention
ICUSB232PROC
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

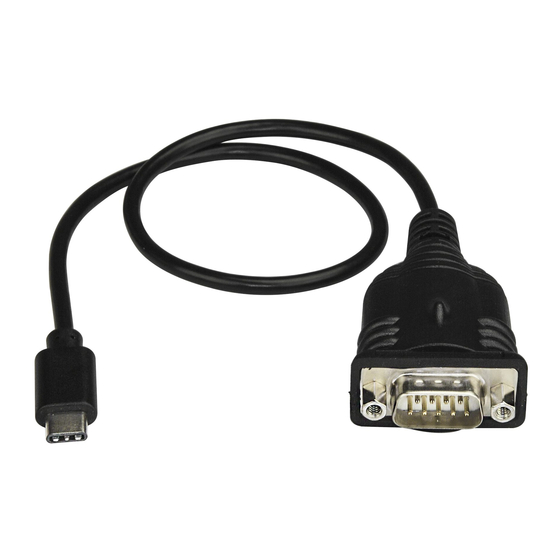

Product diagram
USB-C connector
RS-232 DB9 male pinout
1
6
Package contents
• 1 x serial adapter cable
• 1 x quick-start guide
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ICUSB232PROC.
DB9M RS232 connector
Pin 1
DCD
Pin 2
5 RXD
Pin 3
TXD
Pin 4 DTR
Pin 5 GND
Pin 6 DSR
Pin 7 RTS
9
Pin 8 CTS
Pin 9 RI
Requirements
• USB Type-C™ port
• Computer system running any of the following operating systems:
• Windows® 10
• Windows 8.1
• Windows 8
• Windows 7
• Windows Server® 2016
• Windows Server 2008 R2
• Windows Server 2012 R2
• macOS 10.12
• macOS 10.11
• Linux® 2.6.x to 4.4.x LTS versions only
Requirement are subject to change. For the latest requirements,
please visit www.StarTech.com/ICUSB232PROC.
About COM retention
The USB to serial adapter features COM retention (also known as
COM port retention). With COM retention, the COM port settings
that are assigned the first time that the adapter is connected to a
computer are retained, regardless of the USB port that the adapter
cable is connected to. When you disconnect the serial adapter cable
and plug it into a different USB port on the same computer, you
don't need to reconfigure the serial port.
Install the adapter cable
Windows
1. In a web browser, navigate to www.StarTech.com/ICUSB232PROC.
2. Click the Support tab.
3. Under Driver(s), download the [Prolific_PL2303] Windows USB
Serial Adapter.zip file.
4. Right-click the folder that you downloaded and click Extract All.
5. Right-click the Setup.exe file and click Run as Administrator.
6. Follow the on-screen instructions to complete the installation.
7. When prompted, restart your computer.
8. Connect the serial adapter cable to a USB port.
Manual Revision: 09/25/2017
