I N S T A L L A T I O N M A N U A L
PAVER KIT INFO – SELECTED DIVING PRODUCTS
When installing an Inter-Fab diving board and base set up using a paver kit, you must ensure that
all standard requirements for a diving board and base installation are met. The diving board and
base set up must be compatible with the type of pool on the intended installation and all
ANSI/NSPI-2003 requirements must be met.

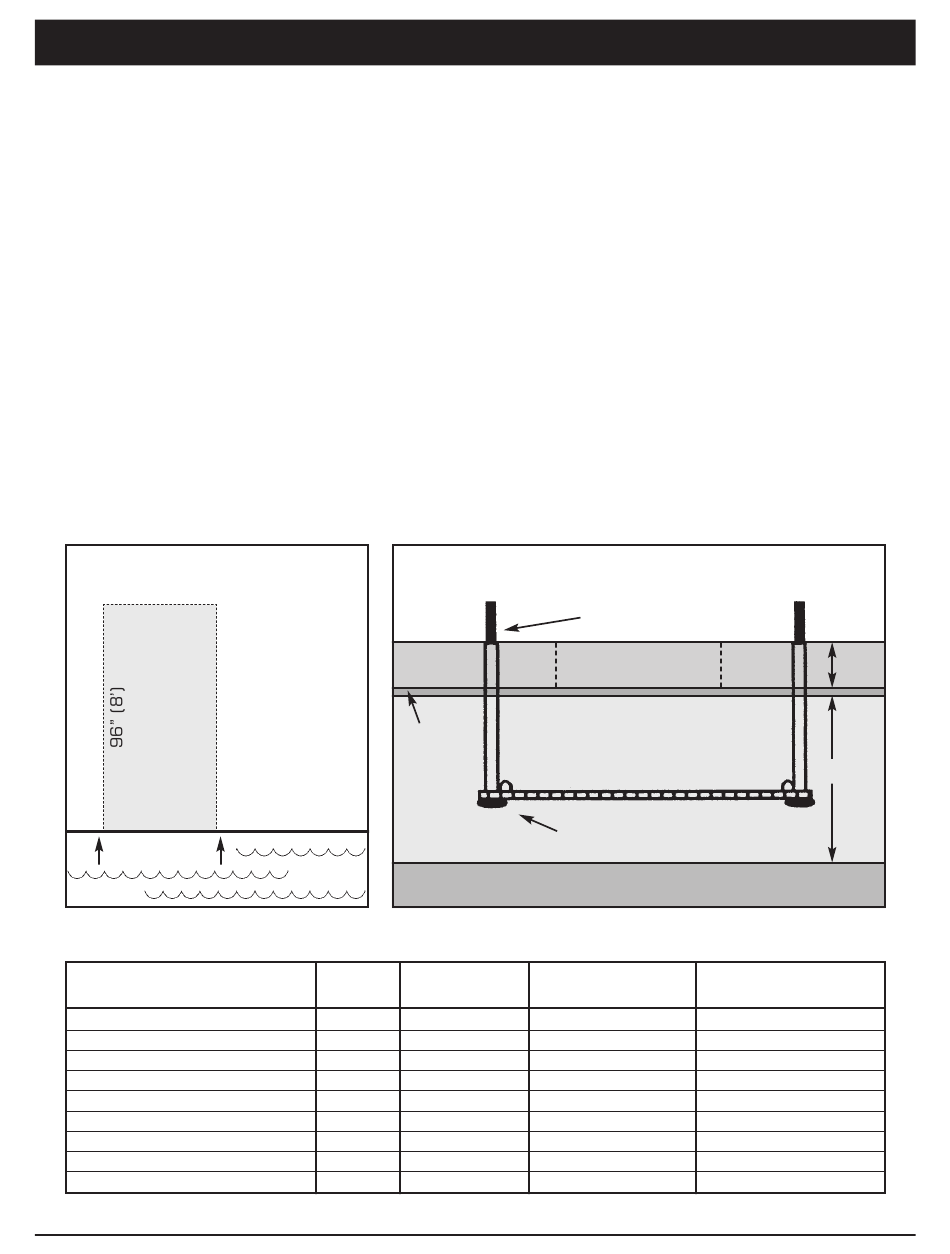

Figure 1 illustrates the standard minimum concrete pad recommended for all Inter-Fab diving
board and base set ups, which is 4' wide x 8' long x 6" deep.
Figure 2 shows an example side view of a paver jig used in a paver installation. Pavers can be a
maximum of 3" thick. Pavers must be mechanically attached to the concrete pad using a setting
material (such as mortar or thinset for example) that is no thicker than 3/8".
Refer to Figure 3 to determine how much of the jig needs to be exposed above the final deck surface.
You will need to factor in the thickness of your paver (3" MAX.) and the thickness of your setting
material (3/8" MAX.) for your individual installation.
Inter-Fab Inc. will not be responsible for damage to pavers caused by drilling or mechanically
attaching to concrete pad. Refer to paver manufacturer's specific installation instructions
before beginning.
Recommended Minimum
Concrete Area for Diving Bases
– PLAN VIEW –
48" (4')
CONCRETE
Pool Edge
Fig. 1
INTER-FAB
DIVING BASE
LA MESA BASE / LOS ARCOS BASE
– WITH 8' JIG
– WITH 10' JIG
DURO-SPRING BASE
TECHNI-SPRING STEEL BASE
TECHNI-SPRING FIBERGLASS BASE
BAJA BASE
– WITH 8' JIG
CITY BASE
DS-IM Rev. 12/09 (BK-DS INSTALL)
Example of a Paver Jig in Relationship to Concrete Pad
The minimum
PAVERS
concrete depth
shall be 6" for
the diving base
Layer of
concrete pad.
setting
material
to secure
pavers to
concrete.
CONCRETE
SOIL
MIN. JIG
DEPTH PART NUMBER
3.5"
3.5"
3.5"
4.5"
4.5"
4.5"
4.5"
4.5"
3.5"
– SIDE VIEW –
HEIGHT ABOVE FINAL
DECK SURFACE
See Figure 3 Below
DIVING BASE JIG
Minimum jig depth is either
3.5" or 4.5". See Figure 3.
PAVER JIG PAVER JIG
BOLTS
LM-J6 PAVER 1/2" X 8" Carriage SS
LM-J8 PAVER 1/2" X 8" Carriage SS
LM-J10 PAVER 1/2" X 8" Carriage SS
DS-J PAVER 5/8" X 10" Hex Head SS
TS-J PAVER 1/2" X 10" Hex Head SS
TSF-J PAVER 1/2" X 12" Hex Head SS
BA-J6 PAVER 1/2" X 10" Hex Head SS
BA-J8 PAVER 1/2" X 10" Hex Head SS
CITY-J6 PAVER 1/2" X 8" Carriage SS
Fig. 3
10
D U R O - S P R I N G ™
Drawing Not To Scale
Fig. 2
HEIGHT ABOVE
FINAL DECK SURFACE
1.5"
1.5"
1.5"
1.5"
1.5"
3.5"
1.5"
1.5"
1.5"
3"
max.
6" min.
