Summary of Contents for Inter-fab X-stream

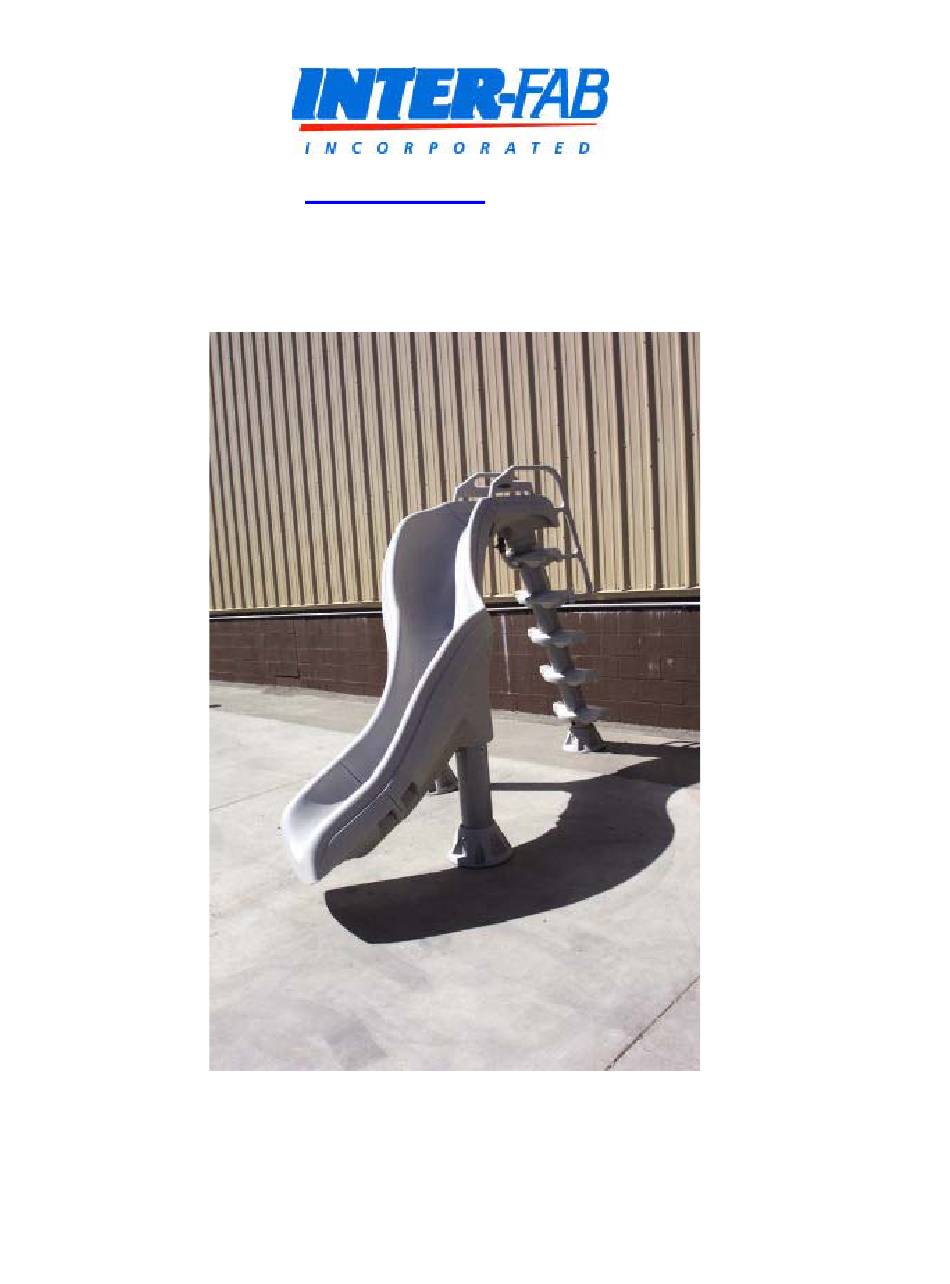

- Page 1 X-stream Slide Assembly and Installation Instructions...
- Page 2 X-stream Slide The following Assembly and Installation instructions are listed in the correct sequence for a straightforward assembly of the X-stream Slide. Please read and understand all instructions before beginning installation. A two-person crew is recommended for best results, as the assembled slide is very long, and unwieldy for one person to handle.
- Page 3 - 3 -...
- Page 4 - 4 -...
- Page 5 Fig A-3 - 5 -...
- Page 6 Important! Flumes are labeled AB or CD in small letters on flanges. For Left Hand Slides, Flume AB is upper flume, and CD is the lower flume, in that order; for a Right Hand Slide, CD is the Upper Flume and AB is the Lower. A-B flume C-D flume Bottom Section...
-
Page 7: Assembly And Installation Instructions
List of Tools Tools required for assembly and installation of X-stream slide 1. Hammer 2. 3/8" drive rachet 3. 3/8" x 6" rachet extension 4. 1/2" socket 5. 9/16" socket 6. 9/16" box end rachet wrench 7. Drill with 3/8" masonry bit 8. - Page 8 Top Section to the Upper Flume. Note: Handrails must be installed with X-stream label out. Use the 5/16” bolts x required length (see Schedule Two) and washers from Hardware set #5 to connect the Top Section to insert nuts in the Handrail. A rachet extension will be required for bolts through flange of Top Section.
- Page 9 Fig. 2.: Ladder Step Support Sub-Assembly Step Two: Slide Legs • Install remaining foot receivers on the long and short legs, using 3/8” x 2” bolts in four locations. Push PVC pipe all the way to the bottom of the foot receiver. Push 3/8”x 2” bolt thru 3/8” thru 3/8” flat washer, thru pre-drilled holes provided in PVC pipe and foot receiver, through 3/8”...
- Page 10 Step Three: Main Slide Assembly (Note: This section may be assembled on the ground, with parts upside down or on their sides). • Connect Lower Flume Section to Upper flume Section, using 3/8” x 2-3/4” thru bolts in four locations, ensuring a flexible gasket is in place (installed at factory) (Fig.
- Page 11 Step Four: Erection of Assembled Slide • Install loosely, legs to flumes as required: long leg to upper flume, short leg to lower flume, using 3/8” X 2” bolts from Hardware Set #3. Push bolt thru lock washer, thru flat washer, thru pre -drilled hole provided in PVC pipe, into pre -inserted nuts in flume leg receiver.
- Page 12 16 degree slope from vertical Fig. 9 Step Five: Anchoring to Deck • Position all foot receivers on deck in the correct location, checking to insure the legs are vertical, then carefully mark the locations of all anchor bolts. If proper care is exercised, drilling of leg anchor bolt holes may be done with leg foot receivers in position;...
- Page 13 Step Six: Connect Water Supply System Connect bottom hose to water system as re quired, using proper connectors (by others) and in-line valve (furnished) as required. (Fig. 11) Owner or Installer to provide Stub-Up or water supply as req’d. Fig. 11 •...
- Page 14 X-stream Slide Care and Maintenance 1. General Cleaning Use nonabrasive Soap and water when possible. Review cleaner’s label instructions before applying to acrylic surface. Avoid harsh chemicals and disinfectants The following products may safely be used:* Chlorox Liquid Comet Windex...
