I N S T A L L A T I O N M A N U A L

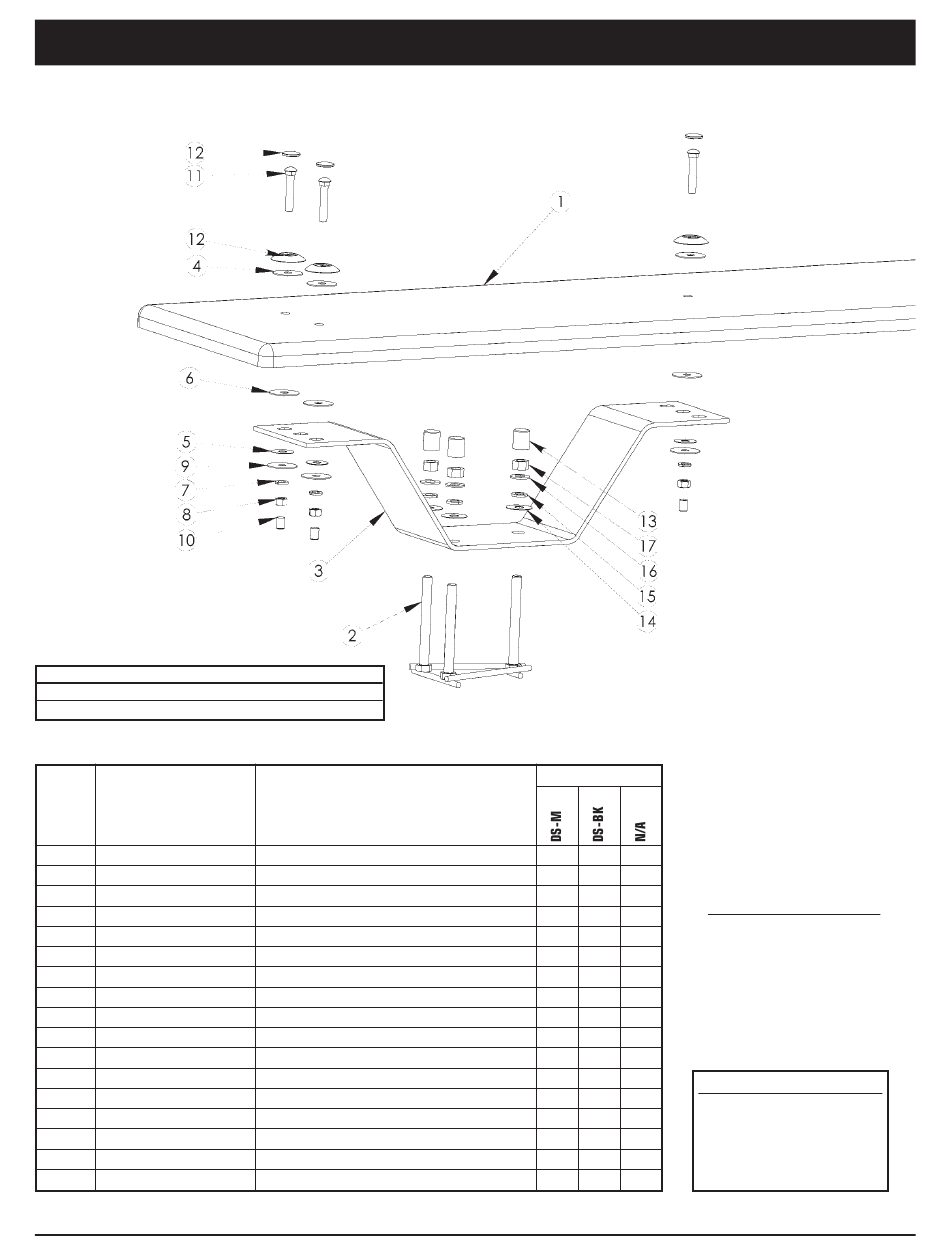

FIG. D – DURO-SPRING STEEL BASE EXPLODED VIEW
DRAWING REPRESENTS THE FOLLOWING PART NUMBERS:
DSS6 (shown)
DSS8
TABLE 7 – PARTS LIST
ITEM # COMPONENT
1 DS6WW
2 DS-J
3 DSS6
4 H-1/2 BLK WASH
5 H-1/2 NYLON WAS
6 H-1/2 RED WASH
7 H-SS 1/2 LOC WA
8 H-SS 1/2 H NUT
9 H-SS 1/2 F WAS
10 H-1-1/2 WHT CAP
11 H-SS 3 C BOLT
12 H-WHT WAS/CAP
13 H-1x1-1/2 W CAP
14 H-5/8 RD WASH
15 H-SS 5/8 F WASH
16 H-SS 5/8 LOC WAS
17 H-SS 5/8 H NUT
NOTES:
DSS6 diving board shown in exploded view for illustration purposes. Must be purchased separately.
DS-IM Rev. 12/09 (BK-DS INSTALL)
DESCRIPTION
6' Duro-Spring White w/ White Top Tread & Hdw Kit
Duro-Spring Mounting Jig
6' Duro-Spring Jump Stand
1/2 x 2" Black Rubber Washer
1/2" Flat Washer Nylon
1/2 x 2" Red Rubber Washer
1/2 Lock Washer S.S.
1/2"- 13 Hex Finish Nut S.S.
1/2 USS Flat Washer S.S.
.750 x 1-1/2 White UV Nut Cap
1/2-13 x 3" Carriage Bolt S.S.
I.F. White Washer/Cap
1" I.D.x 1-1/2" Long White UV
5/8 x 1-3/4" Round Nylon Washer
5/8" USS Flat Washer S.S.
5/8 Split Lock Washer S.S.
5/8-11 Hex Finish Nut S.S.
KITS – QTY. COUNTS
1
1
1
3
3
3
3
3
3
3
3
3
3
3
3
3
3
9
D U R O - S P R I N G ™
HARDWARE
TIGHTENING
SCHEDULE:
Secure Stand to Jig with Anchor
Hex Nuts at 40-45 FT-LBS
Secure Board to Stand with
Mounting Hex Nuts at 20-25
FT-LBS
HARDWARE NOTE:
Use a small dab of
anti seize lubricant
(included) on all bolt
threads.
