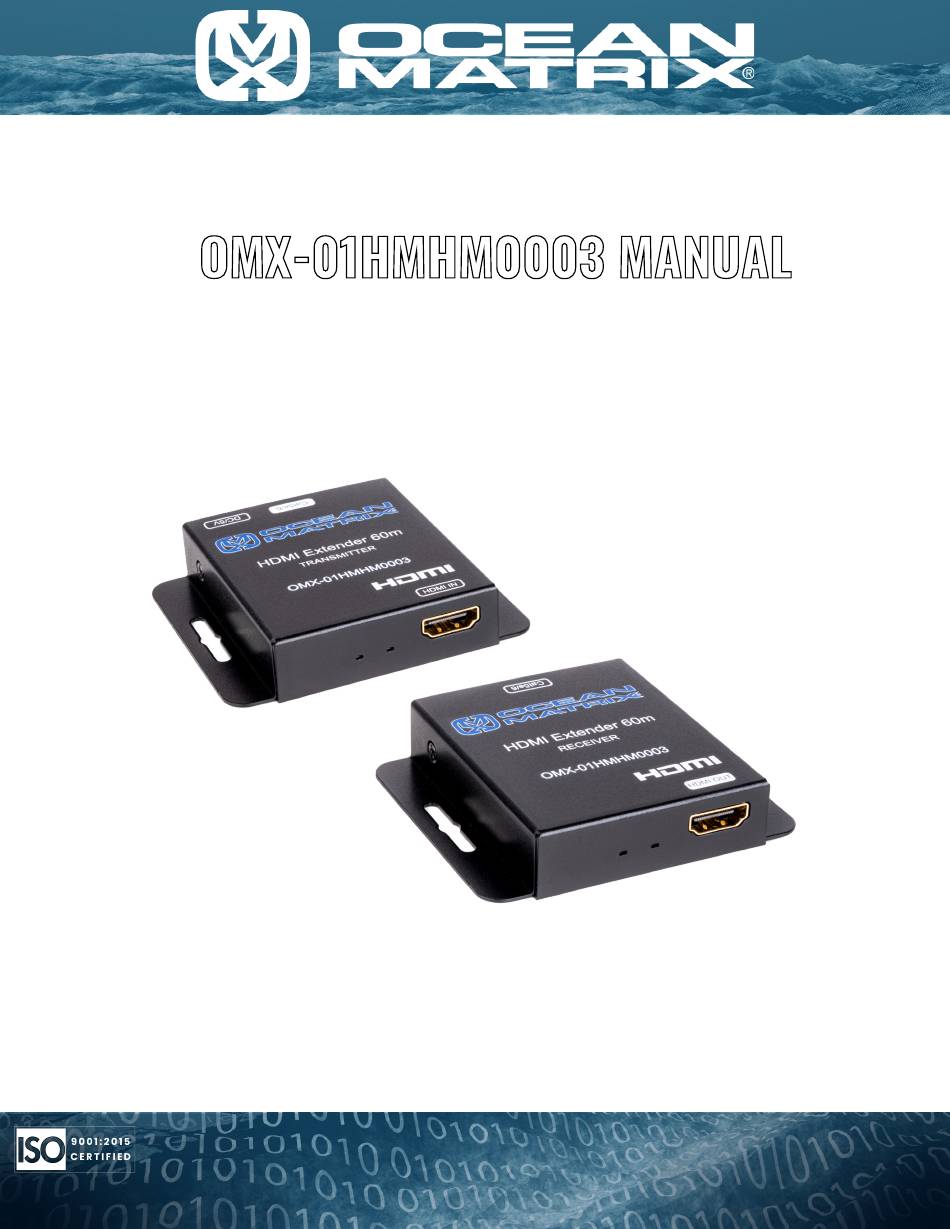

- Page 1 OMX-01HMHM0003 MANUAL HDMI 1080P@60Hz EXTENDER OVER SINGLE CAT5e/6 WITH PoC Export Information US ECCN: EAR99 HTS Code: 8544.42 US Dept. of Commerce CCATS: N.a sales@oceanmatrix.com A Division of Tower Products Incorporated www.oceanmatrix.com Revision #01...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions…………………………………………………………………….……………Page 3 Introduction…………………………………………………………………………………………..Page 4 In the Box…………………………………………………………………………………………….Page 4 Features……………………………………………………………………………….……………..Page 4 Specifications…………………….……………………………………………….…………………Page 4 Installation Requirements……………………………………………………….………………..Page 5 Transmitter (TX)……………………………………………………………………………………..Page 5 Receiver (RX)…………………………………………………………………….………………….Page 6 Installation and Connection…………………………………………………….………………..Page 7 Connection Diagram………………………………………………………………………………..Page 7 Connection Instructions…………………………………………………………..……………..Page 7 Support & Warranty………………………………………………………………………..………..Page 8 Page 2... -
Page 3: Safety Precautions
Safety Precautions: Please read all instructions before installing or operating this equipment and connecting the power supply. Please keep the following in mind as you unpack and install the unit: 1. To prevent fire or shock hazards, do not expose this equipment to high humidity and/or dust. Do not use in an unprotected outdoor installation nor any area classified as overly damp or wet. -
Page 4: Introduction
Introduction: The Ocean Matrix OMX-01HMHM0003 Extender sends 1080P@60Hz HDMI signals up to 196 feet (60m) over a single CAT5e/6 cable. Features one-way PoC (Power over Cable) for simplified installation. It is ideal for digital signs, trade shows, small offices, classrooms, retail settings, and houses of worship where the HDMI video sources are located farther than conventional HDMI signals can reliably travel. -
Page 5: Installation Requirements
Installation Requirements: HDMI source device (Game console, Cable Box, PC, etc.) HDMI display device (TV, projector with HDMI port) HDMI cable: Standard HDMI 2.0 Cable CAT5e/6 Cable Panel Description: Transmitter (TX): HDMI Port Power indicator HDMI indicator RJ45 Port DC 5V/1A Page 5... -
Page 6: Receiver (Rx)
Panel Description: Receiver (RX): HDMI Port Power indicator HDMI indicator RJ45 Port Page 6... -
Page 7: Installation And Connection
Installation and Connection: Connection Diagram: Cat6/6A/7 Receiver Transmitter HDMI Cable HDMI Cable Installation and Connection: Connection Instructions: Connect the source device to the HDMI input port on the Transmitter with an HDMI cable. Connect the display device to the HDMI output port on the Receiver with an HDMI cable. Connect the transmitter and receiver with CAT5e/6 or higher network cable Page 7... -
Page 8: Support & Warranty
Support & Warranty: Ocean Matrix products are warrantied for one (1) year from the date of purchase, with parts and labor included. Our objective is to maintain engineering excellence and an R&D laboratory dedicated to the latest technology compliance testing. We strive for exceptional quality every day to ensure your confidence in our products and our commitment to your success.
