- Page 1 PS/2 Extender U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. PS/2 Extender is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the PS/2 Extender Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. The Gefen PS/2 extender allows PS/2 keyboard and mouse ports to be extended up to 1000 feet using CAT-5 cables. -
Page 5: Features

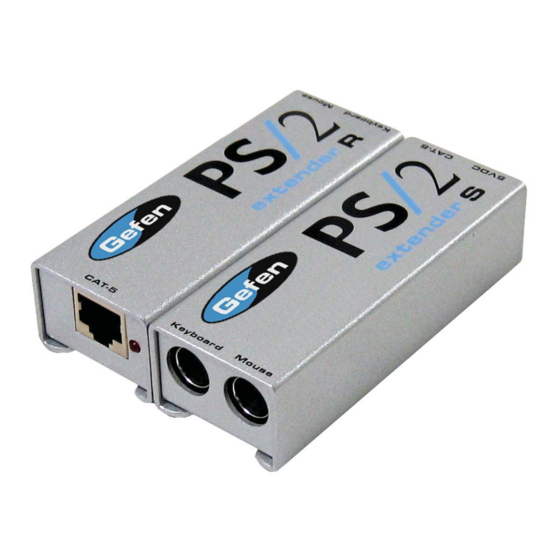

FEATURES Features • Extends PC computers with PS/2 Keyboard and Mouse • Extends Projectors with PS/2 Mouse • 1000 feet (300 meters) extension using one CAT-5 cable Includes: (1) PS/2 Extender S Sender Unit (1) PS/2 Extender R Receiver Unit (2) 6 foot PS/2 cables (M-M) (1) 5V external power supply (1) User's Manual... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The Ps/2 Extender
CONNECTING AND OPERATING THE PS/2 EXTENDER How to Connect the PS/2 Extender 1- Connect the supplied PS/2 cables from the computers PS/2 port into the PS/2 extender send unit. 2- Connect the CAT5 cable from the send unit to the receive unit. 3- Connect your keyboard and mouse in the PS/2 extender receiver unit. -
Page 8: Specifi Cations
SPECIFICATIONS PS/2 Connector ... MiniDin 8 Link Connector ... RJ-45 Shielded Power Consumption ... 5 Watts (max.) Power Supply ... 5VDC Dimensions ... 1.4”W x 1”H x 3.75”D Shipping Weight ... 3 Lbs... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
