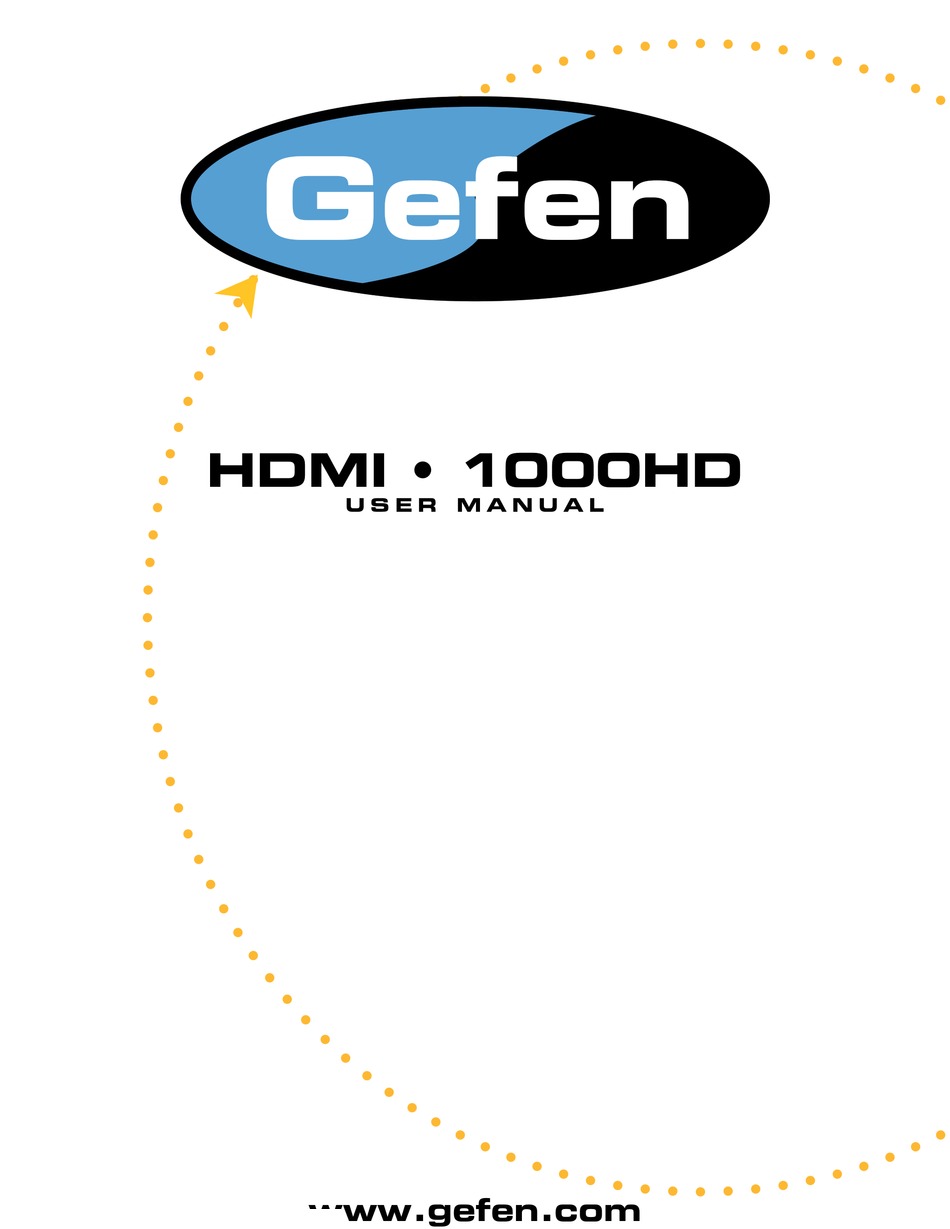

HDMI • 1000HD
U S E R
M A N U A L
www.gefen.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDMI-1000HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen HDMI-1000HD

  • Page 1 HDMI • 1000HD U S E R M A N U A L www.gefen.com...
  • Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. The HDMI 1000 is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    Introduction Front Panel Descriptions Back Panel Descriptions How To Connect The HDMI 1000 How To Connect The HDMI 1000 (w/o DDC) HDMI 1000 Wiring Diagram Specifications Warranty TABLE OF CONTENTS...
  • Page 4: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HDMI 1000 • The fiber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • The HDMI 1000 works for all HDMI displays and supports resolutions up to 1920x1200 or 1080p •...
  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing Gefen’ s ex•tend•it HDMI 1000. The HDMI 1000 allows exten- sion of HDMI up to 1640 feet without losing any quality. CONTENTS The HDMI 1000 consists of: (1) HDMI 1000S (1) HDMI 1000R (1) HDMI cable (6FT)
  • Page 6: Front Panel Descriptions

    HDMI 1000 Sender (Front View Only) Power LED indicates the unit is powered Status LED indicates a link between the sender and receiver HDMI 1000 Receiver (Front View Only) Power LED indicates the unit is powered Status LED indicates a link between the sender and receiver Green HDCP &...
  • Page 7: Back Panel Descriptions

    BACK PANELS DESCRIPTIONS HDMI 1000 Sender (Rear View Only) 12 VDC Input HDMI Input HDMI 1000 Receiver (Rear View Only) 12 VDC Input HDMI Output...
  • Page 8: How To Connect The Hdmi 1000

    HOW TO CONNECT THE HDMI 1000 Connect the HDMI 1000 sender unit to the HDMI source using the supplied cables. Connect the HDMI 1000 receiver unit to your HDMI display. Connect the four fiber optics and one CAT5 cable between the sender and receiver. Plug the 12VDC power supplies into the HDMI 1000 receiver.
  • Page 9: How To Connect The Hdmi 1000 (W/O Ddc)

    The HDMI 1000HD can be hooked up without using the CAT5 if DDC is not needed. A second power supply will be required to power the receiver unit in this setup. For computer extensions where EDID is needed, a DVI Detective can be purchased to store the EDID of the display.
  • Page 10: Hdmi 1000 Wiring Diagram

    HDMI 1000 WIRING DIAGRAM...
  • Page 11: Specifications

    SPECIFICATIONS Video Amplifier Bandwidth ... 1.65 Gbps Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ... 1920 x 1200 Input/Output Connector Type ... HDMI Link Connector ... RJ-45 Fiber Requirement ... 50 or 62.5 micron multimode fiber Power Consumption ...
