Attaching Wheels - Pulsar PG3500MR Operator's Manual

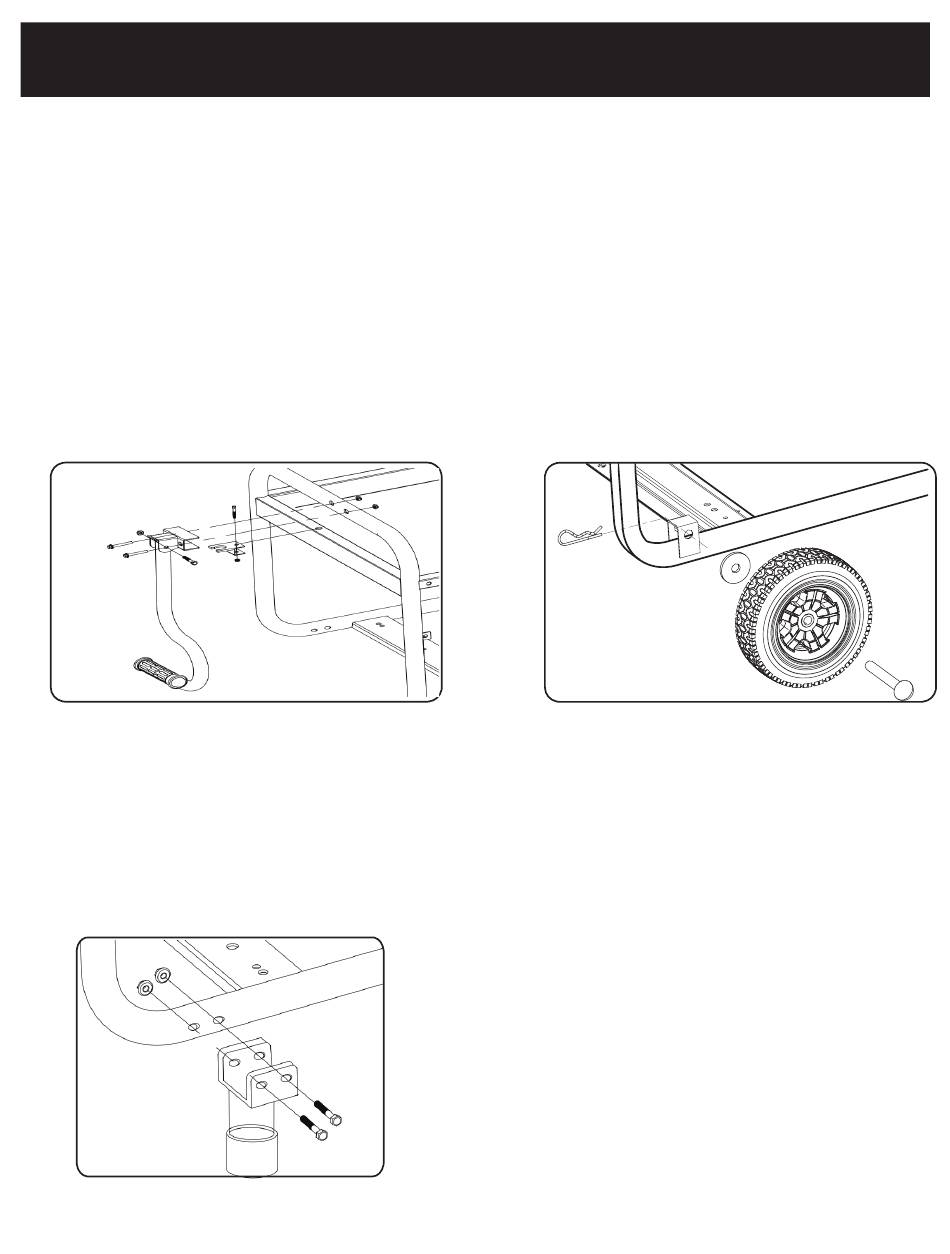

Attaching Handle (See fig 1)
• Parts needed - 1 handle, 1 handle bracket , 1 handle clip, 4 screws and nuts.
• Install handle bracket to generator frame. (fig. 1)
• Then attach handle to the bracket handle.
• Lastly install handle clip.
Attaching Wheels (See fig 2)
• Parts needed - 2 wheels, 2 axles, 2 hair pins, and 2 washers.
• Raise or tilt generator so you can slide the wheel axle pin into the wheel, the washer, the wheel mounting hole located
on the side of the frame.
• Secure the wheel assembly by reinserting a hair pin through hole at the end of the wheel axle and pressing until it locks
into place.
• Repeat process on the other side of the generator to install the second wheel.
Installing Support Leg (See fig 3)
• Parts needed - Support leg & M8 screw (2) and 2 nuts.
Raise the front end of the generator high enough to gain access to the bottom of the frame. Securely position props
•
underneath to support.
• Line up holes on the support leg bracket to the holes on the front of the generator frame.
• Attach the support leg using M8 screws (2) and nuts.
Fig 3
ASSEMBLY
Fig 1 Fig 1
10
Fig 2
