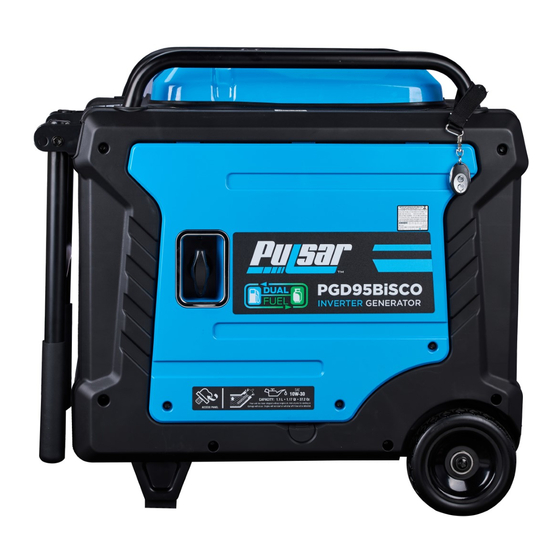

9500 Watt Dual Fuel Inverter Generator
OPERATOR'S MANUAL
Warning: The Engine Exhaust from this product contains chemicals known to
the State of California to cause cancer, birth defects or other reproductive harm.
Model No. PGD95BiSCO
DO NOT RETURN TO STORE!
STOP
HAVE QUESTIONS OR NEED SERVICE?
866-591-8921
support@pulsar-products.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pulsar PGD95BiSCO
Summary of Contents for Pulsar PGD95BiSCO
- Page 1 Model No. PGD95BiSCO 9500 Watt Dual Fuel Inverter Generator OPERATOR’S MANUAL Warning: The Engine Exhaust from this product contains chemicals known to DO NOT RETURN TO STORE! the State of California to cause cancer, birth defects or other reproductive harm.
-
Page 2: Table Of Contents
It means to pay attention and be alert, your safety is involved! Please read and abide by the message that follows the Pulsar Products reserves the right to make updates to this manual safety alerts symbol. at any time. -
Page 3: Safety Instructions
Safety Instructions Safety Precautions Before operating your generator, you must read and understand the manual and familiarize yourself with the safe operation practices. SYMBOL DESCRIPTION Safety Alert Symbol Electrocution Hazard Asphyxiation Hazard WARNING POISONOUS GAS HAZARD: Engine exhaust contains carbon Burn Hazard. - Page 4 Safety Instructions WARNING Correct Usage Example location to reduce risk of carbon monoxide poisoning • ONLY use outside and downwind, far away from windows, doors, and vents. Fuel and its vapors are extremely flammable and explosive which • Direct exhaust away from occupied spaces. could cause burns, fire, or explosion resulting in death or serious injury and/or property damage.
-
Page 5: Co Sentry
• If you have questions about intended use, ask a dealer or tests the air for dangerous levels of carbon monoxide. If dangerous contact your local Pulsar service center. levels of carbon monoxide are detected this generator will • Operate generator only on solid, level surfaces. -
Page 6: Names Of Components
Components Before operating your generator, you must read and understand the manual and familiarize yourself with the safe operation practices. Fuel Tank Cap Fuel Gauge Control Panel Left Side Cover Recoil Handle Transport Handle Fuel Tank Muffler Right Side Cover Wheel... -
Page 7: Control Panel
Control Panel CO SENTRY PROTE ION AGAIN RBON MONOXIDE TO AVOID DAMAGE, DO NOT CONNECT OR DISCONNECT PARALLEL CABLES WHILE THE UNIT IS RUNNING. -
Page 8: Specifications
Specifications Engine Model 192F/P-2 Engine Type Single Cylinder, Four Stroke, Air Cooled, Overhead Valve, Gasoline Engine, Cylinder Inclined 25° Cylinder Bore x Stroke(mm) 92x69 Displacement 458cc Compression Ratio 8.5:1 Gas Distribution Mode Cooling Mode Forced Cold Air Output Power (kW/r/min) 10.5/3600 Starting Mode Electric and Manual Recoil... -
Page 9: Preparation
Preparation Preperation Your generator requires some assembly. This unit ships from our factory without oil; it must be properly filled with oil before operation. Unpacking 1. Set the shipping carton on a solid, flat surface. 2. Remove everything from the carton except the generator. 3. -
Page 10: Connecting Lpg Tank
Preparation NOTICE Check oil level often during the break-in period. Refer to the Maintenance section for recommended service intervals. CAUTION This engine is equipped with a low oil shut-off and will stop when the oil level in the crankcase falls below a critical level. NOTICE 4. -
Page 11: Battery
If the leak continues or if the the hose. leak is not at a fitting then DO NOT use the generator and contact an authorized Pulsar service center. WARNING OPEN Explosion hazard. DO NOT start generator if you smell propane. - Page 12 Preparation 3. A quick-connect battery plug is pre-installed on the battery. Remove the cable tie securing the plugs, align colors, then push firmly to connect them. 4. Align the tabs on the bottom of the battery access cover with the generator case then push to reinstall the cover. Note: The generator is equipped with a battery charging feature.
-
Page 13: Operation
Operation Generator Location Starting The Generator WARNING 1. Make sure the generator is on a solid, flat, level surface. 2. Disconnect all electrical loads from the generator. Never start or stop the generator with electrical devices plugged in or turned on. NEVER operate the generator inside any building, garage, 3. - Page 14 Operation 6. Choose the starting method DANGER Recoil Start: Firmly grasp and pull the recoil handle slowly until you feel resistance, let it retract then pull swiftly. Fire and explosion hazard. Always turn the propane tank valve to the fully closed position if not running the generator on propane.
- Page 15 Operation Stop The Engine 2. If the OVERLOAD light turns on and the generator stops producing power, it has been overloaded. 3. Turn off and disconnect all electrical devices and stop the 1. Turn off and unplug all connected electrical loads. Never start engine.
- Page 16 Operation Generator Capacity NOTICE Do not overload the generator's capacity. Exceeding your generator's wattage capacity can damage the generator and/or electrical devices connected to it. Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time.
-
Page 17: Maintenance
Maintenance WARNING ACCIDENTAL STARTING: Turn the fuel selector to the “OFF” position, wait for the engine to cool, and disconnect the spark plug cable before performing any inspection, maintenance, or cleaning procedures. EQUIPMENT FAILURE: Do not use damaged equipment. If abnormal noise, vibration, or excess smoking occurs, have the problem corrected before further use. - Page 18 Maintenance Checking and Filling Fuel WARNING TO PREVENT SERIOUS INJURY FROM FIRE: Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before adding fuel. Do not smoke. 1.
- Page 19 Maintenance Air Filter Element Maintenance 1. Allow the generator to cool completely. 2. Remove the Screws from the back of the generator. 3. Remove the Tail Pipe and Spark Arrestor. 1. Loosen screws and remove the Air Filter Access Panel on 4.
- Page 20 Maintenance Draining the Carburetor NOTICE Use only BPR6ES (NGK) type spark plug or equivalent. Using After closing the Fuel Valve, place an appropriate container under an incorrect spark plug may damage the engine. the Carburetor and carefully remove the Drain Bolt from the bottom of the Carburetor Bowl, allowing the fuel to drain completely.
-
Page 21: Troubleshooting
8. Shut off the fuel valve, move the generator caused by the carburetor needle sticking. to a safe, outdoor location and contact a certified Pulsar Service Center before using the generator again 9. Clogged Fuel Filter. 9. Replace Fuel Filter. - Page 22 Troubleshooting Problem Possible Causes Probable Solutions THE ENGINE WILL COMPRESSION RELATED: COMPRESSION RELATED: NOT START 1. Cylinder not lubricated. 1. Pour a tablespoon of oil into the spark plug Problem after long storage periods. hole. Crank the engine a few times and try to start again.
- Page 23 Troubleshooting Problem Possible Causes Probable Solutions ENGINE STOPS 2. Fuel tank empty or full of impure or low-quality 2. Fill fuel tank with fresh 87+ octane stabilizer SUDDENLY gasoline. treated unleaded gasoline. Do not use gasoline with more than 10% ethanol(E15, E20,E85,etc.). 3.
Need help?
Do you have a question about the PGD95BiSCO and is the answer not in the manual?
Questions and answers
I shut genarator off to change oil now it won’t start
The Pulsar PGD95BiSCO generator may not start after changing the oil due to several possible reasons:
1. Low Oil Level – The generator has a low oil sensor that prevents it from starting if the oil level is insufficient. Ensure the oil is filled to the proper level (1.17 quarts or 1.1 liters of 10W-30 oil).
2. Oil Sensor Activation – If the generator is tilted or the oil was not evenly distributed, the low oil sensor may still detect a low level. Try placing the generator on a level surface and waiting a few minutes before restarting.
3. Loose or Improperly Sealed Components – If the oil fill cap or drain plug is not properly tightened, the generator may detect an issue and prevent starting.
4. Residual Air in Fuel System – If the generator was moved or tilted significantly during the oil change, air may have entered the fuel lines. Try priming the fuel system or switching between gasoline and propane if using a dual-fuel model.
5. Incorrect Control Settings – Ensure the fuel selector is set correctly (gasoline or propane) and that the choke is in the proper position for starting.
If the generator still does not start, consult the troubleshooting section in the manual.
This answer is automatically generated
I shut generator off and changed oil now it won’t start
The Pulsar PGD95BiSCO generator may not start after changing the oil due to the following reasons:
1. Incorrect Oil Level – The generator holds 1.17 quarts (37.2 ounces or 1.1 liters) of 10W-30 oil. If too much or too little oil is added, the low oil sensor may prevent the engine from starting.
2. Oil Sensor Activation – If the generator is tilted or not on a level surface, the oil sensor may falsely detect low oil and prevent starting.
3. Improper Installation – If the oil fill cap or drain plug is not securely tightened, it may cause an issue.
4. Residual Air in the Fuel System – If the generator has not been primed properly after an oil change, air in the fuel system may prevent starting.
5. Fuel Selector Position – If the fuel selector is not set correctly for gasoline or propane mode, the generator may fail to start.
Checking and correcting these issues should help start the generator.
