INSTRUCTIONAL BOOK
CARE & USE/INSTALLATION
Models:
SIZ26-LP/NG, SIZ32-LP/NG, SIZ40-LP/NG,
SIZPRO32-LP/NG, SIZPRO40-LP/NG, and SIZSB2-LP/NG
DANGER - IF YOU SMELL GAS:
I - Shut off the gas supply to the appliance at its
source.
2 - Extinguish any open flames.
3 - Open grill hood to release any accumulation
of gas vapor.
4 - If a gas odor persists, Keep away for your
appliance contact your gas supplier or fire
department immediately.
ATTENTION INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
ATTENTION CONSUMER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
- CONTACT INFORMATION -
3396 Sunland Way Costa Mesa, CA 92626
Toll Free: 1-800-966-8126
Fax: 1-714-966-9331
www.summersetgrills.com
SUMMER SIZZLER by SUMMERSET Instructional Book
WARNING
I – Do not store or use gasoline or other
flammable liquids or vapor in the vicinity of this
or any other appliance
2 – an LP cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliances.
Advertisement
Table of Contents

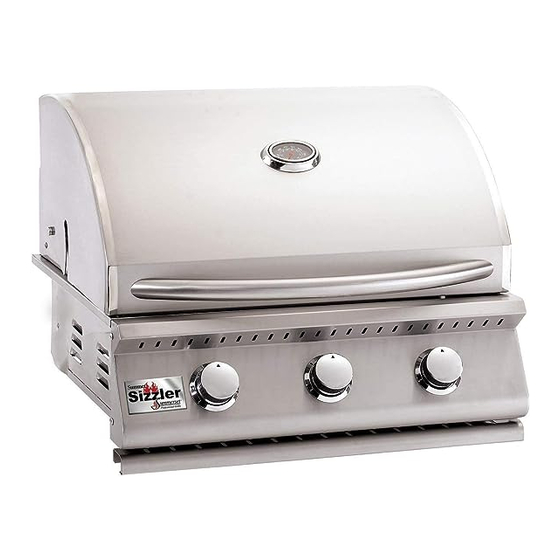

Related Manuals for Summerset Sizzler SIZ26-LP
Summary of Contents for Summerset Sizzler SIZ26-LP
- Page 1 ATTENTION INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER. ATTENTION CONSUMER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE - CONTACT INFORMATION - 3396 Sunland Way Costa Mesa, CA 92626 Toll Free: 1-800-966-8126 Fax: 1-714-966-9331 www.summersetgrills.com SUMMER SIZZLER by SUMMERSET Instructional Book...
- Page 2 Rotisserie Kit (Motor & Optional Forks) Burner Stainless Steel Tube Igniting Instruction On Drip Tray Burner Stainless Steel Tube Igniting Instruction On Drip Tray Gas Type Available LP and NG Type Available LP and NG SUMMER SIZZLER by SUMMERSET Instructional Book...
- Page 3 Pei z o Igni t ion System 5 yrs. on stainless steel Warranty construction, 2 yrs. on the burners 1 yr. on all other parts. Available in LP and NG Gas Type SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 4: Safety And Installation Instructions
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. SUMMERS I Z ZLER SUMMERSET I nstructional Book... - Page 5 Protection from Weather: Keep the barbecue protected from adverse weather, including rain and high winds. Polyvinyl covers are available that have been specially designed for this range of barbecues. Allow clear access to the entire gas supply hose and regulator. SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 6: Safety And Installation Warnings
Do not store any LP cylinder or tank not connected for use with the grill, in the area of this grill or any other appliance. Never store an LP cylinder or tank indoors, or within the reach of children. SUMMERS I Z ZLER SUMMERSET I nstructional Book... - Page 7 Grills operated with NG (natural gas) gas must be installed with the NG regulator supplied with the unit and set to 4.0" water column pressure. Grills operated with LP (liquid propane) gas must be installed with an LP regulator Not supplied SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 8: Natural Gas Requirements
The grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressure in excess of 0.5 psi (3.5 kPa). SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 9: Checking For Gas Leaks
Make sure all the control knobs are in the OFF position Turn on the gas • On Natural Gas systems, turn the main feed valve to the grill. • On systems, turn the cylinder valve knob counter clockwise one turn to open. SUMMERS I Z ZLER SUMMERSET I nstructional Book... - Page 10 On LP systems, remove the cylinder from the grill. Call an authorized gas appliance service technician or an LP gas dealer. Do not use the appliance until the leak is corrected. SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 11: Lp Tank Requirements
If one is not already available, it is recommended that an ON-OFF shutoff valve be installed at the gas supply source, and that the gas supply be turned off when either Natural Gas or LP Gas grills are not in use. SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 12: Never Use An Open Flame To Check For Leaks
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all joints. Bubbles forming indicate gas leak. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS. SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 13: Installing The Grill In A Bbq Island
Check to make sure the grill is level and is supported around the entire outside edge. If the grill is not level or is unstable, use non-combustible shims under the outside lip to stabilize it. Perform the leak test procedure as described earlier in this manual. SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 14: Building Bbq Specifications
HEIGHT 3 Burne r 23 1/4" 21 1/4 ” 8 1/2” SIZ-26 30 5/8 ” SIZ-32 4 Burner 21 1/4” 8 1/2” Side Burne r SIZSB-2 10 3/4" 20 3/4” 8 1/2" SUMMERS I Z ZLER SUMMERSET I nstructional Book... - Page 15 Installation Method for Propane Installation Method for Natural Gas Connection Method for Dual Side Burner When connecting your Side Burner to LP or NG No Regulator is required on the Side Burner. SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 16: Bbq Specifications
BBQ SPECIFICATIONS NOTE: “ALWAYS” have equipment measured by Contractor before building. NOTE: Check with City and Fire department for Local Building Codes. A Permit may be required for outdoor Kitchen Construction SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 17: Electrical Precautions
This appliance conforms to all uniform electrical safety codes and electrical grounding regulations. Install unit according to I.A.W. local codes or with National Electrical Code ANSI/NFPA 70 or CSA C22.1 in their absence. SUMMERS I Z ZLER SUMMERSET I nstructional Book... - Page 18 Do not leave the grill unattended while in use. ➢ Do not use water on grease fires! A violent steam explosion may result. Instead, smother the fire with a dry chemical or foam fire extinguisher. SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 19: Unit Installation
For proper operation, burners must be aligned with the valve orifice and seated in the bracket slot. This is accomplished by first placing the burner tube shutter hole securely over the valve orifice and then secure with the screw at the rear of the barbecue. SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 20: Lighting Instructions
� Make sure that all gas connections are securely tightened and have been leak-tested with a soapy water solution - never with a flame! SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 21: Lighting The Grill
3. Keep your face as far away from the burners as possible 4. Light and insert a long stem match, holding it near the Lighting Tube. 5. Push in and turn the control knob to HIGH. SUMMERS I Z ZLER SUMMERSET I nstructional Book... -
Page 22: First Time Operation
You can cook poultry and larger cuts of meat slowly if you turn OFF the burner directly under the food and use adjacent burners to supply heat (a.k.a. “convection cooking” or “indirect cooking”). SUMMERS I Z ZLER SUMMERSET I nstructional Book... - Page 23 6. Inside the space you will find the end of the valve (toward the front of grill), with an orifice (brass fitting), screwed into the end of the valve stem. 7. Carefully remove the orifice with a 7mm socket set and extension. (These are extremely SUMMERS I Z ZLER SUMMERSET I nstructional Book...
- Page 24 On the NG Regulator an arrow shows you the gas flow OR the words “In” – “Out”. If regulator is placed the wrong way, it will not work. ( Use only a Licensed Professional when converting a Gas Appliance) SUMMERS I Z ZLER SUMMERSET I nstructional Book...
-
Page 25: Warranty Registration
When using an LP tank, the tank must be purged of any air build up, or the unit will not function. A qualified person must purge the tank of all excess air. Summerset shall not be liable under this or any implied warranty for incidental or consequential damages and Summersets liability is limited to the purchase price of the barbecue only. - Page 26 IR BURNER ELBOW FITTING (32’ ONLY) SIZ032P IR BURNER JOINT NUT (32’ ONLY) SIZ033P IR BURNER ORIFICE (32’ ONLY) SIZ034P I.R BURNER (32’ ONLY) SIZ035P HOOD HANDLE SIZ036P RUBBER STOPPER SIZ037P TEMP GAUGE BEZEL SIZ038P TEMP GAUGE SUMMER SIZZLER by SUMMERSET Instructional Book...
- Page 27 SUMMER SIZZLER by SUMMERSET Instructional Book...
- Page 28 Sizzler Side Burner – 2 Burner Thank you for your purchase of this great product by Summerset Outdoor Products. We know you will have many years of enjoyment using this grill and have many fun and memorable times around the barbecue. Family and fun is what this is all about and creating memories that will last a lifetime.
