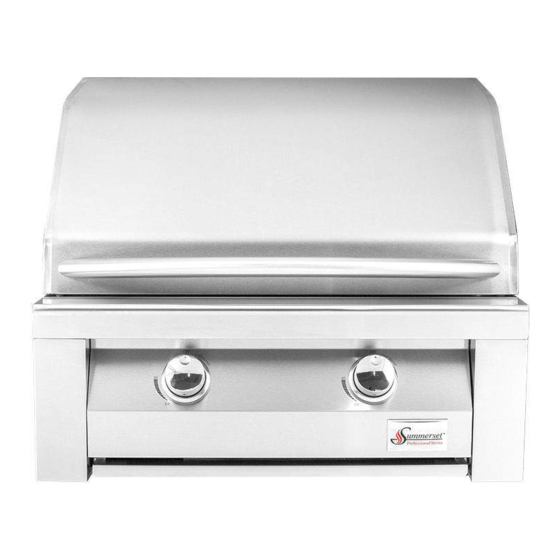

Summerset Builder Grill
Installation, Operation, Maintenance &
Instructions
MODEL# SBG32
For Outdoor Use Only
PLEASE READ THESE OPERATING INSTRUCTIONS BEFORE INSTALLATION
AND USE TO PREVENT ACCCIDENT OR DAMAGE TO THE GRILL.
ATTENTION INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THE
CONSUMER.
ATTENTION CONSUMER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
If you have service or installation questions, please call us at
1-800-966-8126 or visit our website at www.SummersetGrills.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Summerset SBG32
Summary of Contents for Summerset SBG32
- Page 1 Summerset Builder Grill Installation, Operation, Maintenance & Instructions MODEL# SBG32 For Outdoor Use Only PLEASE READ THESE OPERATING INSTRUCTIONS BEFORE INSTALLATION AND USE TO PREVENT ACCCIDENT OR DAMAGE TO THE GRILL. ATTENTION INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
- Page 2 ANSI Z21.58B-2000/CGA 1.6-M02 OUTDOOR COOKING GAS APPLIANCE FOR OUTDOOR USE ONLY, IF STORED INDOORS, DETACH AND LEAVE CYLINDERS OUTDOORS BURNER INPUT RATING LP AND NATURAL GAS: SBG32 NG GRILL: 25,000 BTU X 2 GAS PRESSURE LP GAS [PROPANE] NATURAL GAS MANIFOLD: 10.5"...
-
Page 3: Safety Labels Appearing On The Appliance
Safety Labels Appearing On The Appliance READ THESE GRILL AND ROTISSERIE LIGHTING INSTRUCTIONS BEFORE LIGHTING - KEEP THE GRILL HOOD OPEN DURING THE LIGHTING PROCESS. MAKE SURE ALL THE BURNER KNOBS ARE TURNED TO THE "OFF" POSITION. - PUSH IN AND TURN THE KNOB TO THE HIGHEST POSITION SETTING. - IF IHE BURNER DOES NOT IGNITE WIIHIN 5 SECONDS, TURN THE BURNER TO THE "OFF"... -
Page 4: Table Of Contents
Table of Contents Congratulations on the purchase of your Summerset Builder Grill. These products were designed and developed by AMD Direct, Inc. the premier manufacturer and distributor of high quality outdoor products. This grill meets or exceeds the requirements of ETL as intended for outdoor use. -
Page 5: Important Instructions For Safe Installation And Operation
Safety and Installation Instructions When using your Summerset Builder Grill, please read and follow these basic precautions: GRILL INSTALLATION This gas grill must be installed in accordance with all local codes. If installation is planned in an area with no local codes, the gas grill must be installed in accord with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied petroleum gases, ANSI/NFPA 58... -
Page 6: If You Smell Gas
Safety and Installation Instructions Please read all instructions before installing or operating your gas grill to prevent injury and appliance damage. All gas grills will get hot during use. Use extreme caution when operating the grill. Do not touch hot surfaces. Always use the handle to open or close the grill. ... -
Page 7: Filling And Refilling Lp Gas Cylinders
Safety and Installation Instructions Grills operated with LP (liquid propane) gas must be installed with an LP regulator supplied with the unit set to 10.5" water column pressure. The gas valves used in the grills are preset at the factory for Natural Gas or Liquid Propane operation. Please contact your dealer and use a licensed contractor or installer to convert your grill to a different gas type. -
Page 8: Checking For Gas Leaks
Safety and Installation Instructions The outdoor gas grill and its individual gas shut off valve must be disconnected from the gas supply piping system before any pressure testing of that system at test pressures equal to or greater than 1/2 Psig (3.5 kPa) ... -
Page 9: General Use And Care
Safety and Installation Instructions This appliance conforms to all uniform electrical safety codes and electrical grounding regulations, install unit to I.A.W. local codes or in their absence, with National Electrical Code, ANSI/NFPA 70 or CSA C22.1. GENERAL USE AND CARE: ... -
Page 10: Unit Installation
Safety and Installation Instructions UNIT INSTALLATION: Your Summerset Builder Grill comes pre-assembled and requires very little set-up. We do however, recommend the use of professional help during the installation of your unit as improper installation may affect your warranty. - Page 11 Safety and Installation Instructions For Liquid Propane Gas Units The regulator supplied by the manufacturer must be used in the installation. Attach regulator hose to the pipe connection at the rear of the unit. Tighten with a wrench but do not over-tighten.
-
Page 12: Lighting Your Grill
Lighting Instructions Caution: Never operate the grill unattended. Do not operate the rotisserie or Sear Zone burner with the hood closed. Prior to using your grill, make sure all of the following is correctly completed: Verify that the burner tube is free of insects and insect nests, webs, etc. ... -
Page 13: First Time Operation
If the unit still does not work, consult your dealer or call Summerset Professional Grills at the numbers listed on the front of this manual. -
Page 14: Rotisserie & Sear Burner
Lighting Instructions CAUTION If the burners should go out during operation, turn OFF the gas supply at the source and turn OFF all gas valves. Refer to the lighting procedures to restart your grill. Should a grease fire occur in your grill, turn OFF the gas supply at the source, turn OFF all burners and close the hood until the fire goes out. -
Page 15: Cleaning
Maintenance Instructions As with all appliances, proper care and maintenance will keep your gas grill in good operating condition and prolong its life. By following these cleaning procedures on a regular and timely basis, your grill will be clean and working properly with minimum effort. Cleaning the Top Grates and Sear Grate: ... -
Page 16: Burner Adjustments
Warranty Registration PLEASE NOTE THE FOLLOWING: If you have purchased an Summerset Professional Grill, you must supply your own three pronged grounded extension cord to use the halogen light. This extension cord must be rated for outdoor use. All natural and LP gas units require the customer to install the gas regulator, supplied with the unit, on the unit. -
Page 17: When The Burners Will Not Light
Lighting Instructions WHEN THE BURNERS WILL NOT LIGHT PROBLEM WHAT TO DO 1. Air in the line Contact a qualified professional to correct. 2. Low gas pressure Check pressure and make sure a regulator is installed correctly; check for proper pipe ID. 3. -
Page 18: Appliance Cut Out Dimensions
Installation Instructions Appliance cut-out dimensions WIDTH DEPTH HEIGHT 28 1/2” 23 1/16” 10 3/16” SBG32 Important: please verify by measuring actual appliance from box..measure twice, cut once...
