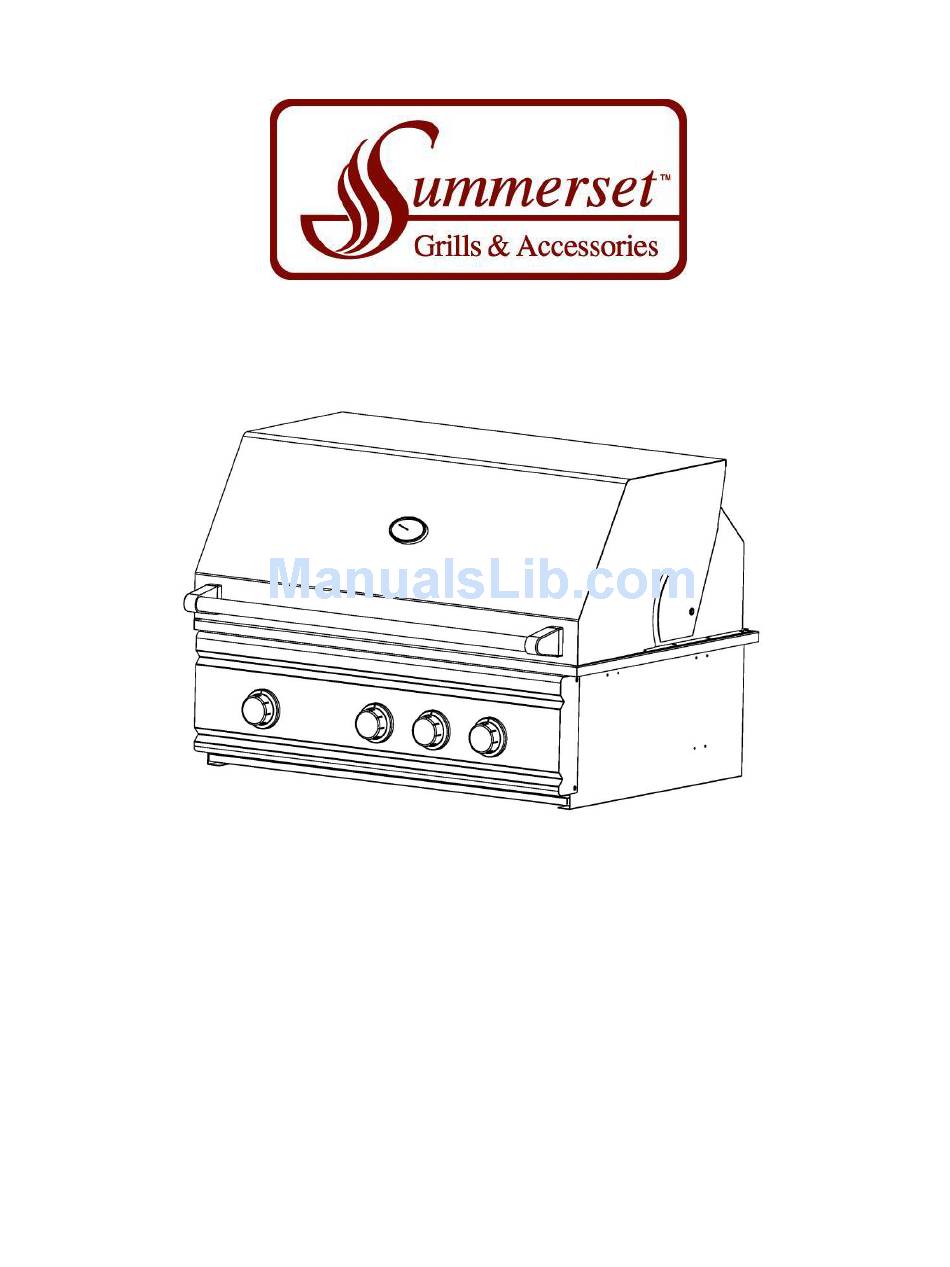

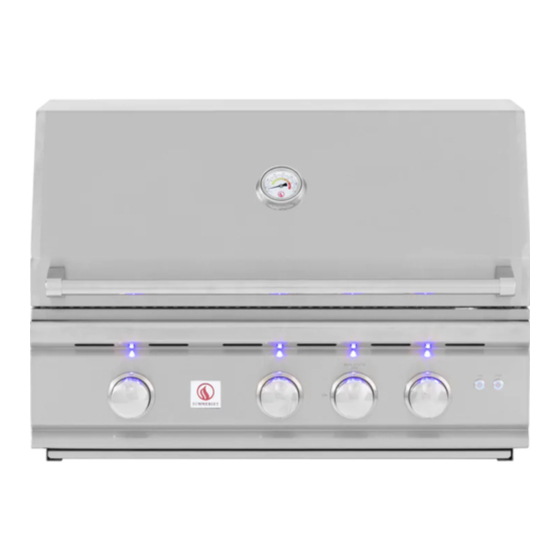

- Page 1 OWNER’S MANUAL FOR TR SERIES GRILL For Outdoor Use Only Installation, Operation, Maintenance Instructions & Parts List MODELS: TR-26N, TR-26L TR-32N, TR-32L TRS-32N, TRS-32L TRL-32/38N, TRL-32/38L TRLD-32/44N, TRLD-32/44L...
-
Page 2: Table Of Contents
Contents Page For Your Safety Safety Rules Gas Barbecue Specifications Gas Connection LP Tank Requirement Installation Location Clearances Electrical Lighting Instructions Operation Cleaning and Maintenance Parts Removal and Replacement Trouble Shooting Wire Diagram TR-26/TR-32/TRL-32/TRS-32/TRL-38 19/20 Parts Identification TR-26/TR-32/TRL-32/TRS-32/TRL-38 Exploded View TRLD-32/44 Parts Identification TRLD-32/44 Exploded View Do’s &... -
Page 3: For Your Safety
For Your Safety READ THESE SAFETY INSTRUCTIONS PROPANE MODELS: WARNING Correct LP Gas Tank Use Fuels used in gas or oil-fired appliances and the LP gas grill models are designed for use with a products of combustion of such fuels, contain standard 20 lb. - Page 4 Have your LP gas tank filled by a reputable A strong gas smell, or the hissing sound of gas propane gas dealer and visually inspected and re- indicates a serious problem with your gas grill or the qualified at each filling. LP gas tank.
- Page 5 use with natural gas and includes a natural gas WARNING regulator. Read the “Lighting Instructions” in this manual, If operation with propane gas is desired, you must purchase a Propane Model. In addition, a Propane before lighting this appliance. Gas Regulator MUST be installed in the gas supply line from the propane gas tank.
-
Page 6: Safety Rules
not be stored in or around the grill in the cabinet or in the masonry enclosure. Portions of the grill can be extremely hot while in use and can cause severe burns. 8. Protect your hand with a glove or mitt Safety Rules when opening and operating the grill. -
Page 7: Gas Barbecue Specifications
The outdoor cooking gas appliance and its testing of the gas supply piping system at test individual shut-off valve must be disconnected from pressures equal to or less than ½ Psi (3.5 kPa). the gas supply piping system during any pressure testing of the system at test pressures in excess of ½... - Page 8 LP Gas Connection 10” W.C. Appliance pressure 11” – 14” W.C. Inlet pressure Purchase a standard 20 lbs. LP tank with QCC – 1 fitting. Assemble pipe/hose assembly as shown.
- Page 9 After completion of assembly, turn the tank valve on and turn the control valves on the grill to the ‘HI/IGN’ position for 10 – 15 seconds to purge the line of air. Inspect the hose before each use of the appliance. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the appliance being put into operation.
-
Page 10: Lp Tank Requirement
LP Tank Requirements: The L.P. gas cylinder must be constructed and marked in accordance with the specifications for L.P. gas cylinders of the U.S. Department of Transportation (DOT) and designed for use with a QCC-1 quick disconnect system only. The cylinder must be provided with a shut-off valve terminating in an L.P. gas supply cylinder valve outlet specified, as applicable, for connection No. -
Page 11: Installation Location
Installation Location For All Models NOTE: When installing a barbecue equipped for NOTE: When using Propane, EXTREME liquid propane CAUTION should be used to provide ample in an island, the propane tank must be in a separate ventilation of vapor from the enclosure. enclosure that is completely isolated from the LP Gas vapor is heavier than air and SERIOUS barbecue. -
Page 12: Clearances
Clearances Combustible Construction Minimum horizontal clearance from sides and back of the unit to adjacent vertical combustible construction extending above top of unit, 6 inches from side and 15 inches from back. Do not locate under overhead unprotected combustible construction. Non-Combustible Construction Sides of the grill can be 0”... -
Page 13: Electrical
The bottom of the grill must be supported on both sides and back or full width with opening as shown for gas connection. Electrical Electrical outlet for Rotisserie motor must be installed to the left side of the grill. The outdoor cooking gas appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. -
Page 14: Lighting Instructions
TRLD-44 is not available with Flash Tube Lighting Instructions Before Lighting: Check gas line/hose for signs of wear, abrasion or cuts. If evidence of deterioration is visible, replace the part prior to use. If you smell gas, check for leaks. If odor continues, immediately call for service. Keep your face and body away from the grill top when lighting. -
Page 15: Operation
If grill or Rotisserie burners do not light with igniter, they can be lit manually. For Main burners, turn knob on far right burner to high. Place match or lighter at the top of the flash tube on right side of basin. Once lit turn next burner on adjacent to far right burner, when lit repeat for far left burner on 32”... -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Cleaning: Your Bar-B-Q grill works better and lasts longer if properly cleaned and maintained. Clean the grill immediately after every use. Turn grill off before starting to clean. Protect your hand with a good mitt when cleaning the hot grill. -
Page 17: Parts Removal And Replacement
Front Panel Removal for All Models Parts Removal and Replacement Grill Burner: - Remove top grates. - Remove briquettes and shields - Remove clip at rear of burner and slide out. - Clean and replace in reverse order. - Remove sparker cover – lift and pull. Rotisserie Sparker: - Remove sparker screws and pull out. - Page 18 TRLD- 4 LEDS 2 LIGHTS TRLD- 5 LEDS 2 LIGHTS...
-
Page 19: Tr-26/Tr-32/Trl-32/Trs-32/Trl-38
TR-26/TR-32/TRL-32/TRS-32/TRL-38 Parts List QTY. ITEM PART# DESCRIPTION TR-26 TR-32 TRL-32 TRS-32 TRL-38 TR001 26”-TOP HOOD TR002 32”-TOP HOOD TR003 38”-TOP HOOD TR004 IGNITOR BRACKET-I.R.BURNER TR005 IGNITOR-I.R.BURNER TR006 IGNITOR WIRE(1400mm) -I.R.BURNER TR007 IGNITOR WIRE(1600mm) -I.R.BURNER TR008 I.R.BURNER TR009 26”-REAR HOOD 32”-REAR HOOD (TR-32、TRL-32) TR010 32”-REAR HOOD (TRS-32) TR011... - Page 20 QTY. ITEM PART# DESCRIPTION TR-26 TR-32 TRL-32 TRS-32 TRL-38 TR046 NG REGULATOU TR047 NG FLARE FITTING TR048 FLEX TUBE 500mm 26 “-MANIFOLD PIPE TR049 32 “-MANIFOLD PIPE TR050 38 “-MANIFOLD PIPE TR051 TR052 VALVE SEAL RING TR053 GAS VALVE-I.R.BURNER GAS VALVE(LPφ1.3)- “U”BURNER TR054 GAS VALVE(NGφ1.93)- “U”BURNER TR055...
-
Page 21: Exploded View
TRL-32/38 Exploded View... - Page 22 TRLD-32/44 Parts List QTY. ITEM PART# DESCRIPTION TRLD-32 TRLD-44 TRLD001 TOP HOOD TRLD002 IGNITOR BRACKET-I.R.BURNER TRLD003 IGNITOR-I.R.BURNER TRLD004 WIRE(1700mm) -I.R.BURNER TRLD005 I.R.BURNER TRLD006 REAR HOOD TRLD007 LIGHT BOX (LEFT) TRLD008 LIGHT (LEFT) TRLD009 LIGHT BOX (RIGHT) TRLD010 LIGHT (RIGHT) ORIFICE(LPφ1.05) -I.R.BURNER TRLD011 ORIFICE(NGφ1.6) -I.R.BURNER TRLD012...
- Page 23 TRLD033 VALVE LATCH TRLD034 GAS VALVE-I.R.BURNER GAS VALVE(LPφ1.2)- TRLD035 “U”BURNER GAS VALVE(NGφ1.85)- TRLD036 “U”BURNER FLEX TUBE-I.R.BURNER TRLD037 1050mm TRLD038 CONTROL KNOB TRLD039 BEZEL TRLD040 LOGO PLATE TRLD041 CONTROL PANEL TRLD042 LIGHT SWITCH TRLD043 LIGHT WIRE TRLD044 LED MODULE BRACKET TRLD045 LED MODULE TRLD046 SIDE BURNER LED OUTLET...
-
Page 24: Trld-32/44 Exploded View
TRLD-32/44 Exploded View... -
Page 25: Do's & Don'ts
DO'S & DON'TS DON'T.. Install grill closer than 14" on the sides or 16" DO.. on the back to any combustible construction. Have propane cylinder (LP units) filled by Attempt any adjustment of the regulator, it has authorized LP supplier. been preset and tested.
