- Page 1 DVI • 1000HD U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The DVI 1000 is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Front Panel Descriptions Back Panel Descriptions How To Connect The DVI 1000 How To Connect The DVI 1000 (w/o DDC) DVI 1000 Wiring Diagram Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE IN STALL ING OR OPERATING THE DVI 1000 • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. •... -
Page 5: Introduction

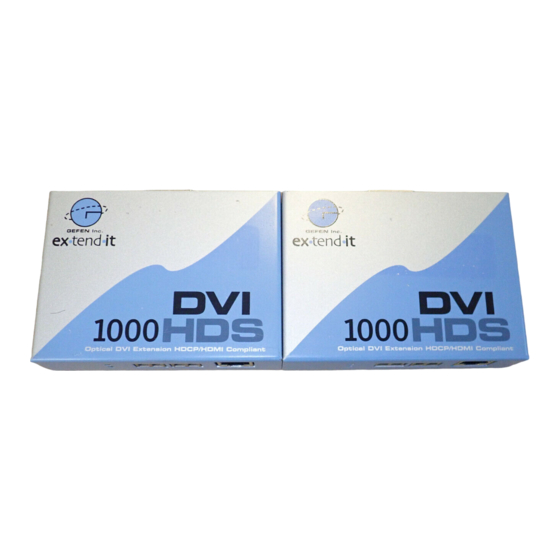

INTRODUCTION Thank you for purchasing Gefen’ s ex•tend•it DVI 1000. The DVI 1000 allows extension of DVI up to 1640 feet without losing any quality. CONTENTS The DVI 1000 consists of: (1) DVI 1000S (1) DVI 1000R (1) DVI cable (6FT) -
Page 6: Front Panel Descriptions
FRONT PANELS DESCRIPTIONS DVI 1000 Sender (Front View Only) Power LED indicates the unit is powered Status LED indicates a link between the sender and receiver DVI 1000 Receiver (Front View Only) Power LED indicates the unit is powered Status LED indicates a link between the sender and receiver Clock Green... -
Page 7: Back Panel Descriptions
BACK PANELS DESCRIPTIONS DVI 1000 Sender (Rear View Only) 12 VDC Input DVI Input DVI 1000 Receiver (Rear View Only) 12 VDC Input DVI Output... -
Page 8: How To Connect The Dvi 1000
HOW TO CONNECT THE DVI 1000 Connect the DVI 1000 sender unit to the DVI source using the supplied cables. Connect the DVI 1000 receiver unit to your DVI display. Connect the four fi ber optics and one CAT5 cable between the sender and receiver. Plug the 12VDC power supplies into the DVI 1000 receiver. -
Page 9: How To Connect The Dvi 1000 (W/O Ddc)
HOW TO CONNECT THE DVI 1000 (w/o DDC) The DVI 1000HD can be hooked up without using the CAT5 if DDC is not needed. A second power supply will be required to power the receiver unit in this setup. For computer extensions where EDID is needed, a DVI Detective can be purchased to store the EDID of the display. -
Page 10: Dvi 1000 Wiring Diagram
DVI 1000 WIRING DIAGRAM... -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 GHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ... 1920 x 1200 DVI Input/Output Connector Type ... DVI-D Link Connector ... RJ-45 Fiber Requirement ... -
Page 12: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
