Summary of Contents for Gefen DVI 1500

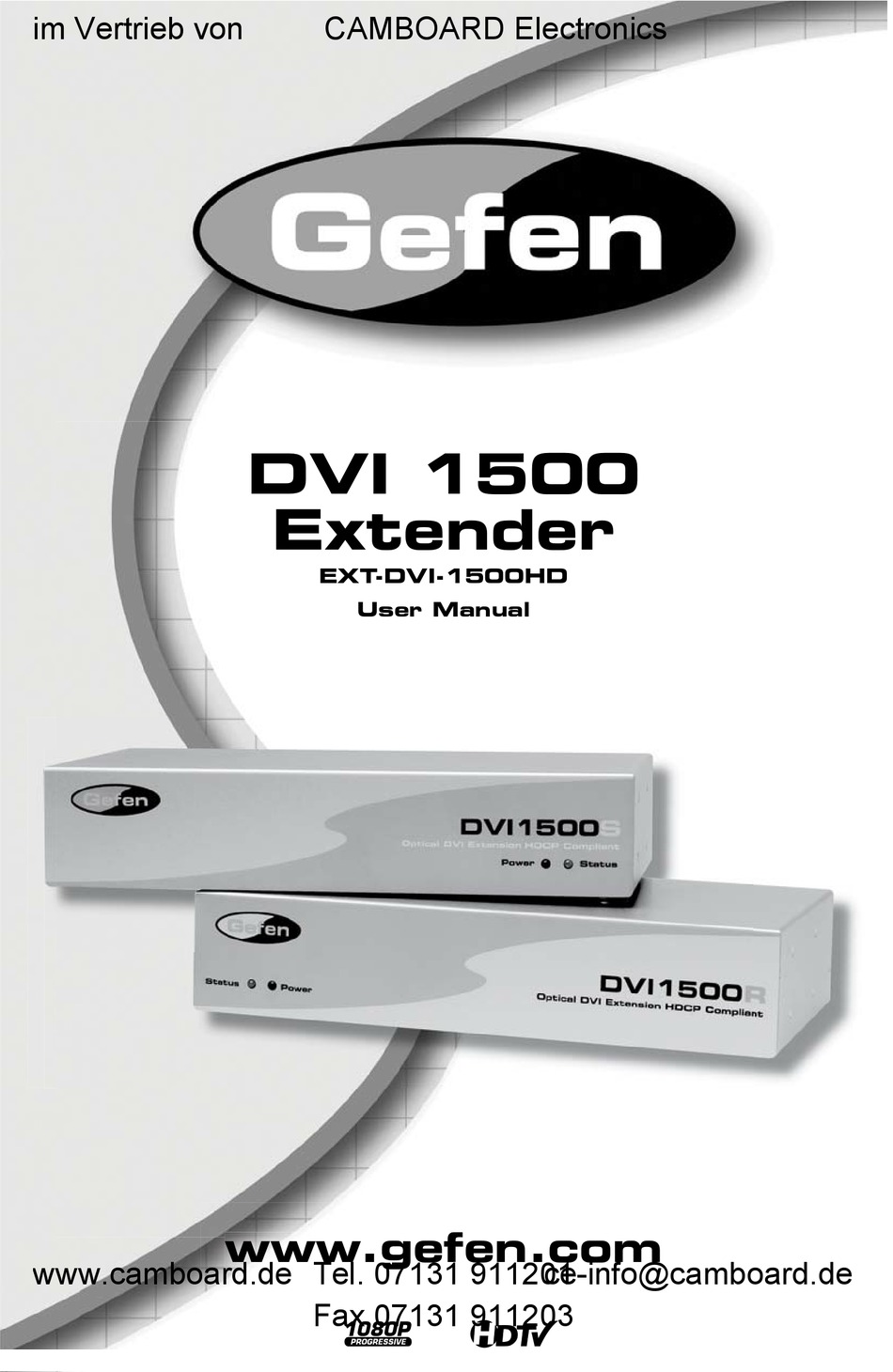

- Page 1 Vertrieb von CAMBOARD Electronics DVI 1500 Extender EXT-DVI-1500HD User Manual www.gefen.com www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI 1500 Extender is a trademark of Gefen Inc. www.camboard.de Tel. 07131 911201 ce-info@camboard.de...
-
Page 3: Table Of Contents
Vertrieb von CAMBOARD Electronics TABLE OF CONTENTS Introduction / Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting and Operating the DVI 1500 Network Cable Wiring Diagram Specifi cations Warranty www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 4: Introduction / Operation Notes
CAMBOARD Electronics INTRODUCTION The Gefen DVI•1500 allows a single link video signal to be extended over long distances by using multimode LC-LC fi ber optic cable. Fiber Optics technology allows the DVI•1500 to carry video signals over long distances that would not be possible with traditional CAT5 extension. -
Page 5: Features
im Vertrieb von CAMBOARD Electronics FEATURES Features • Extends any DVI (digital visual interface) compliant device up to 1640 feet/500 meters (330 feet with HDCP) from the computer • Uses a four-strand multimode LC-LC fi ber optic cable for video signals •... -
Page 6: Sender Panel Descriptions
im Vertrieb von CAMBOARD Electronics SENDER PANEL DESCRIPTIONS Front Panel Power LED Indicator Status LED Indicator Back Panel DVI Input RJ-45 Port Port Fiber Optic LC-LC Terminals 5V DC Power Input www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 7: Receiver Panel Descriptions
im Vertrieb von CAMBOARD Electronics RECEIVER PANEL DESCRIPTIONS Front Panel Power LED Indicator Status LED Indicator Back Panel RJ-45 DVI Output Port Port Fiber Optic LC-LC Terminals 5V DC Power Input www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 8: Connecting And Operating The Dvi 1500
CONNECTING AND OPERATING THE DVI 1500 How To Connect The DVI 1500 Connect the DVI source to the DVI 1500 sender unit using the supplied DVI cable. Connect a user supplied CAT-5, CAT-5e or CAT-6 cable to the sender unit. -
Page 9: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 10: Specifi Cations
im Vertrieb von CAMBOARD Electronics SPECIFICATIONS Video Amplifi er Bandwidth ............225 MHz maximum Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) Single Link Range ............1080p, 2k, 1920 x 1200 DVI Connector ..............DVI-D (19 pin) female Video Link Connector ..................
