MENU BAR DESCRIPTION

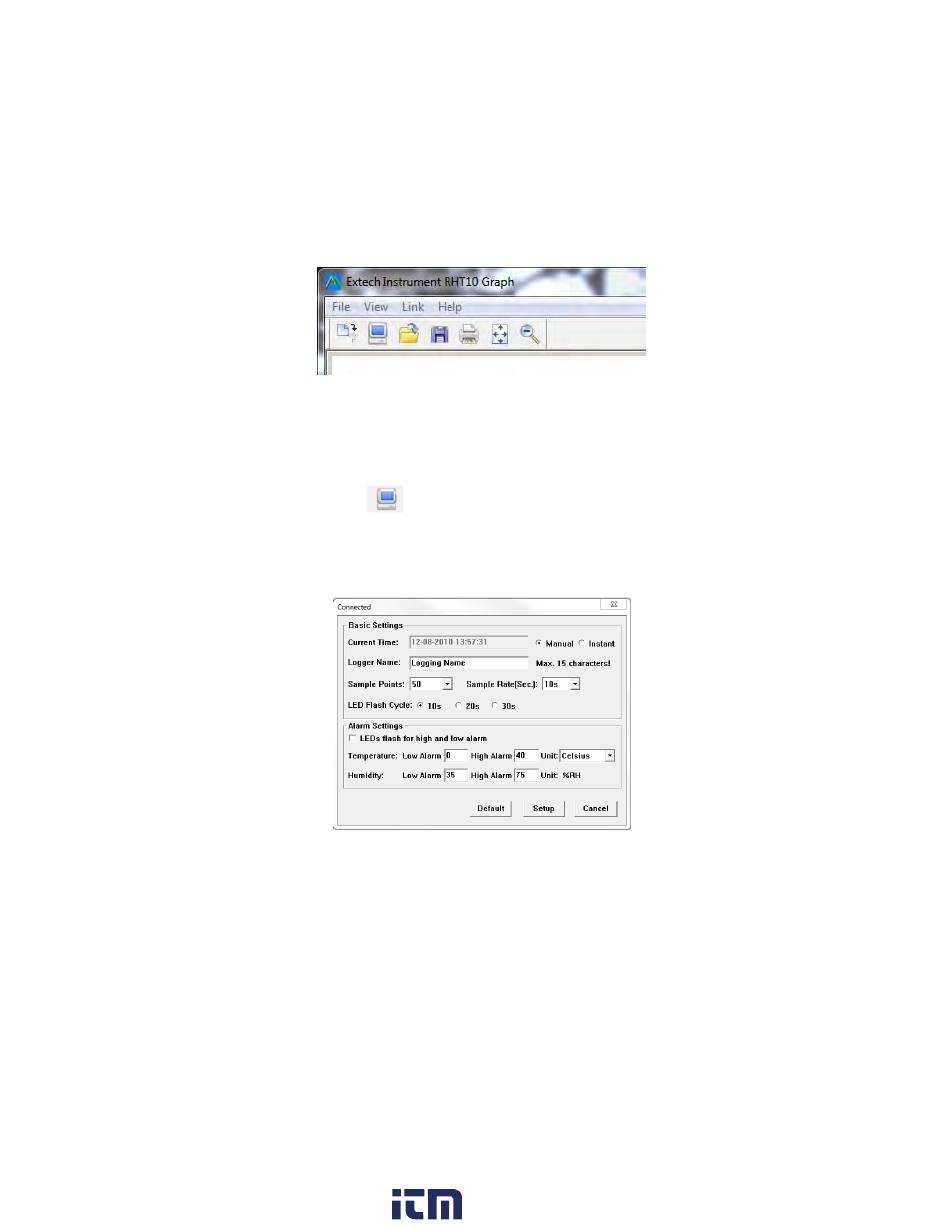

The main menu for the software appears as follows:
From left to right the MENU BAR icons represent DATA DOWNLOAD, LOGGER SETUP, FILE OPEN,
FILE SAVE‐AS, FILE PRINT, VIEW ALL, and ZOOM. In addition, the FILE, VIEW, LINK, and HELP
pull‐down menus are available here. All of these functions are described in the following
paragraphs.
LOGGER SETUP
Click on the computer icon on the menu bar (2
pull‐down menu. The Setup window will appear as shown below; descriptions for each field in
the Setup window are listed directly below the illustration:

The CURRENT TIME field will automatically synchronize with the PC date and time setting.

The MANUAL and INSTANT select buttons allow the user to start data logging immediately
when the Setup window is exited (INSTANT), or at a later time (MANUAL).

The LOGGER NAME field allows the user to select a unique name for the RHT10.

The SAMPLE POINTS field instructs the RHT10 to take a fixed number of readings.

The SAMPLE RATE pull‐down menu instructs the RHT10 to log readings at a specific rate.
www.
nd
from left) or select LOGGER SET from the LINK
6 RHT10 HW_SW-en-US_V5.6.2 6/16
