Grizzly T27950 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Introduction

The Model T27950 Single-Door Closet Cabinet
requires some assembly. Follow the instructions
below for assembly, operation, and maintenance.

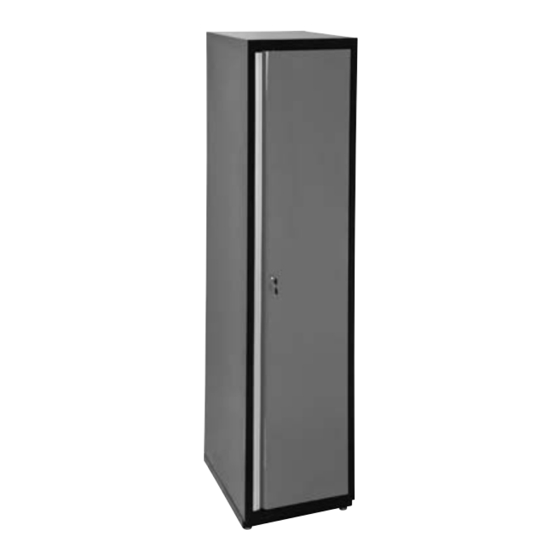

Figure 1. Model T27950.
• To reduce risk of crushing injuries from
tool cabinet tipping over on you:
— Do not stand on cabinet.
— Only move or transport cabinet with
door closed and locked.
— Push cabinet only (do not pull it) when
moving.
• Do not exceed weight capacities:
— Max individual shelf weight limit
is 275 lbs.
— Max total tool cabinet weight limit
(including contents) is 1100 lbs.
• To prevent accidental tipping, ensure
adjustable feet are down and cabinet
body is level.
• Do not allow children to have unsupervised
access to cabinet.
COPYRIGHT © MARCH, 2017 BY GRIZZLY INDUSTRIAL, INC., REVISED JULY, 2017 (MN)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 10.16) #JH18541 PRINTED IN CHINA
MODEL T27950
SINGLE-DOOR
CLOSET CABINET
INSTRUCTIONS

Inventory

• Cabinet with Shelves ................................... 1
• Cabinet Feet ................................................ 4
• Keys ............................................................. 2

Assembly

The Model T27950 comes with four adjustable
feet for leveling the cabinet.
To install feet:
1.
With help from another person, lay cabinet
upside down on floor (see Figure 2).
Note: We recommend sweeping the floor
clean and laying down a piece of cardboard
or a blanket to prevent scratching the finish
during this step.
2. Install one adjustable foot in each corner (see
Figure 2).
Figure 2. Location of adjustable feet.
3.
To prevent tipping or rocking, level the cabi-
net body by rotating the cabinet feet up or
down as needed.
Qty
Adjustable Feet
V1.07.17
