Introduction

The Model T25953 T-Slot Work Table is designed
to support sanding, clamping, routing, assem-
bly, and sawing projects. Workpieces can be
clamped virtually anywhere on the T-slot table
using Grizzly's T-Track Auto Adjust Clamps and
Fence Kits (not included). The T-slots (see inset
for dimensions) are compatible with
3
/
"
8
/
"
5
16
3
/
"
16
/
"
7
16

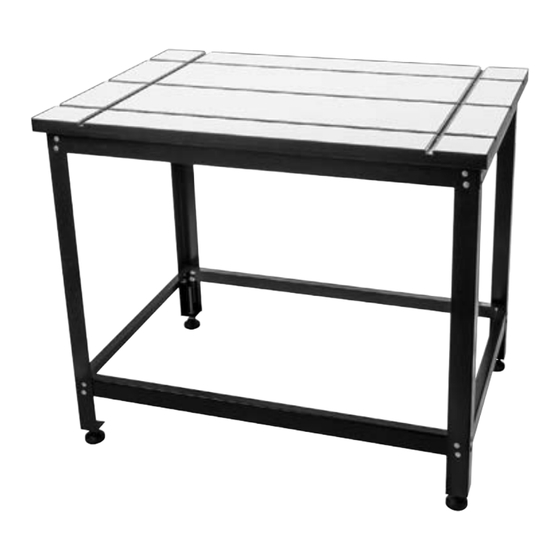

Figure 1. Model T25953 T-Slot Work Table.

Specifications

Top Dimensions ..............................28" x 40"
Footprint (Length x Width) .......... 38
T-Track Dimensions ..................
Maximum Weight Capacity ..............700 lbs.

Needed for Setup

Open-End Wrench or Socket 14mm .......... 1
Phillips Head Screwdriver #2 ..................... 1
Assistant ..................................................... 1
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
" bolts.
5
16
" x 27"
1
2
"W x
"D
3
3
4
8
COPYRIGHT © JANUARY, 2018 BY GRIZZLY INDUSTRIAL, INC.
#BL19338 PRINTED IN CHINA

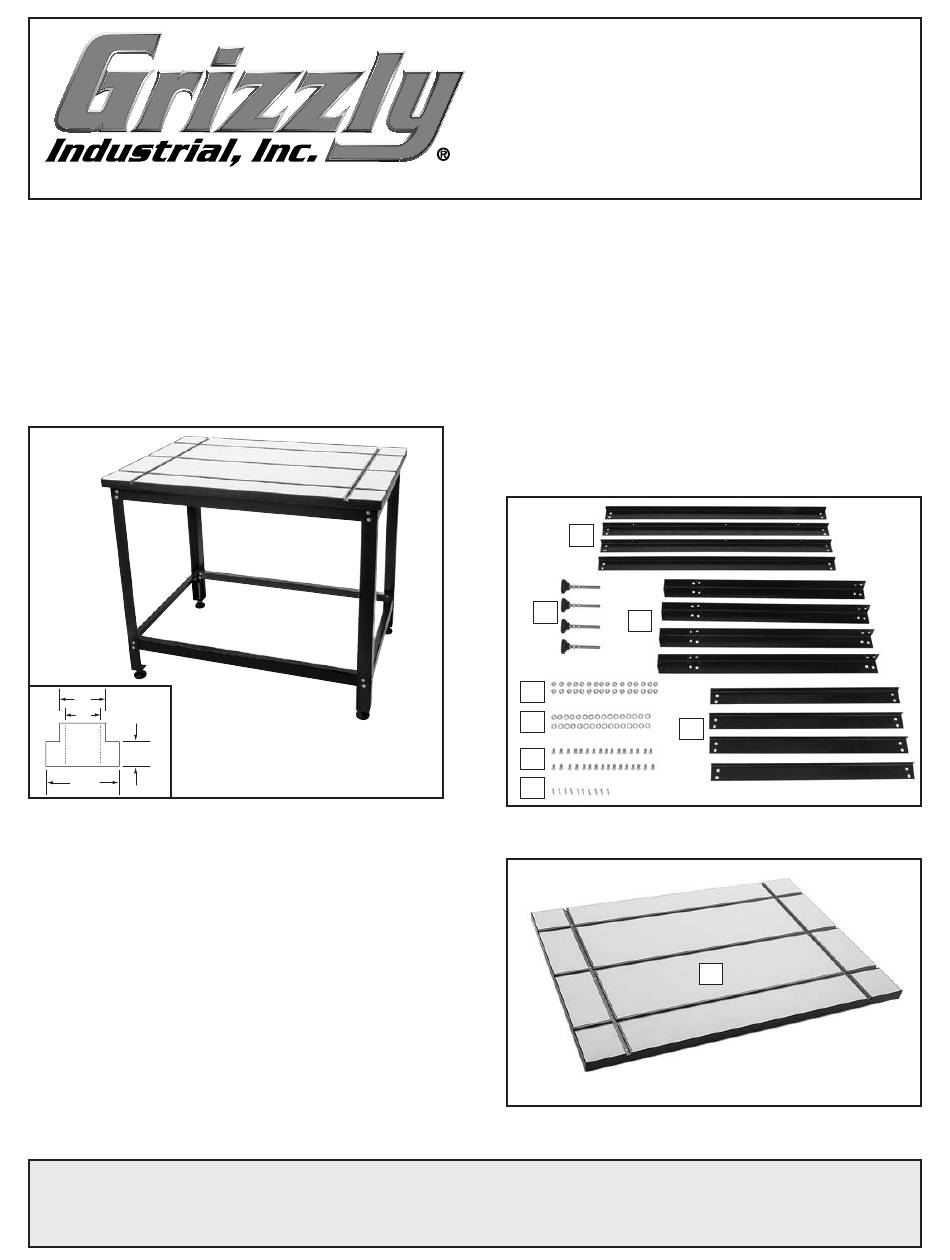

MODEL T25953
T-SLOT WORK TABLE
INSTRUCTIONS
For Models Mfd. Since 10/17

Inventory

Description
A. Legs ........................................................... 4
B. Feet M10-1.5 x 136 ..................................... 4
C. Long Braces 38" ......................................... 4
D. Hex Nuts M8-1.25 ..................................... 32
E. Flat Washers 8mm .................................. 32
F.
Carriage Bolts M8-1.25 x 12 ..................... 32
G. Wood Screws M4 x 20 ............................ 10
H. Short Braces 26" ........................................ 4
I.
T-Slot Table ................................................ 1
A
B
C
D
E
H
F
G
Figure 2. T25953 Stand Components.
Figure 3. T25953 T-Slot Table.
Qty
H
I
V1.01.18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T25953 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grizzly T25953

  • Page 1 MODEL T25953 T-SLOT WORK TABLE INSTRUCTIONS For Models Mfd. Since 10/17 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Inventory Introduction Description The Model T25953 T-Slot Work Table is designed to support sanding, clamping, routing, assem- A.
  • Page 2 (Each Side) Figure 4. 1 of 2 side assemblies for stand. Repeat Step 1 to build a second side assembly. End View Second Side Assembly Figure 6. Second side assembly attached to short braces. T25953 T-Slot Table (Mfd. Since 10/17)
  • Page 3 (not leaning to one side or the other). Final tighten all fasteners from Steps 1–4. 10. Loosen (4) M10-1.5 hex nuts on stand feet, adjust feet to make sure table does not wob- ble, then tighten hex nuts to secure feet. T25953 T-Slot Table (Mfd. Since 10/17)
  • Page 4 Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
