For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T26903 14-Drawer Tool Cabinet
requires some assembly. Follow instructions
below for assembly, operation, and maintenance.

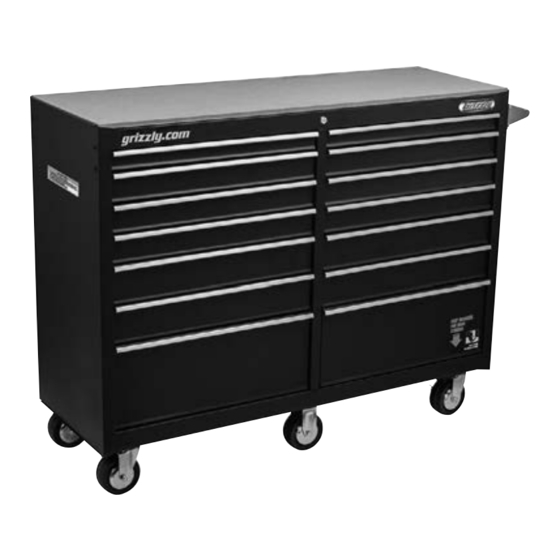

Figure 1. Model T26903.
• To reduce risk of crushing injuries from
tool cabinet tipping over on you:
— Do not stand on cabinet or in drawers.
— Push cabinet only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport cabinet with all
drawers closed and locked.
• Do not exceed weight capacities:
— Max individual drawer weight limit
is 50 lbs.
— Max tool cabinet weight limit (including
contents) is 1000 lbs.
• To prevent accidental rolling, always lock
brakes after moving cabinet.
• Do not allow children to have unsupervised
access to cabinet.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
FOR MODELS MANUFACTURED SINCE 08/2014 #WK16750 PRINTED IN CHINA
COPYRIGHT © AUGUST, 2014 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
MODEL T26903
52
⁄
" 14-DRAWER TOOL CABINET
1
2
INSTRUCTIONS
Inventory
•
Tool Cabinet with Drawers ........................... 1
•
Handle ......................................................... 1
•
Hex Bolts M8-1.25 x 25 ............................. 28
•
Flat Washers 8mm .................................... 24
•
Lock Washers 8mm ................................... 24
•
Fixed Casters .............................................. 2
•
Swivel Casters ............................................. 2
•
Swivel Casters with Brakes ......................... 2
•
Keys ............................................................. 2
Assembly
1.
Attach handle on preferred side of tool cabi-
net using four M8-1.25 x 25 hex bolts (see
Figure 2). Do not over-tighten!
Handle
Figure 2. Handle installed.
Qty
x 4
V1.08.14
