Grizzly T27630 Instruction Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction

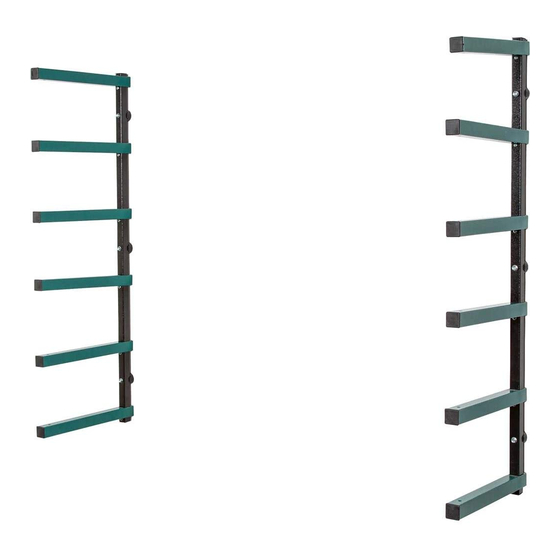

The T27630 is a wall-mounted storage system
designed to organize your workshop. It can be
used for a variety of materials including lumber,
moldings, pipes, PVC, gutters, and more.
The T27630 provides 6 shelving levels. When
properly installed, each level has a maximum
weight capacity of up to 100 pounds. Always
ensure the rack is properly secured to the wall
by following all instructions. DO NOT exceed the
weight capacity listed.
Inventory
Description
A. Horizontal Bars ......................................... 12
B. Vertical Bars ............................................... 2
C. Phillips Head Screws M5-.8 x 16.............. 12
D. Spacers 1
⁄ " x ⁄
1 1
4
A
Figure 1. Inventory components.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
" ....................................... 6
2
B
C
D
COPYRIGHT © FEBRUARY, 2016 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#JH18019 PRINTED IN CHINA
MODEL T27630
6-SHELF SYSTEM
Installing Storage System
Find a location large enough to accompany the
material you wish to store. This storage system
must be secured to wall studs to support the load.
The storage system can be mounted to a vari-
ety of wall surfaces, including dry wall, masonry
walls, and steel-stud walls.
The assembled rack is 1
minimum anchor bolt size of 2
Note: The long vertical bars can be used as a
template for pre-drilling holes prior to assembling
the rack.
Qty
To install storage system:
1.
Locate small mounting hole ½-inch from
bottom of vertical bar (see Figure 2).
2.
Thread (1) M5-.8 x 16 Phillips head screw
fully into hole, and slide a horizontal bar (with
notch-side-down) down vertical bar until it
rests on screw (see Figure 2).
Figure 2. Horizontal bar sliding into place.
LUMBER RACK
INSTRUCTIONS
⁄ " thick and requires a
5
8
Notch
Screw
⁄ ".
3
4
V1.02.16
