Introduction

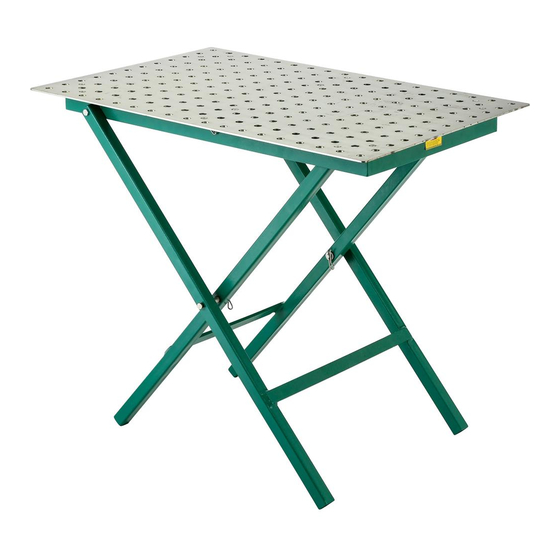

The T28931 Tilting Welding Table has a load
capacity of 350 lbs. The table surface has
holes spaced every 2" for welding operations.
The table collapses for storage when not in use.

Inventory

Description
A. Long Legs w/Extensions .....................1 Pair
B. Short Legs ...........................................1 Pair
C. Work Table w/Frame .................................. 1
D. Hairpin Cotter Pins ..................................... 4
E. Long Shaft Sleeves .................................... 2
F.
Flat Washers 10mm ................................... 2
G. Lower Hinge Pins 10 x 94mm .................... 2
H. Short Shaft Sleeves ................................... 2
I.
Upper Hinge Pins 8 x 68mm ...................... 2
J.
Flat Washers 8mm ..................................... 6
K. Hex Nuts M8-1.25 ....................................... 2
L. Hex Bolts M8-1.25 x 55 .............................. 2
A
D
E
F G H
Figure 1. T28931 inventory.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
B
C
I J K
COPYRIGHT © MARCH, 2020 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 12/18) #CS20332 PRINTED IN CHINA
36" X 24" TILTING WELDING

Specifications

Weight Capacity ......................................350 lbs.
⁄ " Work Table Size ....................................36" x 24"
5
8
Work Table Thickness ........................... 9 Gauge
Work Table Working Height ............................ 31"

Assembly

The T28931 Tilting Welding Table requires assem-
Qty bly before use.
To assemble tilting welding table:
1.
Use a non-flammable degreaser to remove
cosmoline from work table.
2.
Stand work table on long edge for assembly
(see Figure 2).
3.
Attach short legs to work table frame with (2)
M8-1.25 x 55 hex bolts, (4) 8mm flat washers,
and (2) M8-1.25 hex nuts (see Figure 2).
Work
Table
Frame
Short Legs
L
Figure 2. Short legs attached to work table
MODEL T28931
TABLE
INSTRUCTIONS
frame.
x 2
