- Page 1 4x1 VGA Switcher U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The 4x1 VGA Switcher is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Front Panel Descriptions Back Panel Descriptions How To Connect The 4x1 VGA Switcher System Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction

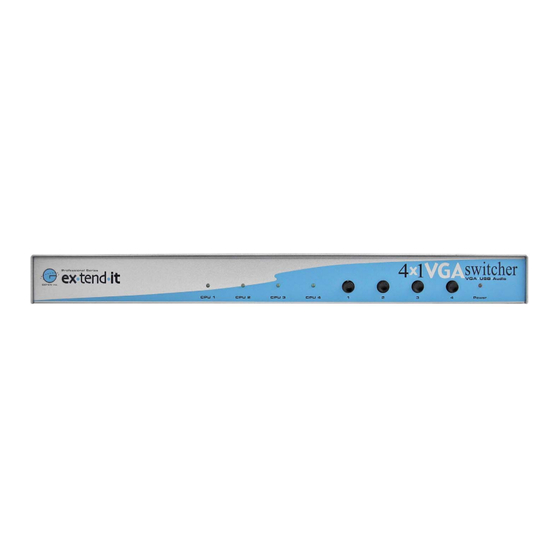

Thank you for purchasing Gefen’ s ex•tend•it 4x1 VGA Switcher series. The 4x1 VGA Switcher switches VGA, USB and audio between any combination of four computers. Now you can switch easily and reliably between any combination of four computers using one or two VGA displays, USB keyboard and mouse. -
Page 5: Front Panel Descriptions
FRONT PANEL DESCRIPTIONS... -
Page 6: Back Panel Descriptions
BACK PANEL DESCRIPTIONS... -
Page 7: How To Connect The 4X1 Vga Switcher
HOW TO CONNECT THE 4x1 VGA SWITCHER Connect your computers VGA, USB, and audio to the 4x1 VGA Switcher inputs using the supplied cables. Connect one or two VGA monitor to the VGA Out. If only one monitor is connect you must use VGA Out 1. - Page 8 SPECIFICATIONS Video Amplifi er Bandwidth ... 350 MHz Single Link Range ... 1920 x 1200 Vertical Frequency Range ... 60-80 Hz DVI Input/Output Connector Type ... DVI-A USB Input Connector ... Type “B” USB Output Connector ... Type “A” Power Consumption ... 18 Watts (max.) Power Supply ...
-
Page 9: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
