Valcom VIP-848A Quick Start Manual

Networked Input & Relay Module
INTRODUCTION

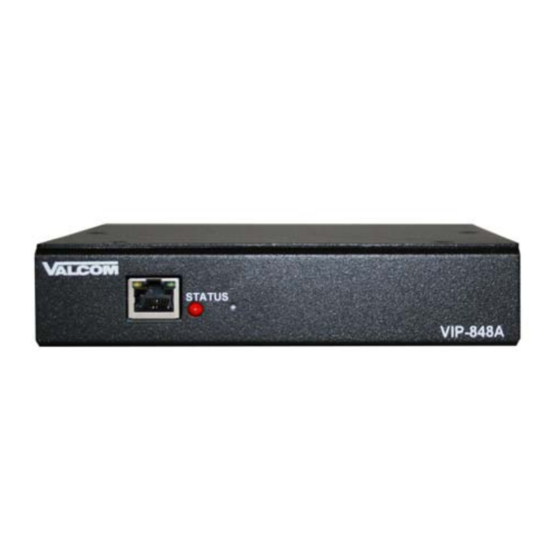

The VIP-848A Networked Input & Relay Module
allows passing of contact closures, which are
software programmable to be either Form A or
Form B, over an IP-based LAN/WAN. Multiple
VIP-848A Networked Input & Relay Modules can
be used on the same network to create very large
and distributed systems.
SPECIFICATIONS
Features

8 Relay Contacts That Are Programmable To
Form A or Form B

8 Contact Closure Inputs

RJ-45 For Network Connection

Front Panel Activity LED

Removable Connector Provided For Input And
Relay Interface

2.5mm Jack For DC Power

Power Over Ethernet (PoE) 802.3af
Compliant

No Server Required

1 to 11 Digit Dial Plans

Easy Windows Based Setup
Dimensions/Weight

1.50" H x 6.19" W x 5.88" D
(3.81cm H x 15.72cm W x 14.94cm D)

Weight: 1.00 lbs. (0.45 kg)
VIP-848A
Nominal Specifications
Input Impedance:
Relay Current:
Nominal Power Requirements
Via Back Panel Barrel Connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:
Packing List
Qty
1
1
2
4
1
Issue 5
10k Ohms
1 AMP @ 24VDC
24VDC
325mA
Class 3
+32 to +104°F (0 to +40°C)
0 to 85% Non-Precipitating
Item
VIP-848A
VSP Document
Mounting Brackets
Rubber Pads
947645
